FT-2980R VHF 136-174MHz FM Transceiver 60W Mobile Radio for YAESU + HH-9000 HF Mobile Antenna and Bracket

FT-2980R VHF 136-174MHz FM Transceiver 60W Mobile Radio for YAESU + HH-9000 HF Mobile Antenna and Bracket

Transceiver Parameters:
- Product model: FT-2980R
- Frequency range: Tx 136-174MHz; Rx 136-174MHz
- Launch mode: F2D/F3E
- Power supply voltage: 13.8VDC±15%. The negative pole is grounded
- Current consumption (typical): Rx: less than 0.7A, less than 0.3A (noise)
- Case size: 165 x 185 x 50mm/6.5 x 7.3 x 2" (without the sizes of knob)
- Operating temperature range: -20℃ to +60℃
- Channel step length: 5/10/12.5/15/20/25/50/100KHz
- N.W.: approx. 1.9kg/4.2 lb
- Occupied broadband: ≤ 16KHz
- Spurious emission limit: ≤ -7.5μw
- Stray radiation: better than -60dB
- Number of channels: 200
- Output power: 60W/30W/10W/5W
- Antenna interface: M type
- Circuit type: two-stage variable frequency superheterodyne
- Output power: better than ±10 (-20℃ to +60℃)
- Antenna impedance: 50ohms, unbalanced resistance
- Channel step length: 5/10/12.5/15/20/25/50/100KHz

Functions:
- Adopting for YAESU famous advanced tracking tuner
- Effectively avoid modulation distortion inside the receiver
- All-around multi-format scanning function
- Smart search function
- Excellent reception performance
- RF Squelch丨Timeout Timer
- Voltage display
- Dual frequency monitoring
- Automatic shut-down
- Busy channel lock
- Weather alert channel scanning function (North American version only)
- Built-in CTCSS and DCS encoding and decoding functions
- Input the operating frequency directly through the keyboard of the microphone
- Wide/narrow resolution selection
- Interactive editing menu
- 4-level backlight adjustment
- Lock function
- Password function
- DTMF function

Features:
- Password function. Prevent others from using your walkie-talkie without permission.
- Dot-matrix high-definition LCD screen fully displays information, and subtitles are clearly visible.
- Copy data. The storage and configuration data in one FT-2980R can be transferred to another FT-2980R. It will play an important role when configuring multiple radio stations for public service operations.
- Handheld microphone is convenient for manual tuning.
- Through the numeric keyboard, you can directly input the operating frequency, getting rid of the cumbersome computer writing frequency.
- Programmable buttons. Custom buttons for quick and easy access to frequently used functions
- DC heat sink ensures the normal operation of the radio, making it more reliable and stable.
- Automatic power off. The APO function of the radio station will completely shut down the radio station when there is no operation on the PTT or other buttons/switches of the radio station within a user-defined time. It saves power.

More Details:
- Rubber buttons. Comfortable to use. Full of flexibility, good durability and more convenient operation.
- Thick wear-resistant material. High-quality plastic, wear-resistant, drop-proof, odorless, high temperature resistant.
- Dot-matrix high-definition LCD screen displays information, and subtitles are clearly visible.
- Special metal antenna interface makes it not easy to rust and durable.

HH-9000 Specifications:
- Brand new & high quality
- Model: HH-9000
- Band: quad-band
- Frequency: 29.6/50.5/144/435MHz
- Gain: 2.15/2.15/3.0/5.5dBi
- Max power: 60W
- VSWR: less than 1.5
- Impedance: 50ohms
- Connector: SL16 male
- Polarization: vertical
- Radiation: Omni
- Radiating element material: stainless steel
- Length: about 127cm/4.2ft

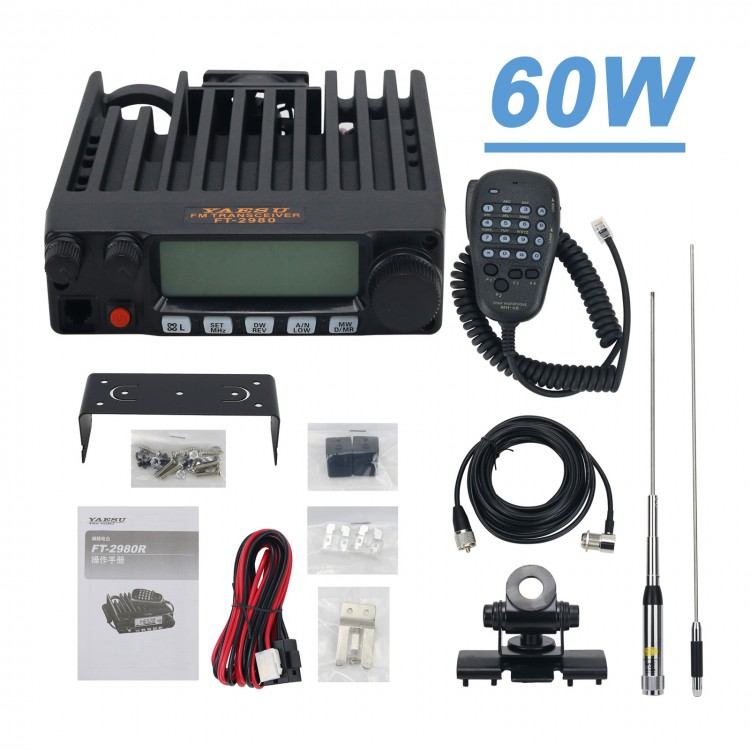

Package Included:
- 1 x Transceiver FT-2980R
- 1 x Handheld Microphone
- 1 x Antenna Feeder
- 1 x Clip Bracket
- 1 x Accessory Pack
- 1 x User Manual
