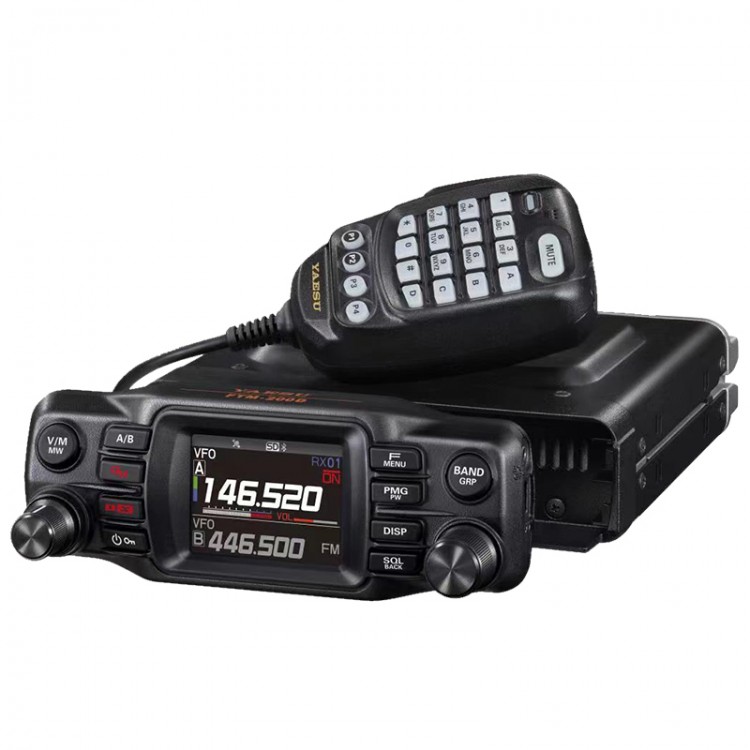

FTM-200DR 50W VHF UHF Mobile Radio Dual Band Transceiver with GPS High-Resolution Color Screen

FTM-200DR 50W VHF UHF Mobile Radio Dual Band Transceiver with GPS High-Resolution Color Screen

Description:
The new FTM-200DR is a C4FM Digital multi-functional transceiver with a single receiver. The FTM-200DR delivers reliable and stable 50W transmit performance. The heavy-duty heat sink is equipped with FACC (Funnel Air[1]Convection Conductor). The speaker delivers 3W of clear and crisp receive audio which has been specifically tuned for radio communication. 2-inch Full-color display provides high visibility and highlights the frequency of the operating band with selectable color – White, Blue or Red. Front panel of the FTM-200DR is detachable and can be mounted at the most desirable operating position. The new FTM-200DR supports optional Bluetooth wireless operation using the SSM-BT10 Headset or a commercially available Bluetooth headset*.

PMG (Primary Memory Group) function for YAESU in the FTM-200DR allows PMG-SR Monitor (Primary Memory Group with a Single Receiver). The display frequency can register up to 5 PMG channels, regardless of the VFO or Memory channel operation. AUTOMATIC or MANUAL mode can be selected**.

1104 Memory channels can be programmed with 16-character alpha-numeric tags. The MAG (Memory Automatic Grouping) function allows memory channels to be automatically categorized in each band, ALL, AIR, VHF, UHF and OTHER.

The C4FM digital communication features which are already popular in the market, such as Automatic Mode Select (AMS), Digital Group ID (DG-ID) operation, and Smart Navigation Function are available with the new FTM[1]200DR. The FTM-200DR supports the Worldwide WIRES-X Internet Communication. A Fixed Node using an HRI[1]200, or a Portable Digital Node can be easily set up with the optional SCU-40 cable kit.

New Custom Function List (CFL) of the FTM-200DR quickly recalls a list of frequently used functions by simply pressing the [F Menu] key. 10 functions are listed by default, and up to 8 functions can be customized from the 124 items of the setup menu.

Some additional features of the FTM-200DR are:
- Wide-range 108MHz to 999.995MHz receive coverage
- High speed Band Scope (displays the receive status of up to 61 channels centered on the current VFO frequency or up to 21 channels in Memory Mode)
- VFO Band Skip Function
- High-precision 66 channel GPS Receiver
- 1200/9600bps Data Communication for APRS
- VOX function
- Recording Function
- Snapshot Feature (when used with MH-85A11U)
- MicroSD Card Slot

Specifications:
- Frequency range: Transmit: 144-148MHz 430-440MHz; Receive: 108-137MHz 137-174MHz 174-400MHz 400-480MHz
- Transmit power: 50W/25W/5W
- Number of channels: 1104
- Transmitting Type: F1D, F2D, F3E, F7W
- Modulation Type: F1D, F2D, F3E: Variable Reactance Modulation F7W: 4FSK(C4FM)
- Frequency Stability: ±2.5ppm (-20°C to +60°C)
- Channel Steps: 5, 6.25, (8.33) , 10, 12.5, 15, 20, 25, 50, 100kHz (8.33kHz only for air band)
- Circuit Type: Double Conversion Super Heterodyne
- Operating temperature: -20°C to +60°C
- Supply Voltage: Nominal 13.8V DC Negative Ground
- Current Consumption: 0.5A (Receive); 11A (50W TX, 144MHz); 11A (50W TX, 430MHz)
- Maximum deviation: ±5kHz
- Spurious emissions: at least 60dB
- Microphone Impedance: 2kΩ
- Data interface impedance: 10kΩ
- Shell size: main unit 139 x 42 x 132mm/5.5 x 1.7 x 5.2" (without fan); control panel 139 x 53 x 18mm/5.5 x 2.1 x 0.7" (without knob)
- Weight: 1.1KG/2.4LB

Package Included:
- 1 x Transceiver Host
- 1 x Control Panel
- 1 x Control Cable
