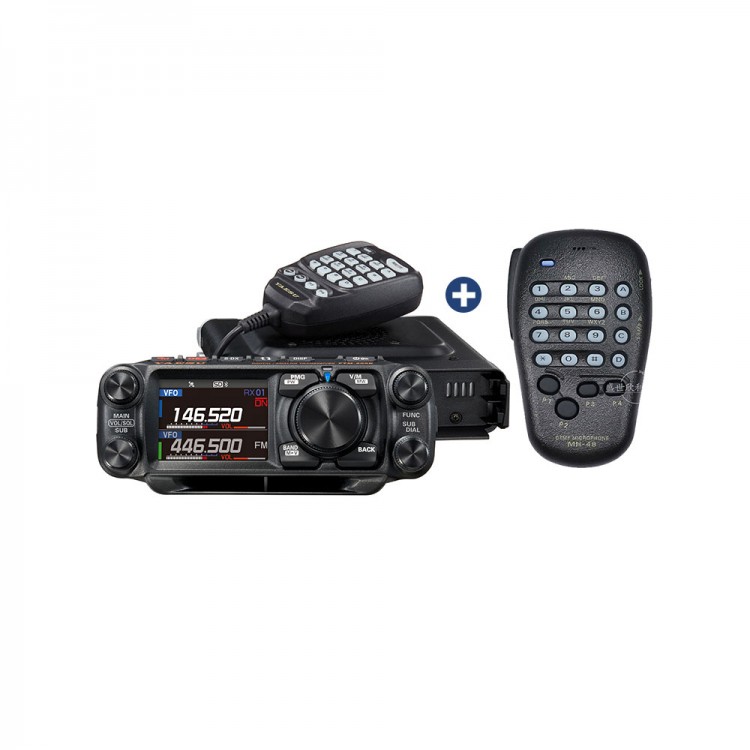

FTM-510DR ASP Digital FM VHF UHF Dual Band Mobile Transceiver with Bluetooth Handheld Microphone Support Auto/Manual Modes

FTM-510DR ASP Digital FM VHF UHF Dual Band Mobile Transceiver with Bluetooth Handheld Microphone Support Auto/Manual Modes

Description:
- The FTM-510DR/E ASP shares the core feature set of the FTM-500DR with an enhanced new Super-DX and ASP (Audio Digital Signal Processor Unit).

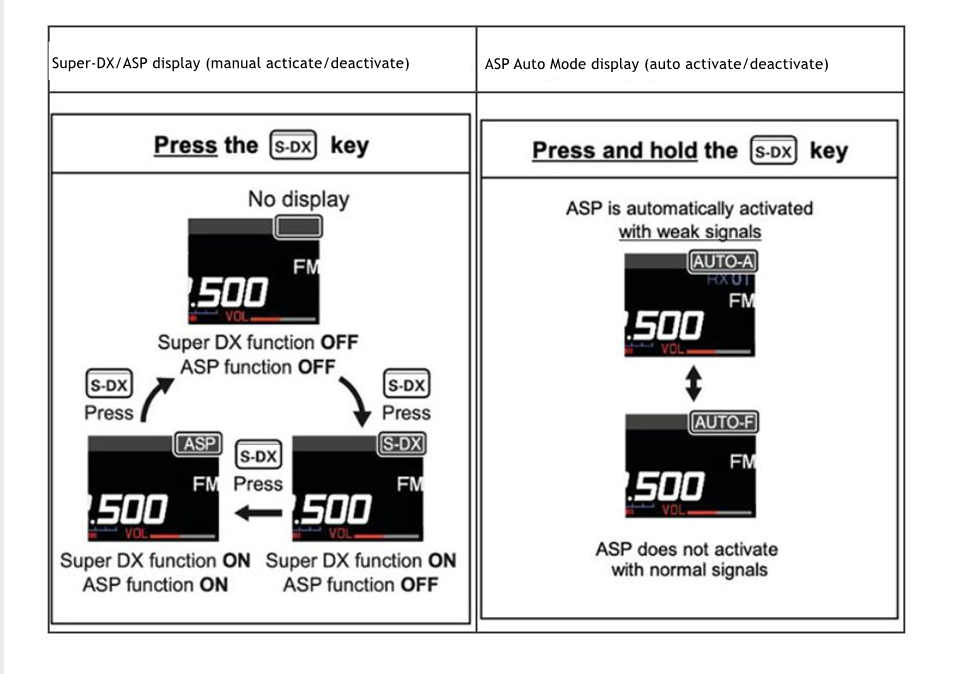

- Super-DX: When the received signal is weak, the sensitivity of the RF amplifier can be increased by activating the Super-DX function in both C4FM digital/ FM analog modes.
- ASP (Audio Digital Signal Processor): When operating in FM analog mode, the ASP can also be activated in addition to the Super-DX. By digitally processing the received FM audio to remove noise, the ASP ensures reliable and comfortable audio quality for weak signals. This helps to expand the communication range.
- For intuitive and effortless operation, the PMG and MAG functions of the FTM-510DR ASP have been improved.

- PMG (Primary Memory Group): up to 5 VFO or memory channel frequencies can be assigned to the PMG (Primary Memory Group) and monitored. The reception status of the PMG channels is displayed with an orange/ gray-colored bar graph in the PMG screen. When a signal disappears, the bar graph color changes from orange to gray in real time. With the FTM-510DR ASP, the gray bar graphs (historical received signals) automatically fade out 2 seconds after a signal is lost.  With the FTM-500DR, the gray bar graphs remain until they are manually reset by pressing the DIAL knob.

- Other practical differences of the PMG function between the FTM-510DR ASP and the FTM-500DR are: Updated PMG in the FTM-510DR ASP

AUTO Mode:
- The PMG channel manually selected to transmit is always scanned and received. Other PMG channels are also scanned and a channel with a signal can be received and heard at the same time.
- The transmit channel is selectable by rotating the DIAL knob in the PMG screen.

MANUAL Mode:
- The PMG channel manually selected to transmit is always scanned and received. Other PMG channels are also scanned and shown in bar graph on display, but audio does not heard.
- The transmit channel is selectable by rotating the DIAL knob in the PMG screen.

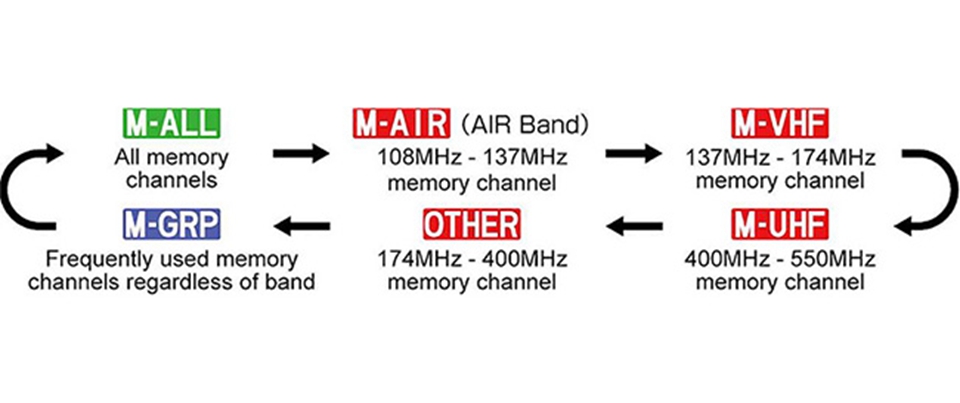

MAG (Memory Auto Grouping):
- In addition to Memory channels which can be recalled by each band, the FTM-510DR ASP has the new “My Group” feature which permits selection of any memory channel regardless of band.

- For the current FTM-500DR users, the updated PMG function and “My Group” in MAG feature will be available by updating the firmware if it is preferable. The applicable firmware will be released by the end of February 2025.

- The FTM-510DR ASP does not include the built-in Bluetooth unit. By installing the optional Bluetooth unit – BU-5, hands-free operation is available with the SSM-BT20 or a commercially available Bluetooth product.

Specification:
- Frequency range:
  Transmitting: 144 - 148MHz or 430 - 440MHz
  Receiving: 108 - 137MHz (aviation band); 137 - 174MHz (144MHz amateur/VHF band); 174 - 400MHz; 400 - 480MHz (430MHz amateur/UHF band); 480 - 550MHz
- Channel step: 5/6.25/8.33/10/12.5/15/20/25/50/100kHz (8.33kHz: for aviation band only)
- Transmitting mode: F1D, F2D, F3E, F7W
- Frequency stability: ±2.5ppm (-20℃ to +60℃)
- Antenna impedance: 50ohms
- Power supply voltage: rated value 13.8VDC, negative connecting to GND
- Current consumption: about 0.5A (receiving); 11A (55W transmitting, 144MHz); 10A (50W transmitting, 430MHz)
- Working temperature range: -20℃ to +60℃

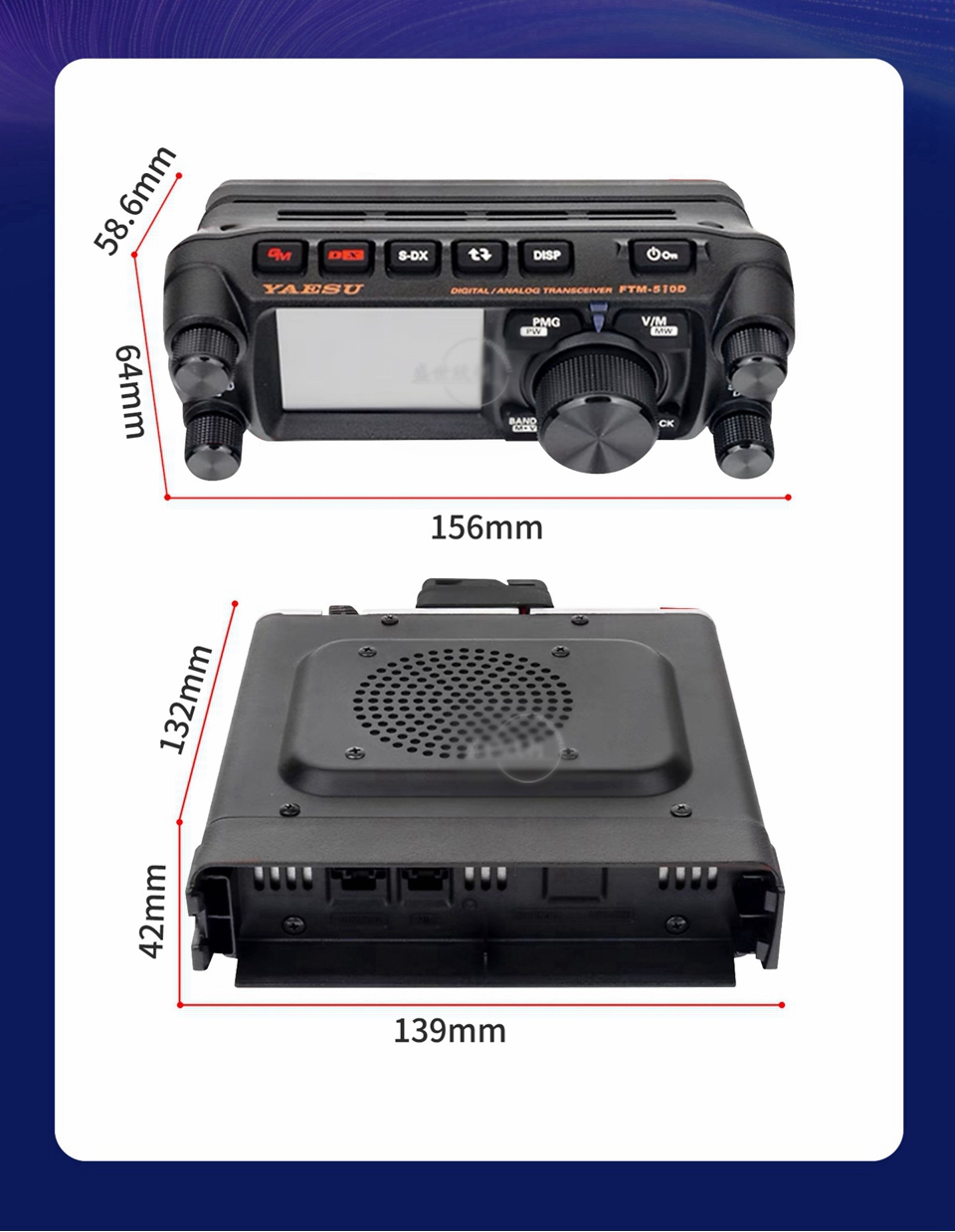

- Product size:
  Host: 139 x 42 x 132mm (excluding the fan size)
  Controller: 156 x 64 x 58.6mm (excluding the knob size)
- Net weight: about 1.4kg (including host, controller, control cable weight)

Transmitting:
- RF output power: 55W (144MHz), 50W (430MHz)/25W/5W
- Modulation type:
  F1D, F2D, F3E: variable impedance modulation
  F7W: 4FSK (C4FM)
- Maximum frequency offset: ±5kHz
- Stray radiation: at least lower than 60dB
- Microphone impedance: 2kohms
- DATA insertion hole impedance: 10kohms

Receiving:
- Circuit type: double superheterodyne
- Mid frequency:
  First: 56.75MHz; second: 450kHz (main frequency band)
  First: 55.85MHz; second: 450kHz (secondary frequency band)
- Sensitivity:
  0.8μV TYP: for 10dB SN (108-137MHz, @AM)
  0.2μV: for 12dB SINAD (137-150MHz, @FM)
  0.25μV: for 12dBSINAD (150-174MHz, @FM)
  0.3μV TYP: for 12dB SINAD (174-222MHz, @FM)
  0.25μV TYP: 12dB SINAD (222-300MHz, @FM)
  0.8μV TYP: 10dBSN (300- 336MHz, @AM)
  0.25μV TYP: 12dB SINAD (336-420MHz, @FM)
  0.2μV: for 12dB SINAD (420-470MHz, @FM)
  0.2μV TYP: 12dB SINAD (470-550MHz, @FM)
  0.19μV TYP: BER 1% (digital mode)
- Selectivity: NFM, AM 12kHz / 30kHz (-6dB/-60dB)
- AF output: 6W (8Ω, THD10%, 13.8V) for front panel speakers; 3W (8Ω, THD10%, 13.8V) for built-in speakers; 3W (8Ω, THD10%, 13.8V) for external speakers
- AF output impedance: 8Ω
- Secondary radio wave intensity: 4nW and below

Package Included:
- 1 x Transceiver
- 1 x SSM-85D Microphone
- 1 x Mounting Bracket
- 1 x 3-meter Power Cable
- 1 x Screw Pack
- 1 x Handheld Microphone Hook
