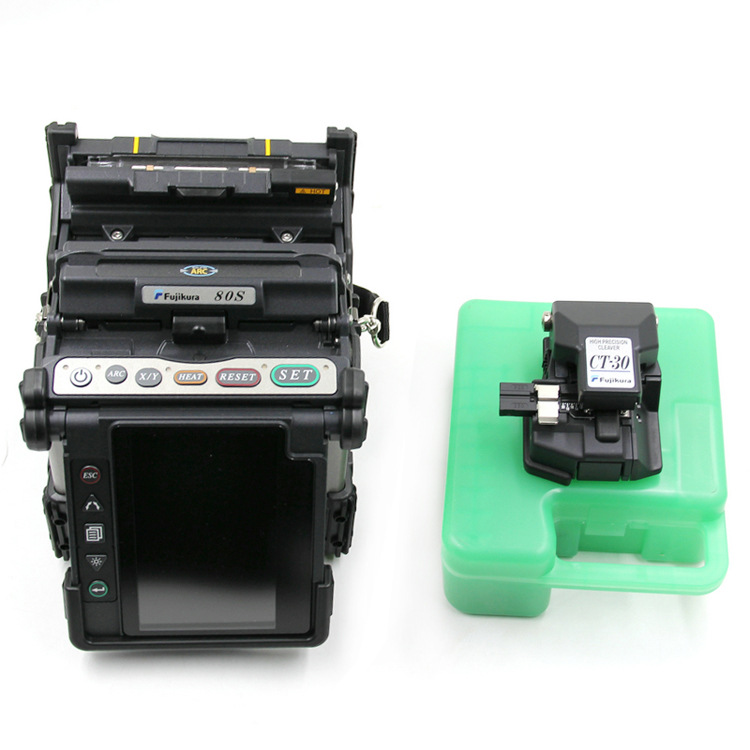

Fujikura 80S Fiber Optic Fusion Splicer Kit for SM MM DSF NZDSF Fibers PON/FTTx

Fujikura 80S Fiber Optic Fusion Splicer Kit for SM MM DSF NZDSF Fibers PON/FTTx

Description:
- Fujikura 80S Fusion Splicer is core-to-core alignment single fiber splicer, which is designed for splicing single-count optical fibers: SM (G.652/657), MM (G.651), DSF (G.653), NZDSF (G.655) for telecommunication use, PON/FTTx networks, etc.

- Fujikura 80S model is successor of the famous series of splicers: Fujikura FSM-60S and FSM-50S. The new design streamlines the steps required to complete splices, resulting in greater productivity. "Configurable automation" features allow you to customize the operation of the machine to best suit your particular splicing technique and process. Splicing takes only 7 seconds, and heating takes only 14 seconds.

- The device is optimized for splicing under severe weather conditions, it is protected from stress and shock. It may be powered from 200 V AC, or using a battery (included). For user comfort the package contains a convenient working table, where you may place the needed tools: a cleaver, a stripper, sleeves, etc.

Features
- Splices all known types of fibers.
- Fiber core alignment.
- Typical average splice loss for single mode cable with G.652D fiber is only 0.02 dB.
- Reduced splicing time – 7 seconds only.
- Heating time – 14 seconds only.
-  Increased electrode lifetime – up to 3000 splicing cucles with one set, without splicing quality loss.
- Battery life increased up to 200 full splicing/heating cycles.
 - Rotary color anti-glare LCD 4.73", high contrast and vividness.
- Simultaneous display of X and Y axes.
- May splice SC, LC, MPO connectors.
- Automatic: wind-protective lid, heater, fiber holders.
-  Increased water, dust and shock resistance, may be used under severe environment conditions.
- Automatic arc calibration.
- Battery BTR-09 is included.
- New comfortable carrying case, optimized for quick operation start.
- The case may be used as a working table.
- Operation manual is installed into the splicer.
- 2 years of full warranty with the device replacement.

Specification:
Splicing / Heating Typical Splicing Time 7 sec (for SM) Typical Heating Time 14 sec (for 60 mm sleeves) Applicable Fibers SMF (ITU-T G.652)
MMF (ITU-T G.651)
DSF (ITU-T G.653)
NZDSF (ITU-TG.655)
CSF (ITU-T G.654)
Fiber with low sensitivity to bends (ITU-T G.657)
Erbium-doped fiber Cladding Diameter 80 μm – 150 μm Coating Diameter 100 μm – 1,000 μm Fiber Cleave Length 5 – 16 mm Typical Average Splice Loss 0,02 dB (SMF)
0,01 dB (mmF)
0,04 dB (DSF)
0,04 dB (NZDSF) Splice Loss Estimate core
angular offset
fiber deformation Return Loss ≤60 dB Compatible Protection Sleeves 60 mm
40 mm
micro Splicing Modes 100 user programmable Heating Modes 30 (10 preset + 20 user programmable) Internal Memory up to 2000 splice results and parameters Additional Options Mechanical Proof Test stretching force 1.96 – 2.25 N Electrodes lifetime 3000 cycles External Interfaces USB 1.1, Mini-DIN Data Display Screen type rotary anti-glare LCD Screen Size 4.73" Colour Yes Viewing Yes (2 CMOS cameras) Magnification х200 Power Supply Adapter ADC-19 220 V AC Battery BTR-09 4000 mAh Battery Cycles up to 200 splicing/heating cycles Operation Conditions Temperature –10 ~ +50°C Altitude above sea level 0 ~ 5000 m RH 0 ~ 95% Max. wind velocity 34 mph / 15 m/s Storage Conditions Temperature –40 ~ +80 °C RH 0 ~ 95% Protection Shock Resistance height: 76 cm, any surface Dust Resistance dust particles from 0.1 to 500 μm Rain Resistance 10 mm/h for 10 min Dimensions & Weight Width 150 mm Length 159 mm Height 146 mm Weight 2,5 kg (with adapter ADC-18)
2,7 kg (with battery BTR-09)

Package Contents
- Fusion Splicer Fujikura 80S — 1 pc.
- Detachable Battery BTR-09 — 1 pc.
- Battery charge cord DCC-18 — 1 pc.
- Power adapter/Charger adapter ADC-18 — 1 pc.
- Power cord ACC-15 — 1 pc.
- Spare electrodes ELCT2-20A — 1 pair
- USB cable USB-01 — 1 pc.
- Sleeve loader SL-01 — 1 pc.
- Alcohol dispenser AP-01 — 1 pc.
- Screwdriver SC-01 — 1 pc.
- CD with Data Connection Software and Video Instruction Manual — 1 pc.
- Short guide — 1 pc.
- Warranty service coupon for 2 years of full warranty with the device replacement — 1 pc.
- Carrying case CC-30 — 1 pc.
