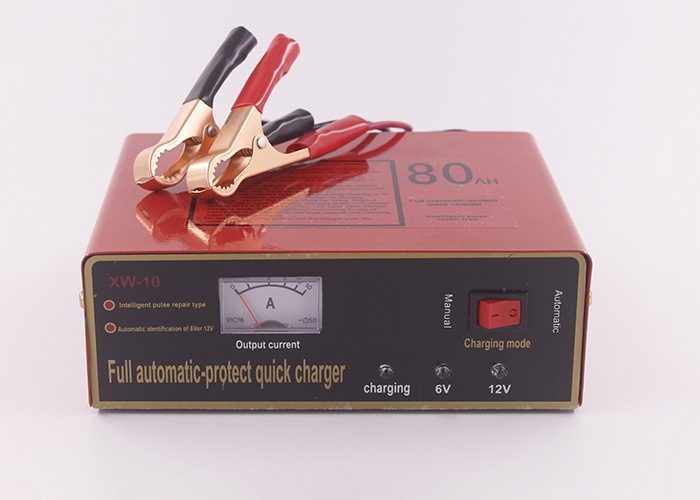

Full Automatic Intelligent Battery Charger Negative Pulse Dry Wet Quick Charger 6V/12V 6AH-80AH XW-10

Full Automatic Intelligent Battery Charger Negative Pulse Dry Wet Quick Charger 6V/12V 6AH-80AH XW-10

Advantage:

- There has strong fan,the speed can be 4500/min;
- Stable performance,stopped automatic when charge full,pulse auto revive and maintenance battery;
- Overheating protection:when the temperature of charger is over 105 ° C,the charger will stop working,when the temperature reduce to 80° C or turn off the power 10 minutes the charger can work again;Short circuit protection:when there has short circuit the charger stopped output and has a beep alert;
- When the battery single cell voltage is lower than 1.5V the charger can’t start and has a beeb alert,avoid damage battery;
- When the polarity of charger is adverse with battery,the charger will close automatic and has beeb alert.

Multiple protection:
1.Overheat protection
2.Short circuit protection
3.Reverse polarity protection
4.Low voltage protection

Specification:
- Input voltage AC: 220V
- Output voltage:for 220V:6V/12V for 110v:12V
- Current:10A peak
- Capatity: 6-80ah
- Product Model: XW-10
- Actual power: 120W
- Voltage range: 110V-250V (110V please contact customer service)
- Product specifications: 175mm × 138mm × 58mm
- Power cord length: 120CM
- Clip connection length: 60CM
- Operating frequency: 50-60HZ
- Weight:0.9kg

6AH-80AH storage battery used
6V/12V recognized automatically

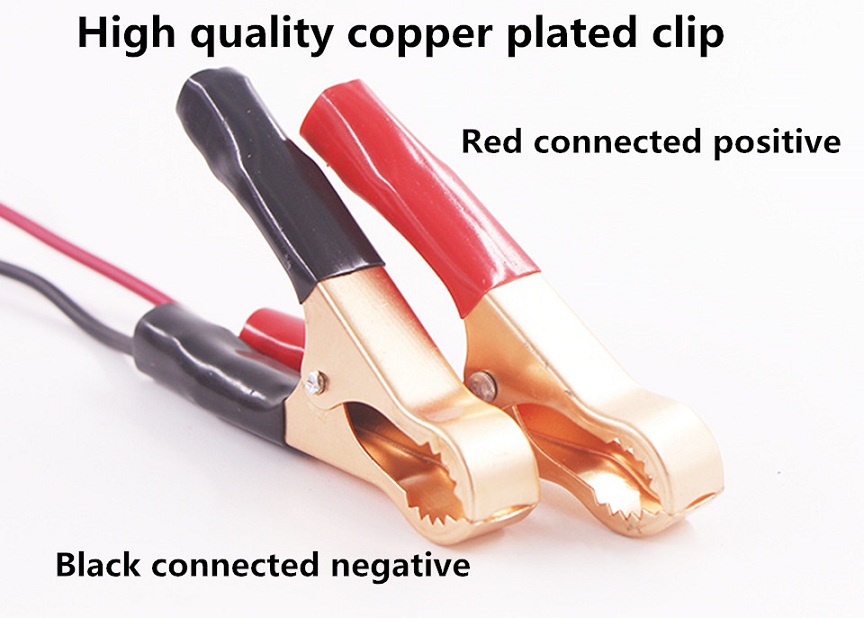

High quality copper plated clip:red connected positive;black connected negative
Efficient intelligent cooling outlet
EU/US plug (optional)

We are fully automatic fast charger charging working mode constant current - constant pressure - trickle
- For 12V battery,the actual output current is about 8.5A.
- For 6V battery,the actual output current is about 5A.
The actual current should be charged with constant current and constant voltage depending on the demand of the battery. When charging is complete, automatic constant pressure automatically stop,change to tiny stream flow,now the constant current is about 0.2A.

Note:The actual current to the battery according to the demand for constant current constant voltage charging.
Charging automatically when the automatic constant pressure from the stop, converted into trickle float mode

The charging time for different battery:(Actual charge completion time, depending on the true capacity of the battery)
6.5A battery ~ 2 - 4 hours
9A battery ~ 3 - 5 hours
10A battery ~ 4 - 6 hours
20A battery ~ 5 - 8 hours
32A battery ~ 6 - 12 hours
36A battery ~ 8 - 13 hours
45A battery ~ 9 - 15 hours
55A battery ~ 11 - 16 hours
60A battery ~ 13 - 19 hours
80A battery ~ 15 - 22 hours

Charging operation:
Step 1: Check whether the rated voltage of the battery to be charged and the output voltage of the charger match.
Step 2: Connect the charger and the battery to be charged correctly.
Step 3: Check the mains voltage and charger rated input voltage is consistent.
Step 4: Connect the mains and connect the battery, observe the indicator light is bright,when the cooling fan is working.
Step 5: If the charger does not work properly, please disconnect the mains and check the mains, the battery and all the connections.

Package Included:
- 1 x XW-10 6V/12V 80AH Car Battery Charger
- 1 x Manual
