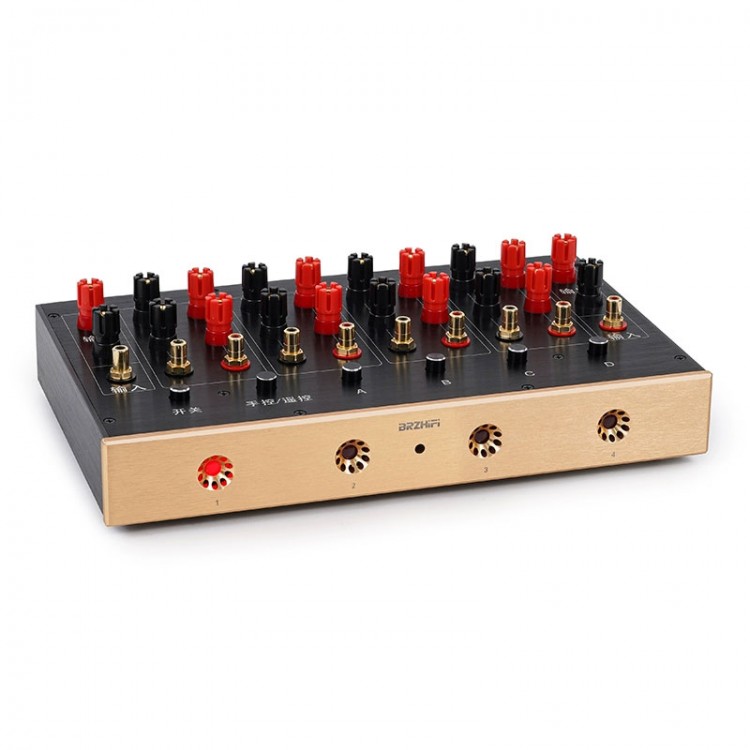

FV6 Multifunctional RCA 4-Channel Audio Switcher Lossless Switching with Power Adapter and Remote Control

FV6 Multifunctional RCA 4-Channel Audio Switcher Lossless Switching with Power Adapter and Remote Control

Features:
- Support bi-directional signal transmission
- Lossless switch without shock sound
- Mechanical button switch
- Full aluminum alloy
- Wireless remote control switch
- One machine with multiple functions, you can enjoy a high-quality music experience by lossless switching between manual/remote control with high-quality RCA socket, speaker wiring terminals.
- When using different devices, it supports 4 inputs and selects 1 output. (Or 1 input selection, select 1 output out of 4 channels).
- The power amplifier group of this machine uses for Omron fully sealed high current relay as the core device, which is not afraid of contact ignition and oxidation, and has a lifespan several times that of ordinary relays.
- High quality socket, not easily worn; metal jack for more stable transmission and conduction; channel selection indicator, easy to use.
- Application: recording studio, DJ mixer, household, audition room, etc.

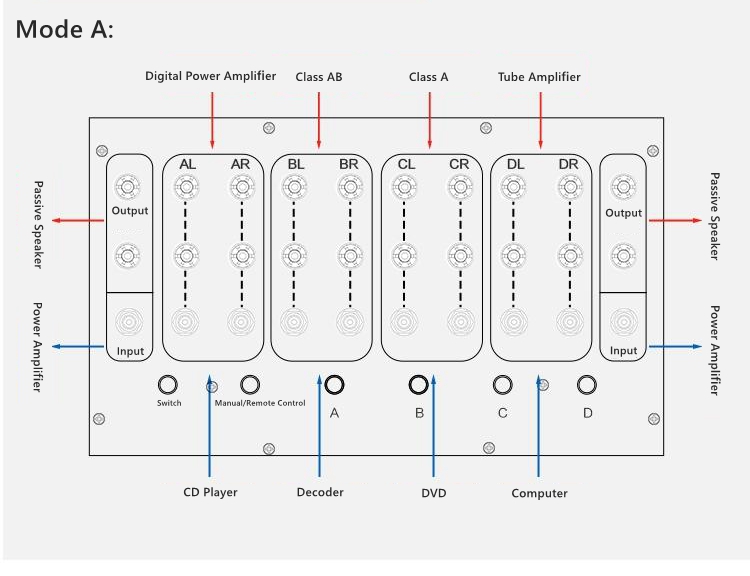

Mode A (4 In and 1 Out):
- For power amplifier: the device (such as digital power amplifier, Class AB, Class A, electronic tube amplifier, etc.) is connected to the ABCD port, and the output port is connected to a passive speaker.
- For audio devices: connect the device (such as CD player, decoder, DVD, computer, etc.) to the ABCD port; Input is connected to devices such as power amplifiers/active speakers.

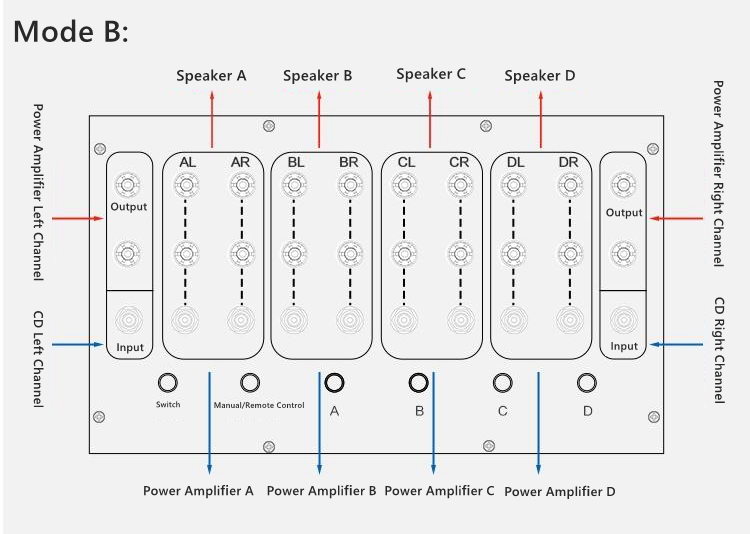

Mode B (1 In and 4 Out; choose 1 output from 4 outputs):
- For power amplifier: the device (such as power amplifier) is connected to the output port, and the ABCD port is connected to the speaker.
- For audio devices: connect the device (such as CD player) to the input port; ABCD is connected to devices such as power amplifiers.
- Precaution:
  The power amplifier group and signal group are completely independent and can be used separately.
  Please be careful not to drive the tube amplifier with no load when using it. Switch to the corresponding channel before turning on the machine.
  Multiple sets of outputs cannot be simultaneously connected, you can only choose one channel to output.

Specification:
- Model: FV6
- Power amplifier/speaker connection number: stereo 4 groups
- Maximum power: 300W/channel
- Supported power amplifier type: all kinds of power amplifier, include BTL, class A, class B, class D digital power amplifier, tube amplifier
- Remote control function: support
- Working mode: 4 In 1 Out; 1 In 4 Out (choose 1 output from 4 outputs)
- Power interface specification: DC5.5 x 2.5mm
- Working voltage: DC 12V 1A above

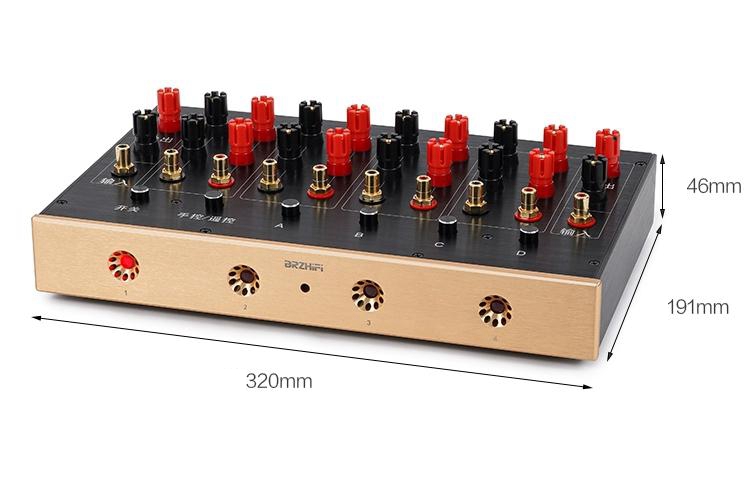

- Product size: L x W x H = 32 x 19.1 x 4.6cm
- Weight: 1.74kg

Package Included:
- 1 x Host
- 1 x Power Adapter
- 1 x Remote Control
