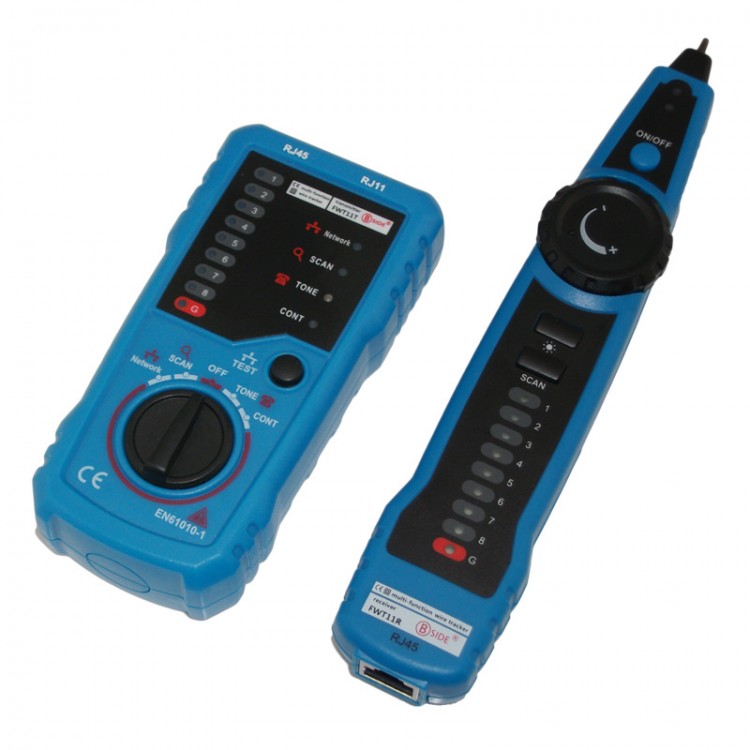

FWT11 RJ11 RJ45 Telephone Wire Tracker Tracer Toner Ethernet LAN Network Tester

FWT11 RJ11 RJ45 Telephone Wire Tracker Tracer Toner Ethernet LAN Network Cable Tester Detector Line Finder Continuity Check

This instrument is a multi-functional handheld cable testing tool.
It has wide application with reinforced cable types and multiple functions.
A necessary testing tool for telecommunication engineering, wiring engineering and network maintenance person.

Main Functions:

Work prefect when RJ11 RJ45 cable is on power.
Wire Tracing: Trace RJ11, RJ45, cables or other metal wire (via adapter).
Easy and fast to locate the breakpoint without opening the wire’s cover.

Network cable collation: Judge short-circuit, breaking circuit, open circuit and crossing.
Test line level, positive and negative polarity.
Status of telephone line checking: Test the working status of telephone line (idle, ringing, and off-hook) and judge TIP and RING line.
Check wire continuity.

Specification:
- Operating temperature: 0°C ~ 40°C, maximal 80% relative humidity (non-condensing)
- Storage temperature: -10~50°C, maximal 80% relative humidity (non-condensing)
- Altitude: <2000m( meter)
- Anti-explosion rating: IP 40
- Distance of emitting signal: about 300m.
- Emitter Battery: 6F22/9V
- Receiver Battery: 6F22/9V

Package Included:
- 1 x FWT11 Emitter
- 1 x FWT11 Receiver
- 1 x Clip adapter cable
- 1 x RJ45 adapter cable
- 1 x English User Manual

Warm Tips:
Battery no included, it need two pieces 9V for work.
