Product parameters:
- RCA line output: 0.9vrms
- Signal to noise ratio: 98db
- Distortion: 0.3%
- Tweeter adjustment range: +- 6db
- Bass adjustment range: +- 10db
- Frequency response: 20Hz-20KHz
- Power supply: DC12V

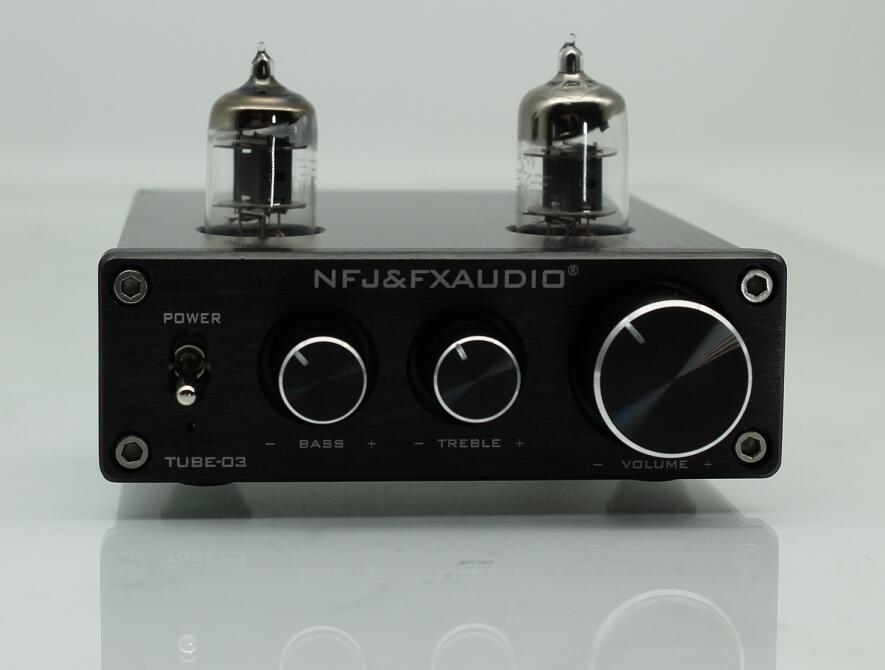

This liting is for Tube-03
| Model | Tube-01 | Tube-03 | Tube-P1 |
|---|---|---|---|
| Channels | 2 (2.0) | 2 (2.0) | To be announced |
| Power | 2000 mW | 4Ω 70W | 8Ω 35W | 2.5 W+2.5W |
| Impedance | 600R | 4, 6, 8 Ohm | To be announced |
| Frequency Response | 20Hz(-0.2dB) ~ 20kHz(-0.2dB) | 20Hz(-0.2dB) ~ 20kHz(-0.2dB) | To be announced |
| SNR* | 100 dB | 98 dB | To be announced |
| Input Sensivity | 300 mV ~ 2000 mV | 300 mV ~ 2000 mV | To be announced |
| Output Sensivity | 3000 mV | 2000 mV | To be announced |
| THD* | 1000 mV 0.1% | 0.3% | To be announced |
| Vacuum Tube | 6J1 | 6J1 | 6J1 + 6P1 |

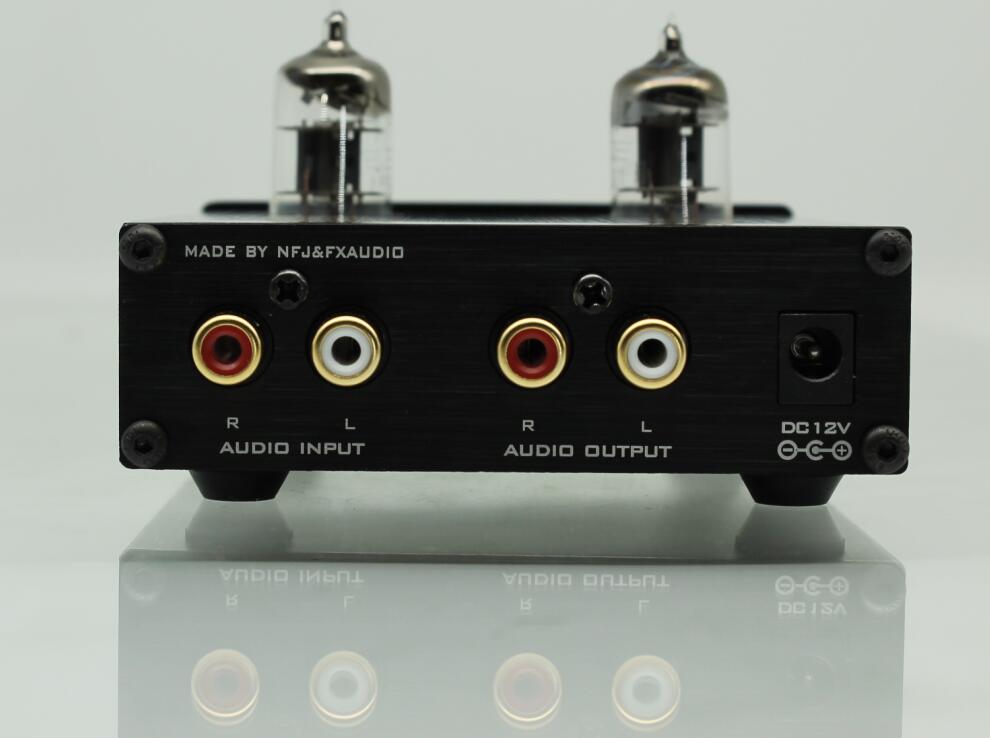

| Interface Input | 2 x Gold Plated RCA | 2 x Gold Plated RCA | 2 x Gold Plated RCA |
| Phono (MM) | |||
| Interface Output | 2 x Gold Plated RCA | 2 x Gold Plated RCA | 2 x Gold Plated RCA |
| Speaker (4Ω/8Ω) | |||
| Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Gold Plated Interface | Gold Plated Interface | Gold Plated Interface | |

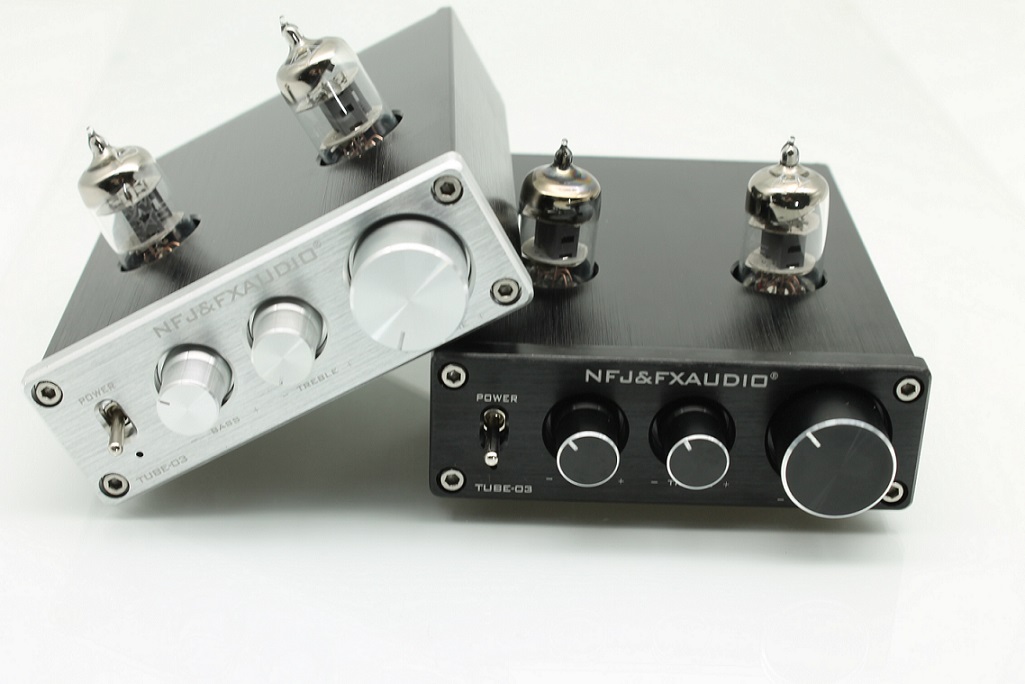

| Color | Black (Optional) | Black (Optional) | Black |
| Silver (Optional) | Silver (Optional) | ||
| Operation | Power Switch | Power Switch | Power Switch |
| Volume Control | Volume Control | Volume Control | |
| Bass Control | |||
| Treble Control | |||
| Power Input | 12V DC 1.5A | 12V DC 1.5A | 12V DC 4A |
| Weight | 350 g | 480 g | To be announced |
| Unit Size (LxWxH) | 98 x 100 x 32 mm | 98 x 100 x 32 mm | To be announced |
| Packing List | 1 x Preamplifier | 1 x Preamplifier | 1 x Preamplifier |
| 1 x Power Supply (Optional) | 1 x Power Supply (Optional) | 1 x Power Supply (Optional) | |
| 2 x Tubes | 2 x Tubes | 4 x Tubes |
