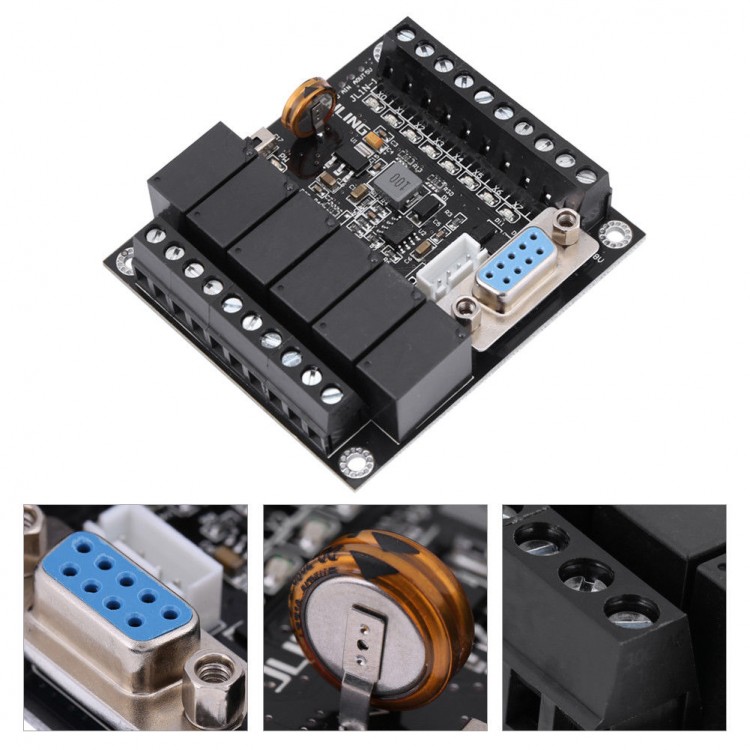

FX1N-14MR PLC Programmable Controller 32-Bit ARM Relay Delay Module HighQ IS

FX1N-14MR PLC Programmable Controller 32-Bit ARM Relay Delay Module HighQ IS

Features:
- The PLC adopts strong anti-interference industrial-grade 32-bit MCU,and supports for GX Developer and GX Works2.
- It supports super encryption,as long as input the keyword 11111111 under PLC state,there is no read function,only can download program in order that user program cannot be cracked.
- The PLC board directly uses GX programming software for ladder diagram,written to the PLC directly,can monitor online.
- Comprehensive and systematic anti-interference processing,power supply circuit has multiple anti-interference design and can work in adverse electromagnetic interfere environment.
- Widely used in all kinds of industrial automatic control,such as metallurgy,chemical,plastics,textile,food,packaging,printing, building materials,carpentry,central air conditioning,environmental protection equipment and industrial single process control equipment in industrial assembly line,various kinds of machine tools.

Specification:
- Model:FX1N-14MR
- Input Points:8 points
- Output Type:Relay Output
- Output Points:6 points
- Power Supply Voltage:DC24V
- Memory Capacity:8000 steps
- High Speed Input:3K/AB phase
- High Speed Output:No
- Connecting to Text Screen:Support
- Connecting to Touch Screen:Support
- Programming Software:GX Developer or GX Works2
- Operational Control Mode:Store program repetitive scanning mode
- Input Output Control Mode:Batch processing mode(when execute END command,input output refresh command,with pulse acquisition function)
- Programming Language:Relay symbol mode+stepper ladder diagram mode(or SFC)
- Ladder Diagram Programming Software:GX-Developer
- Program Memory:Program Capacity,Form:Buit-in 8K steps EEPROM(no need storer battery support)
- Command Type:Sequence Control Command:27
- Step Ladder Diagram Command:2
- Basic Apply Command:102
- Operation Processing Speed:Basic Command:0.15-0.5us/command
- Apply Command:0.5~10us/command
- Input Output Points:Input Points:Input: opto-isolator X000~X17(octal number)All input points can be set filter time 0-255mS by software
- Output Points:Relay Y00-Y15(octal number)

Auxiliary Relay:
- Normal Use:M0~M383 384 points
- Hold Use (EEPROM Hold):M384~M1535:1152 points
- Special Use:M8000~M8255  256 points
- State:Original State Use (EEPROM Hold):S0~S9  10 points
- Hold Use (EEPROM Hold):S10~S999 990 points

Timer(Delay Set ON):
- 100ms:T0~T199  200 points
(0.1~3,276.7 seconds)     VR1: D8030
VR2: D8031
VR3: D8032
- 10ms:T200~T245 46 points(0.01~327.67 seconds)1ms accumulative:T246~T249  4 points (0.001~32.767 seconds)
- 100ms:accumulative:T250~T255  6 points(0.1~3,276.7 seconds)EEPROM hold

Counter:
16-bit Add Mode:C0~C15  16 points(0~32,767 counter)
16-bit Add Mode:(EEPROM Hold) C16~C199 184 points (0~32,767 counter)
32-bit High Speed Dual Direction C200~C219  20 points(-2,147,483,648~+2,147,483,647) count
32-bit Add/Minus Dual Direction(EEPROM Hold)C220~C234  15 points(-2,147,483,648~+2,147,483,647) count
High Speed Counter:(EEPROM Hold) C235~C255

Data Register(use a pair as 32-bit):
- 16-bit Common Use:D0~D127  128 points
- 16-bit Hold Use(EEPROM Hold)     D128~D2047 1920 points
- 16-bit Special Use:D8000~D8255 256 points
- 16-bit Modify Address:V0~V7,Z0~Z7  16 points

Pointer:
- JAMP,CALL Branch Use:P0~P127 128 points
- Nest:Master Control Use N0~N7  8 points
- Constant:Decimalism (K) 16-bit: -32,768~+32,767
- 32-bit: -2,147,483,648~+2,147,483,647
- Hexadecimal (H):16-bit: 0~FFFF
- 32-bit: 0~FFFFFFFF

Package List:
- 1 x PLC
- 1 x User manual
