FX3U-30MR PLC Control Board Simple PLC Controller Programmable Controller Supports RS232 RS485

FX3U-30MR PLC Control Board Simple PLC Controller Programmable Controller Supports RS232 RS485

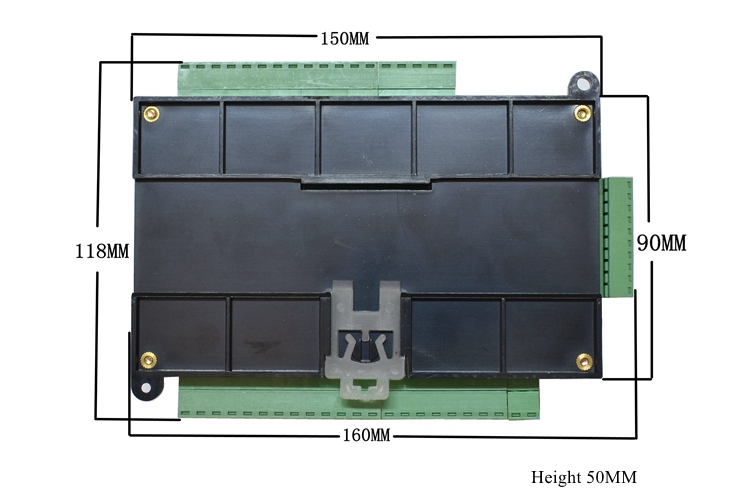

Product Information:
- Product Type: FX3U-30MR
- Relay output type: controllable AC contactor. Intermediate relay. Solenoid valve (Maximum 5A)
- Power supply: DC24V
- Input: X0-X17 (X0-X5 can be used as high-speed counting input ports 12KHZ) 16 points in total
- Output: Y0-Y15, a total of 14 points
- Analog quantity input: AD0-AD2 (voltage 0-10V), AD3-AD5 (current 0-20MA), RD3A instruction for reading analog quantity
- Analog quantity output: 2 channels (voltage 0-10V), use WR3A command for analog quantity output
- Memory capacity: 8000 steps
- Download baud rate: 38.4Kbps
- Programming method: programming, downloading, debugging, and monitoring the same as the original one (you can write in monitoring to facilitate debugging)
- No need for software conversion, the same download method as a regular PLC
- This product currently supports command sets
- Basic instructions: LD, LDI, AND, ANI, OR, ORI, OUT (OUTT, OUTC), SET, RST, ANB, ORB, MPS, MRD, MPP, INV, LDP, LDF, ANDP, ANDF, ORP, ORF, RET, OUTM, SETM, RSTM, OUTS, SETS, RSTS, PLS, PLF, MC, MCR, PI, END
- Step instruction: STL: Support 8 parallel branches, different state numbers can have double coils
- Contact comparison instructions: LD>=, LD<=, LD>, LD<,LD<>, LD=, AND>=, AND<=, AND>, AND<, AND<>, AND=, OR>=, OR<=, OR>, OR<, OR<>, OR=.
- Transmission and comparison instructions: MOV, CML, XCH, BCD, BIN, CMP, ZCP, FMOV. SMOV. BMOV
- Four arithmetic instructions: ADD, SUB, MUL, DIV, INC, DEC, WAND, WOR, WXOR, NEG
- Cyclic shift instructions: SFTR, SFTL, SFWR, SFRD
- Data processing instructions: ZRST, DECO, ENCO
- Program flow instructions: CJ, CALL, SRET, IRET, EI, DI, FEND, WDT, FOR, NEXT
- Convenient instructions: IST, ABSD, INCD, ALT, RAMP
- High-speed processing instructions: REF, REFF, MTR, HSCS, HSCR, SPD, PLSY, PWM, PLSR
- Peripheral I/O port: DSW, SEGL, FROM, TO
- Peripheral equipment SER instruction: RS, PRUN, ASCI, HEX, CCD, VRRD, VRSC, PID
- Positioning instructions: ABS, ZRN, PLSV, DRVI, DRVA
- Clock operation: TCMP, TZCP, TADD, TSUB, TRD, TWR, HOUR

Package Included:
- 1 x Set of PLC Controller


1: DC+ is connected to the positive pole of DC 24V, and DC- is connected to the negative pole. COM is the common terminal of switch group. X000-X017 is switch group input. A+.B-RS 485 interface. CAL.CAH.CNA communication interface
2: COM0 is the common end of Y0-Y3. COM1 is the common end of Y4-Y7, COM2 is the common end of Y10-Y13, and COM3 is the common end of Y14-Y5
3: DA0-DA1: 2ch analog output (voltage 0-10V). AD0-AD2: 3ch analog input (voltage 0-10V). AD3-AD5: 3ch analog input (current 0-20ma)
4: Run switch
5: RS232 communication interface
