Product Decription:

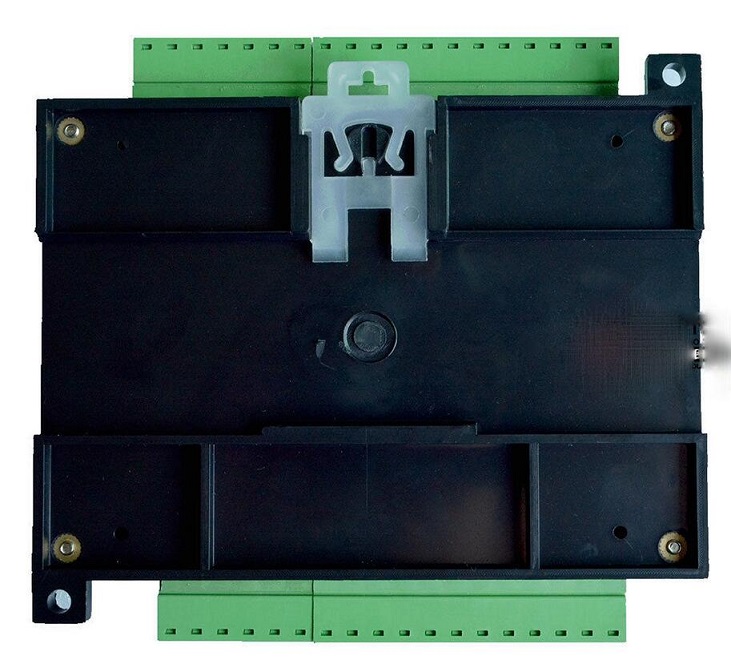

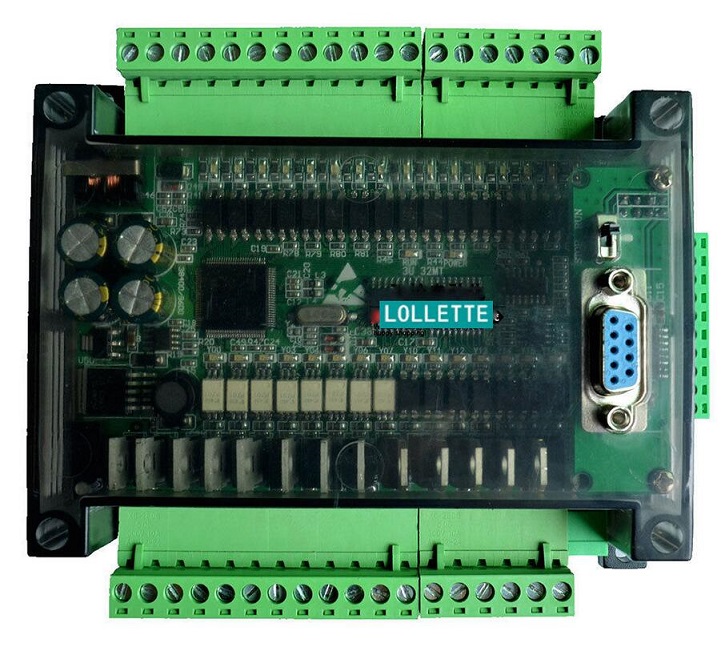

- FK3U 32MT6AD2DA PLC programmable logic controller
Third party Programming Software Description: can be compatible with the programming software Developer7.8 GX or 8.52、8.5 、8.86 Version
- FX3U PLC 3 AB input analog input of the 6 channel DA output of 3U,1N,2N,instructions,procedures,the 8000 step,download speed of 38400,the output of the pulse of the 8 (4 100K,12K)
- 16-point input,16 transistor outputs
- X0-X7 high-speed input,can be accessed by three AB encoder,the default 12K,optional 100K
- 6 analog (3 0-10v,3 0-20mA)2 0-10v analog output
- Power-down to maintain,can be set free
- DC 24V power supply
Features:
- 3-way AB input
- Support for 16-bit encryption
- Supports three kinds of interrupts
- 485 communication Support 4 kinds of communication protocols
- Support 1N,2N,3U of the instructions
- Power-down to maintain their own set range
- Program 8000 steps
- Download speed 38400
- Floating-point operations
- HMI
- Scan 3000 steps 1ms
Package List:
- 1 x Control Board
- 1 x User manual
