FX502C Bluetooth CSR4.0 Digital Amplifier TPA3116+CSR8635 HiFi AMP 50W+50W

FX502C Bluetooth CSR4.0 Digital Amplifier TPA3116+CSR8635 HiFi AMP 50W+50W

Product Description:
- Effective transmission range:10m(no obstacle)
- CSR8635 high definition 4.0 bluetooth module with TI chip TPA3116
- Compatible with bluetooth wireless real-time music playing
- Wireless transmission distance:>10m(related to the power of the device)

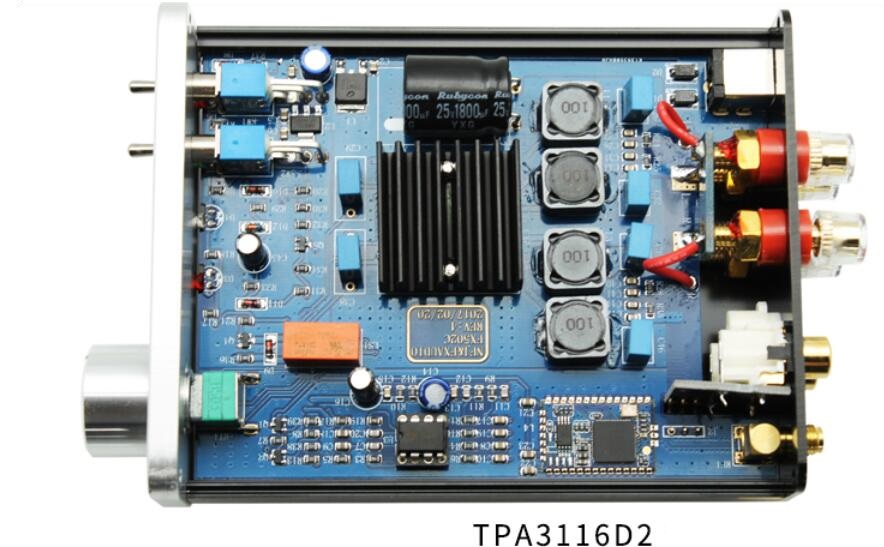

- TPA3116D2 amplifier chip,the max support 50W+50W dual channel output,low consumption,high efficiency,low distortion,strong reducibility.Large radiation fin,shielded inductor output.

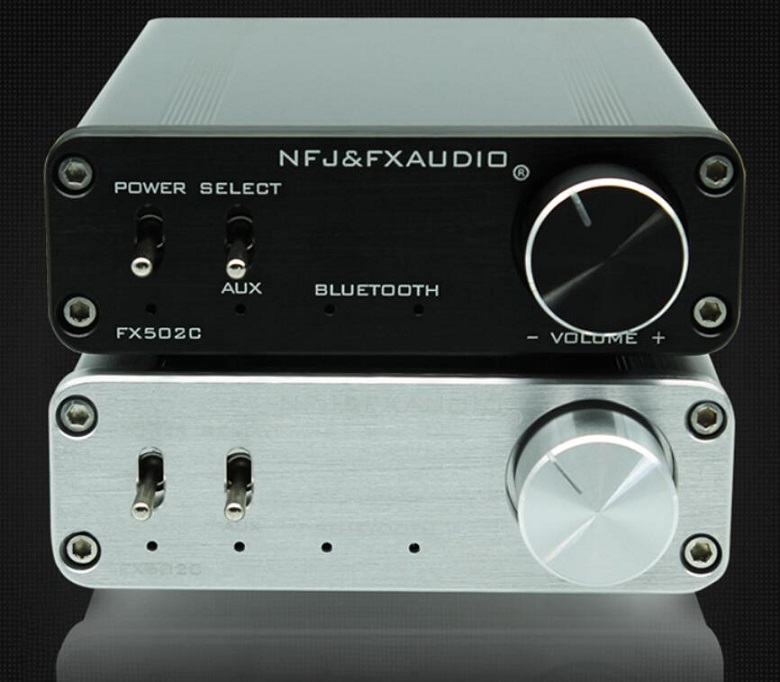

- Color:Black/Silver

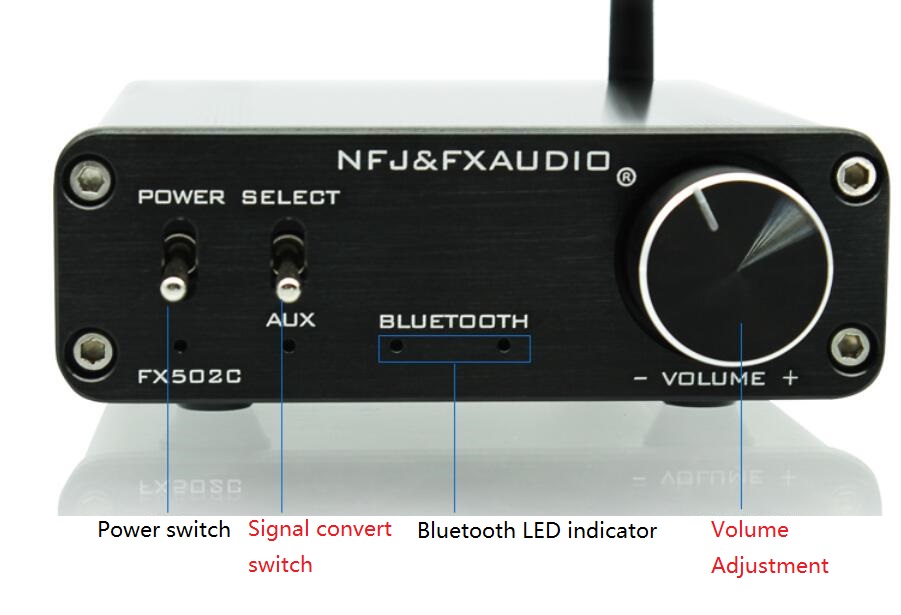

Bluetooth using method:
1.Switch on the amplifier,adjusting the signal option switch upward.
2.When you see the red LED indicator and blue LED indicator(the red and blue LED below the identifying "BLUETOOTH") flash.
3.Switch the mobile phone or other bluetooth devices and step into search status,find FX502C mode.
4.Click "connection",when connection finishes,you can play music.

Bluetooth parameter:
- Bluetooth specification:Bluetooth V4.0
- Modulation mode:GFSK,π/4 DQPSK,8DPSK
- Support bluetooth protocol:HFP V1.6,HSP V1.2,A2DP V1.2,AVRCP V1.4
- Wireless transmission range:>10m(has relation with device)
- Transmission power:support CLASS1/CLASS2/CLASS3.
- Sensitivity:-80dBm<0.1%BER
- Frequency range:2.4GHz-2.480GHz
- Audio performance:Support AAC,MP3,SBC

Performance parameter:
- Input sensitivity:775mV
- SNR:-98dB
- Distortion degree:1W@1kHz 0.04
- Frequency response:+-1dB
- Earphone amplifier power:24V@THD=10% 43W 15V@THD=10% 22W
- AMP impedance:4ohm; 6ohm; 8ohm

Other parameters:
- Power voltage:DC 12V-24V
- Dimension:122.90.10x97.00x32.08mm
- Weight:0.35kg

Package List:
- 1 x Wireless Bluetooth Audio Receiver
- 1 x 5A/4A Power Adapter
- 1 x 3DB Bluetooth Antenna
