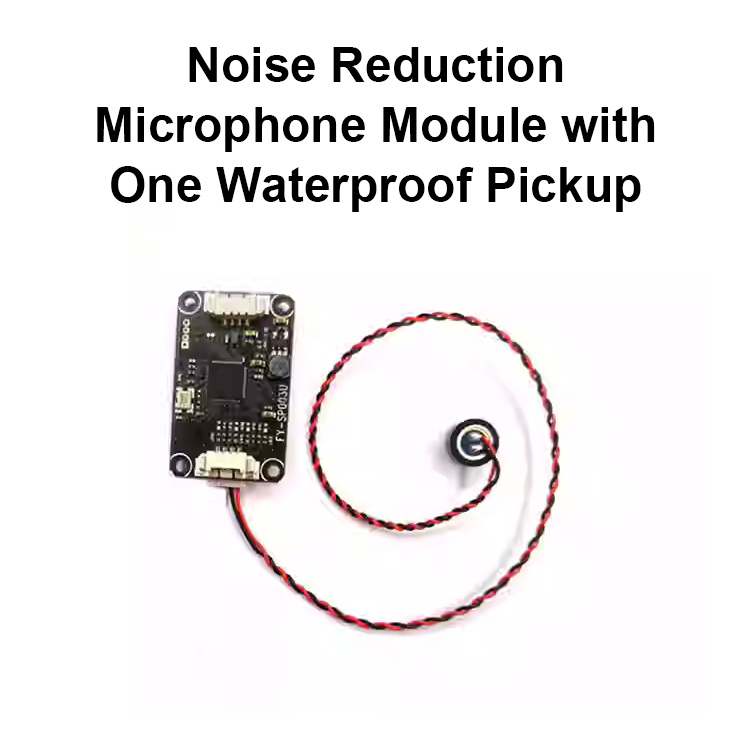

FY-SP003U Noise Reduction Microphone Module ENC Module (with One Waterproof Pickup) for Voice Calls

FY-SP003U Noise Reduction Microphone Module ENC Module (with One Waterproof Pickup) for Voice Calls

Description:
FY-SP003U is an intelligent deep learning processor with low power consumption. It is configured with a deep neural network and an efficient inference engine. It adopts smooth noise reduction and cancellation technology. In terms of far-field pick-up technology, it can cover recordings up to 6m/19.7ft in diameter. It is a voice front-end solution that integrates a variety of algorithm technologies such as AEC (Acoustic Echo Cancellation), ANC (Noise Cancellation), AGC (Automatic Gain Control), DNN, AES and ASR accumulated by senior audio engineers over the years.

The module supports video or voice communication systems such as major video conferencing systems, large-screen all-in-one video systems, etc. It can quickly realize the intelligent transformation of products, support audio and video calls, recording forensics, voice recognition, menu navigation and the like.

Advantages:
- Intelligent noise cancellation
- Strong anti-interference
- Standard USB interface
- No drive required
- AEC, ANC and AGC

Features:
- Far-field pickup
- Squeal cancellation and dynamic noise reduction
- Supports dual or single linear microphone array
- Echo cancellation and remove the mix
- Speech recognition module
- Highly sensitive sound sensor
- AI intelligent voice algorithm
- The sampling rate reached 16,000
- No driver required. Plug and play. Suitable for systems supporting UAC protocol. It is for Windows, Android, Linux, Ubuntu, Kylin, Harmony and Raspberry Pi

Functional Applications:
- Supports multiple audio formats: All standard audio formats are supported. Supports wide-area sampling rate range.
- Intelligent noise cancellation: It can effectively reduce the interference of external noise.

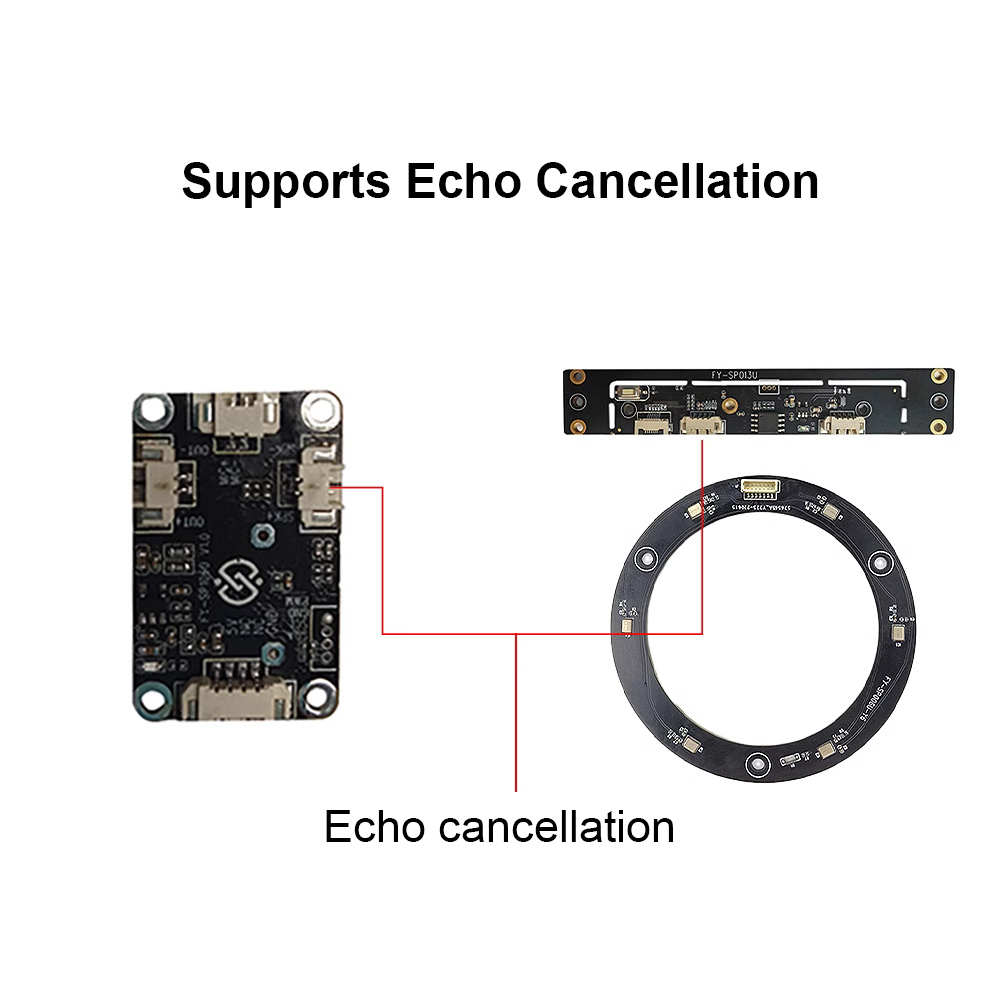

- Supports echo cancellation: Echo can be read and processed through the reference signal interface to eliminate echo.

Application Scenarios:
- IP network two-way intercom terminal
- Prison terminals
- Building intercom
- Two-way intercom
- Intercom in the unattended parking lots

Package Included:
- 1 x Motherboard
- 1 x Waterproof pickup
- 1 x USB connection cable (1.5m/4.9ft; 1.25*4p terminals)
- 1 x Echo cancellation cable

Packaging Details:
- Weight: 0.15kg

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
