FY-SP104U Noise Reduction Microphone Module 2 Waterproof Pickups for Echo Cancellation 32.8ft Range

FY-SP104U Noise Reduction Microphone Module 2 Waterproof Pickups for Echo Cancellation 32.8ft Range

Description:
FY-SP104U is an intelligent, deep learning processor with low power consumption. It is equipped with a deep neural network and an efficient inference engine. It uses smooth noise cancellation technology. In far-field pickup technology, it covers recordings up to 10m/32.8ft in diameter.

It is a voice front-end solution that integrates multiple algorithm technologies into one. These technologies include AEC, ANC, AGC, DNN, AES and ASR. It is carefully tuned by senior audio engineers.

It supports major video conferencing systems, large-screen all-in-one video systems and other video or voice communication systems. The module can quickly realize the intelligent transformation of products, support audio and video calls, recording forensics, voice recognition, menu navigation, etc.

Advantages:
- AI speech algorithms
- No debugging
- Far-field pickup
- No driver required
- Echo cancellation
- Strong anti-interference
- Reverberation removal
- Supports for multiple systems
- Intelligent noise cancellation
- Omnidirectional pickup
- Compact size and easy installation
- Standard USB interface
- ANC and AGC
- 10m/32.8ft pickup radius
- 48000 sampling rate

Features:
- Intelligent environmental noise reduction module
- Balance noise reduction with vocal fidelity
- Intelligent AI speech algorithms
- 48000 sampling rate
- Far-field pickup: supports a 10m/32.8ft pickup radius
- Hissing elimination and dynamic noise reduction
- Echo cancellation and reverberation removal
- Array microphone module: It increases the sampling rate for longer pickup distances and clearer sounds
- Compact size makes it easy to install. More powerful than you think. It is equipped with a cost-effective microphone with high-level sound processing technology and intelligent voice pickup
- Intelligent noise cancellation, high fidelity, and hissing elimination. High-sensitivity microphone module and dual-core enhanced DSP

Functional Applications:
- Supports multiple audio formats : Supports wide-area sampling rate ranges.
- Echo cancellation and reverberation removal: Ensure high recording quality.
- Far-field pickup: Supports 10m/32.8ft pickup radius.
- No drive system required: Common multi-system drives are supported. Supports systems for Windows, Android and Linux.

Application Scenarios:
- Exhibition hall inquiry machines
- Two-way intercom
- All-in-one live streaming machines
- Voice interaction
- Prison terminals
- Outdoor advertising machines

Product Parameters:
- Audio features: It takes into account the noise reduction effect and the fidelity of the vocals
- Deep learning processor: Dual-core enhanced DSP
- Sampling rate: 48000
- MIC sensitivity: -28db
- MIC SNR (typical): 65dB
- Motherboard size: 32mm x 20mm/1.3" x 0.8" (LxW)
- Power interface: USB2.0 (1.25*4p terminal)
- Operating temperature: -20°C to 65°C
- Audio algorithms: AEC, ANC, AGC, DNN, AES and ASR and front-end 2-way echo cancellation
- Decoding format: All standard audio formats are supported. Wide-area sampling rate ranges are supported
- MIC arrangement: 2-MIC linear arrangement is supported
- Pickup distance: 10m/32.8ft radius
- Size of pickup head: 6mm x 5mm/0.2" x 0.2"
- Other features: Supports real-time communication audio with computer software
- Computer system requirements: commonly used computer systems and for Android system

Package Included:

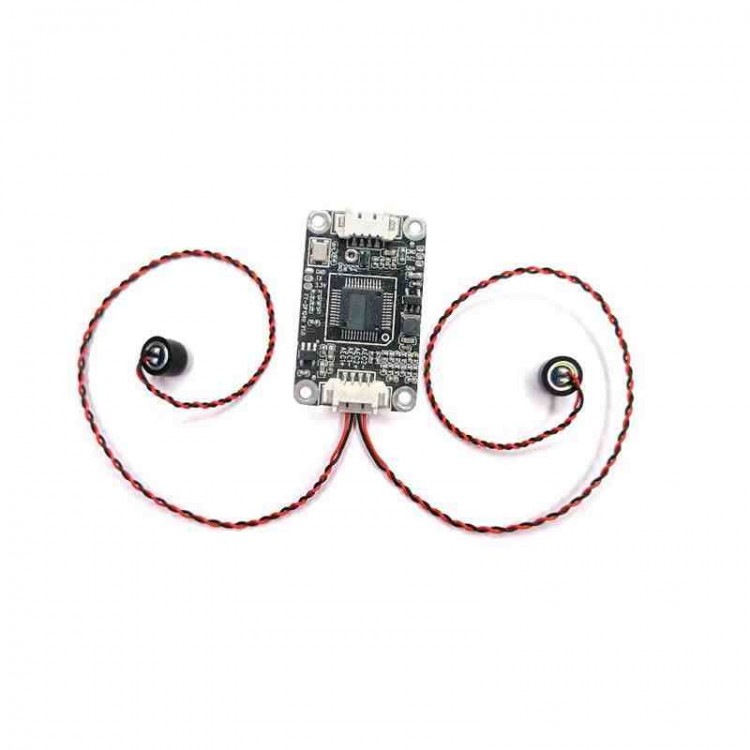

- 1 x Motherboard
- 2 x Waterproof pickups
- 1 x USB connection cable (1.5m/4.9ft; 1.25*4P terminal)
- 1 x Echo cancellation cable

Packaging Details:
- Weight: 0.15kg
