FY-SP110U Noise Reduction Microphone Module Supports 3.5mm Interface and 10m/32.8ft Pickup Range

FY-SP110U Noise Reduction Microphone Module Supports 3.5mm Interface and 10m/32.8ft Pickup Range

Description:
FY-SP110U is an intelligent, deep learning processor with low power consumption. It is equipped with a deep neural network and an efficient inference engine. It uses smooth noise cancellation technology. In far-field pickup technology, it covers recordings up to 10m/32.8ft in diameter.

It is a voice front-end solution that integrates multiple algorithm technologies into one. These technologies include AEC, ANC, AGC, DNN, AES and ASR. It is carefully tuned by senior audio engineers.

It supports major video conferencing systems, large-screen all-in-one video systems and other video or voice communication systems. The module can quickly realize the intelligent transformation of products, support audio and video calls, recording forensics, voice recognition, menu navigation, etc.

Advantages:
- Artificial intelligence speech algorithms
- Call noise cancellation
- Far-field pickup
- Supports 3.5mm analog signal interface
- Echo cancellation
- Strong anti-interference
- Reverberation removal
- Supports multiple systems
- Intelligent noise cancellation
- No drive required
- Supports AUX interface
- AEC, ANC and AGC
- 10m/32.8ft pickup radius
- 48000 sampling rate

Features:
- Intelligent environmental noise cancellation module
- Far-field pickup: Supports 10m/32.8ft pickup radius
- Smooth noise cancellation technology
- Supports AUX and 3.5mm analog interfaces
- With a cost-effective microphone with high-level sound processing technology and intelligent voice pickup
- Echo cancellation and de-reverberation
- Speech recognition module and highly sensitive sound sensor
- Single microphone noise cancelling array module: It supports far-field recording. It is paired with a 3A audio algorithm and a dual-core enhanced DSP
- Far-field microphone array module
- Multi-audio formats are supported
- Sampling rate up to 48000
- No driver required. Plug and play. Suitable for systems supporting UAC protocol. It is for Windows, Android, Linux, Ubuntu, Kylin, Harmony and Raspberry Pi
- Selected materials: high stability and high speed

Functional Applications:
- 3.5mm analog signal interface can be used for convenient devices.
- Echo cancellation and reverberation removal: Ensure high recording quality.
- Far-field pickup: Supports 10m/32.8ft pickup radius.
- No drive system required: Common multi-system drives are supported. Supports systems for Windows, Android and Linux.

Application Scenarios:
- Panoramic recording
- Vertical terminals
- Voice-controlled tea bar machines
- Two-way intercom
- Medical terminals
- Voice interaction

Specifications:
- Product model: FY-SP110U
- Product name: 3.5mm omnidirectional microphone
- Product positioning: For camera or monitoring use
- Directivity: Omnidirectional
- Sensitivity: -27dbFS
- SNR: 64.3db (A)
- Pickup distance: 10m/32.8ft pickup diameter and in 360 degrees
- Sampling rate: 48000
- Pickup technologies: ANS and AGC
- Interfaces: Type-C USB power supply interface and 3.5mm audio interface

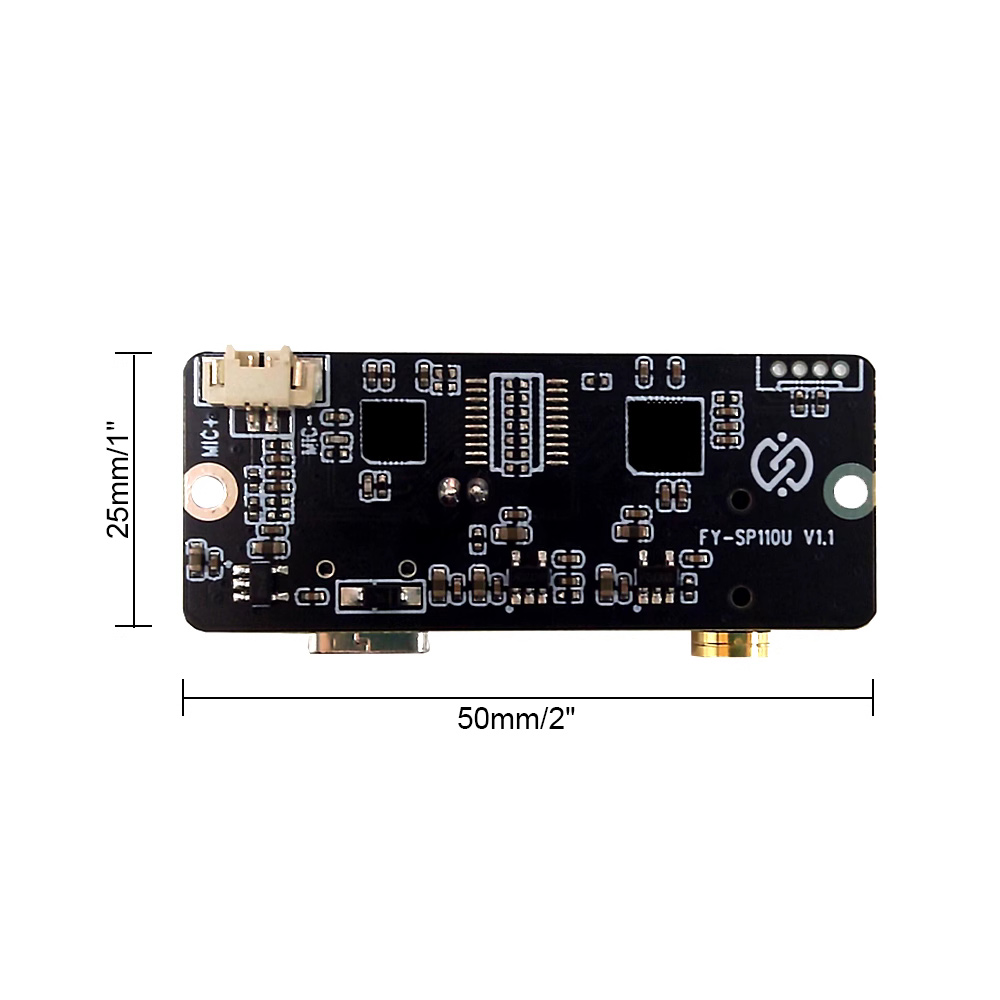

- Product size: 25mm x 50mm/1" x 2"
- Compatible systems: Commonly used computer systems. For Android and iOS
- Input voltage: 5V (powered via USB port)
- Compatible software: For Zoom, Skype, Vidyo, Bluejeans, Microsoft teams, etc.

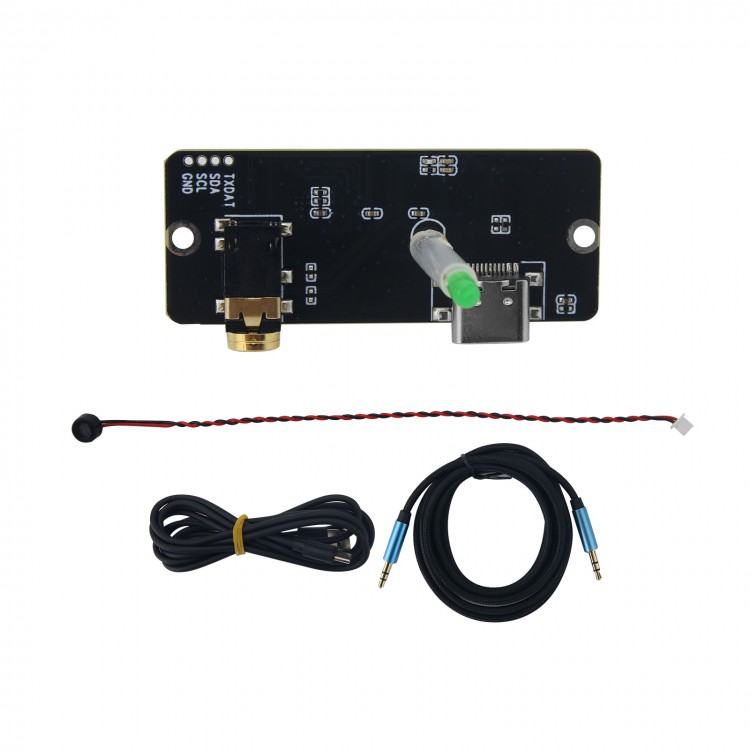

Package Included:
- 1 x Mic motherboard
- 1 x USB data cable (1.5m/4.9ft; 1.25*4P terminal)
- 1 x 1.25*4P echo cancellation cable (80cm/31.5" in length)
- 1 x Pickup

Packaging Details:
- Weight: 0.15kg

Note:
- It can be used with waterproof pickups. 6050 waterproof pickup is optional. If it is needed, please contact us. Thank you!
