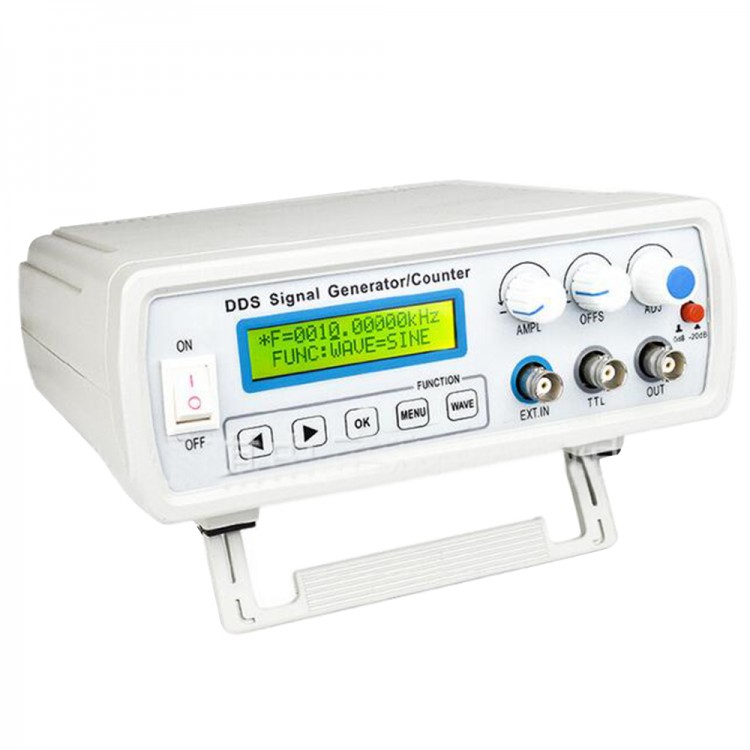

FY2108S Dual-Channel DDS Signal Generator Counter Arbitrary Waveform Frequency Meter

FY2108S Dual-Channel DDS Signal Generator Counter Arbitrary Waveform Frequency Meter

Features:
- Small volume and multi-function
- High precision frequency, frequency accuracy is up to 10-6
- Frequency resolution: 10mHz
- No range limit
- High precision waveform
- Multi waveform: Sine wave,square wave, triangle wave,rise sawtooth wave,fall sawtooth wave
- Frequency scan function
- Can store 10 groups of parameters
- Key operartion, LCD1602 English display
- High reliability
- With 60Mhz frequency meter function, test inner/outter signal

Specification:
- Model: FY2108S
- Sine wave: 0MHz-8MHz
- Square wave:0MHz-2MHz
- Triangle wave:0MHz-2MHz
- Other wave:0MHz-2MHz

Signal output parameter:
- Output channel: One for main waveformoutput; the other for TTL level output
- Output waveform:  Sine wave,square wave, triangle wave, rise Sawtooth, fall Sawtooth
- Output range: >=9Vp-p (No-load)
- Output impedance: 50Ohm-+10%
- DC offset: -+3V
- Frequency resolution: 0.01Hz(10mHz)
- Frequency accuracy: -+0.000005
- Frequency stability: -+0.000005/3 h
- Sine wave distortion: <=0.8%
- Triangle wave linear degree: >=98% (0.01Hz-10Khz)
- Square wave rise and fall : <=100ns
- Square wave duty cycle range: 1%-99%

TTL output:
- Range: >3Vp-p
- Fan-out: >20 TTL load
- Rise and fall of TTL: <=20ns

Frequency meter function:
- Range: 1-4294967295
- Testing frequency range: 1Hz-60Mhz
- Input range: 2Vp-p~20Vp-p

Scanning function:
- Scanning: Linear /Log scan
- Frequency setting range: Arbitrary setting of the starting and ending
- Frequency scanning range: M1 preset frequency-M2 Preset frequency
- Scanning speed: 1s-99s/stepping

Others:
- Display: LCD1602 English display
- Storage and call function: M0-M19
- Buzzer tip: Yes
- Power supply: DC5V  1A
- Operating temperature: 0-40 deg C
- Humidity:<80%
- Dimension: 200*190*90mm

Package included:
- 1 x  DDS Signal Generator
