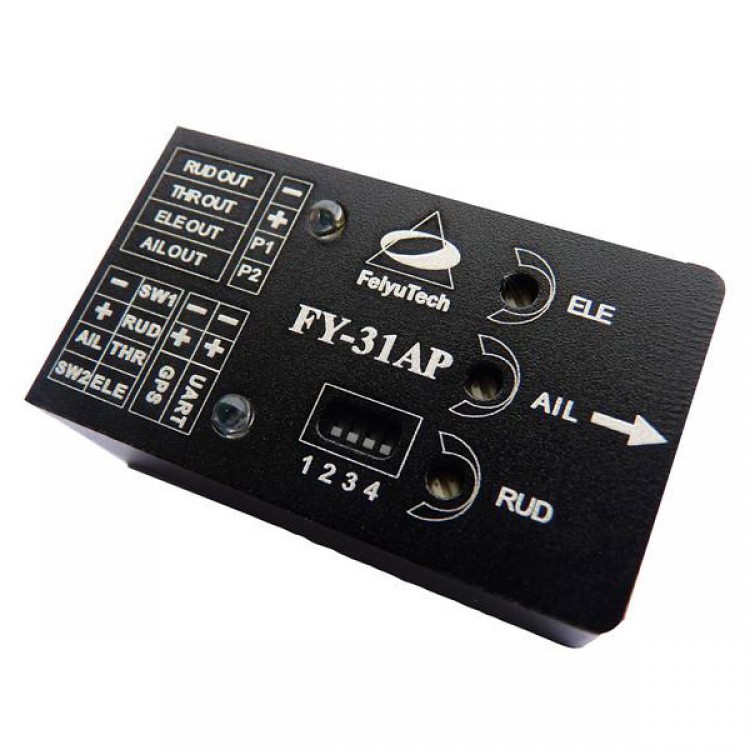

FY31AP Autopilot System Flight Control with FY-GPS Module

FY31AP Autopilot System Flight Control with FY-GPS Module


Features:
- Automated circling
- RTH;FPV
- Firmware upgrade
- Autonomous flight(8 waypoints settings)
- CE and FCC certification

Attitude Flight Stabilization System (AFSS)
FY31AP is an inertial attitude measurement instrument used for automated stabilization of fixed wing model aircrafts and simple three axis camera gimbals.

Barometric Sensing and GPS

Function Of FY-31AP
By using your remote control, the FY-31AP can be turned on or off for the following functions:

Level flight – When stabilization is activated, the FY31AP will automatically control the aircraft for smooth easy flying. For beginners in RC aircraft flying, this is advantages as it makes flight easier and increases the student pilot self-confidence. The system can be activated throughout the entire flight duration, from take off to landing.

Emergency Recovery - If you lose orientation release all control sticks, maintain throttle and switch ON the FY31AP. The unit will automatically send the correct signals to balance of the aircraft and regain level flight, giving you time to get your orientation and fly the plane back to safety.

Autonomous flight –with the GPS module the autonomous flight system of the FY31AP will enable you to fly fully autonomous, with up to 8 waypoints settings on the FY Ground Control Station software.

Ground Control Station – the FY GCS software will enable you to fly autonomously to up to 8 waypoints, display in-flight telemetry data, and record that flight for replay and analysis (this requires the optional Data Radio hardware).

Automated circling - by activating this function, the aircraft will automatically circle the selected area at a fixed altitude, the centre of the circle is the current point. You can set the circling radius, the default radius is 80 meters.

Return to Home – You can set autonomous return to home via a 3 way switch or through your failsafe setting, enabling you plane returning to home should it lose your transmitter signal. Upon reaching the home point it will automatically engage auto circling, while it waits for your further instructions.

First Person View - for long-distance RC flight via video transmitter, the FY31AP will maintain the balance of your aircraft. You only need to control the heading of your aircraft and enjoy the view.

Firmware upgrade – The FY31AP firmware is upgradable by connecting to your computer via a USB TTL cable. As Feiyu Tech continuously improves the FY31AP system, firmware upgrades will be released periodically.

Optional Upgrade with FY-OSD and Data Radio

The FY-31AP provides an optional upgrade combining with the FY-OSD and the Data Radio. With this add-on, you will receive:

First Person View (FPV): by connecting this interface to the FY-OSD, telemetric data such as GPS, flight navigation, AHI can be displayed on your downlink video. On the other hand, it will be easier to operate FPV with the functions of automatic balance and automated return to home.

Real time telemetry – real time by-directional telemetry is monitored directly by your ground station computer. Changes to aircraft altitude and flight path can be controlled from your ground station computer.

Record and monitor your flight - you can monitor and download your flight path into your ground station computer.

FY-31AP Flight Modes
The FY-31AP has three flight modes, you can activate any of the flight modes via a free Receiver channel and a 3-position switch (named as “SW1”) on your computer radio.

Package included:
- 1 x FY-31AP
- 1 x FYGPS (10HZ) module
- 1 x Basic wiring set
