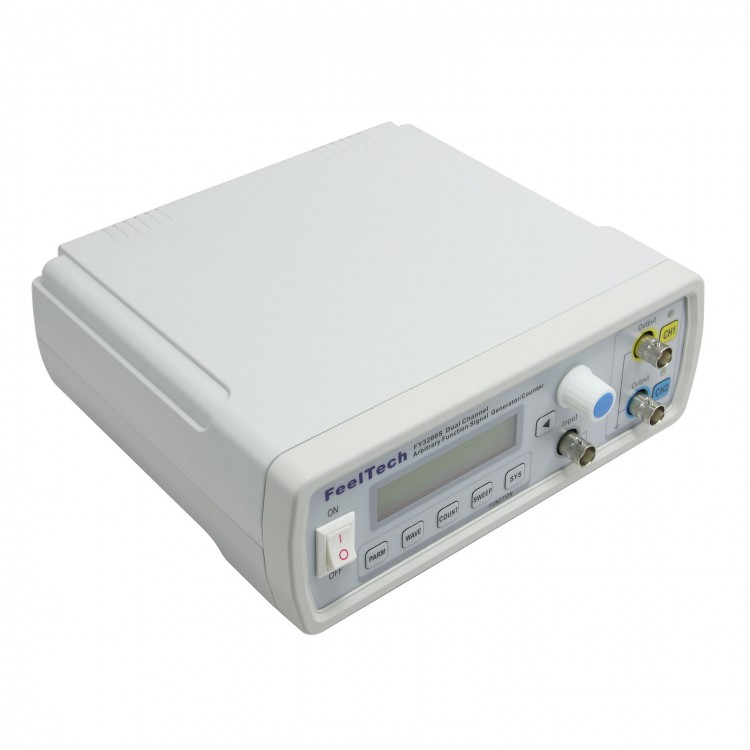

FY3200S-12MHz Digital LCD Dual-Channel DDS Signal Generator Counter Arbitrary Waveform Frequency Meter

FY3200S-12MHz Digital LCD Dual-Channel DDS Signal Generator Counter Arbitrary Waveform Frequency Meter

Features:
- DDS technology, accurate, stable and low distortion for output signal
- CH1 and CH2, independently set parameters
- Support user self-define waveform, 2046*12bits, 250MSa/s sampling rate
- With pluse train burst output,output 1-1048575 pulse train
- Measurement: With 1000Mhz frequency meter and pulse meter function
- Signal output range: 10mVpp-20Vpp,output signal bias level -10V-10V
- Wavoform generator width up to 12bit
- Can adjust output signal range, bias,frequency,duty cycle and PD of two channels
- Can control functions and parameters by computer PC.
- Seriel port communication, for the secondary development
- High precision frequency, frequency accuracy is up to 10-6
- Frequency resolution: 10mHz
- Tracing function
- Frequency scan function
- Can store 20 groups of parameters
- Key operartion, LCD1602 English display

Specification:
- Model: FY3200S-12MHz
- Sine wave: 0MHz-12MHz
- Square wave:0MHz-6MHz
- Triangle wave:0MHz-6MHz
- Other wave:0MHz-6MHz

Signal output parameter:
- Output channel: Dual channel independent output

Output waveform:
- Sine wave,square wave, triangle wave, rise Sawtooth, fall Sawtooth
- Sawtooth wave, pulse wave, Lorenz Pulse, Multitone
- Noise,Electrocardiogram (ECG), Trapezoidal Pulse, Sinc Pulse, FM
- Narrow Pulse, Gauss White Noise,Step Triangle ,Positive Step and self-define wave

- Output range: >=20Vp-p (No-load)
- Output impedance: 50Ohm-+10%
- DC offset: -+10V
- Frequency resolution: 0.01Hz(10mHz)
- Frequency accuracy: -+0.000005
- Frequency stability: -+0.000005/3 h
- Sine wave distortion: <=0.8%
- Triangle wave linear degree: >=98% (0.01Hz-10Khz)
- Square wave rise and fall : <=20ns
- Square wave duty cycle range: 0.1%-99%

TTL output:
- Range: >3Vp-p
- Fan-out: >20 TTL load
- Rise and fall of TTL: <=20ns

Frequency meter function:
- Range: 1-4294967295
- Testing frequency range: 1Hz-100Mhz
- Input range: 1Vp-p~20Vp-p

Scanning function (only for main wave):
- Scanning: Linear /Log scan
- Frequency setting range: Arbitrary setting of the starting and ending
- Frequency scanning range: M1 preset frequency-M2 Preset frequency
- Scanning speed: 1-999s/stepping

Others:
- Display: LCD1602 English display
- Storage and call function: M0-M19
- Buzzer tip: Yes
- Power supply: AC85-AC260V
- Operating temperature: 0-40 deg C
- Humidity:<80%
- N.W: 550g
- Dimension: 200*190*90mm

Package included:
- 1 x  DDS Signal Generator
