FY3200S 25MHz Dual Channel Arbitrary Waveform DDS Function Signal Generator 10mVpp-20Vpp Frequency Meter

FY3200S 25MHz Dual Channel Arbitrary Waveform DDS Function Signal Generator 10mVpp-20Vpp Frequency Meter

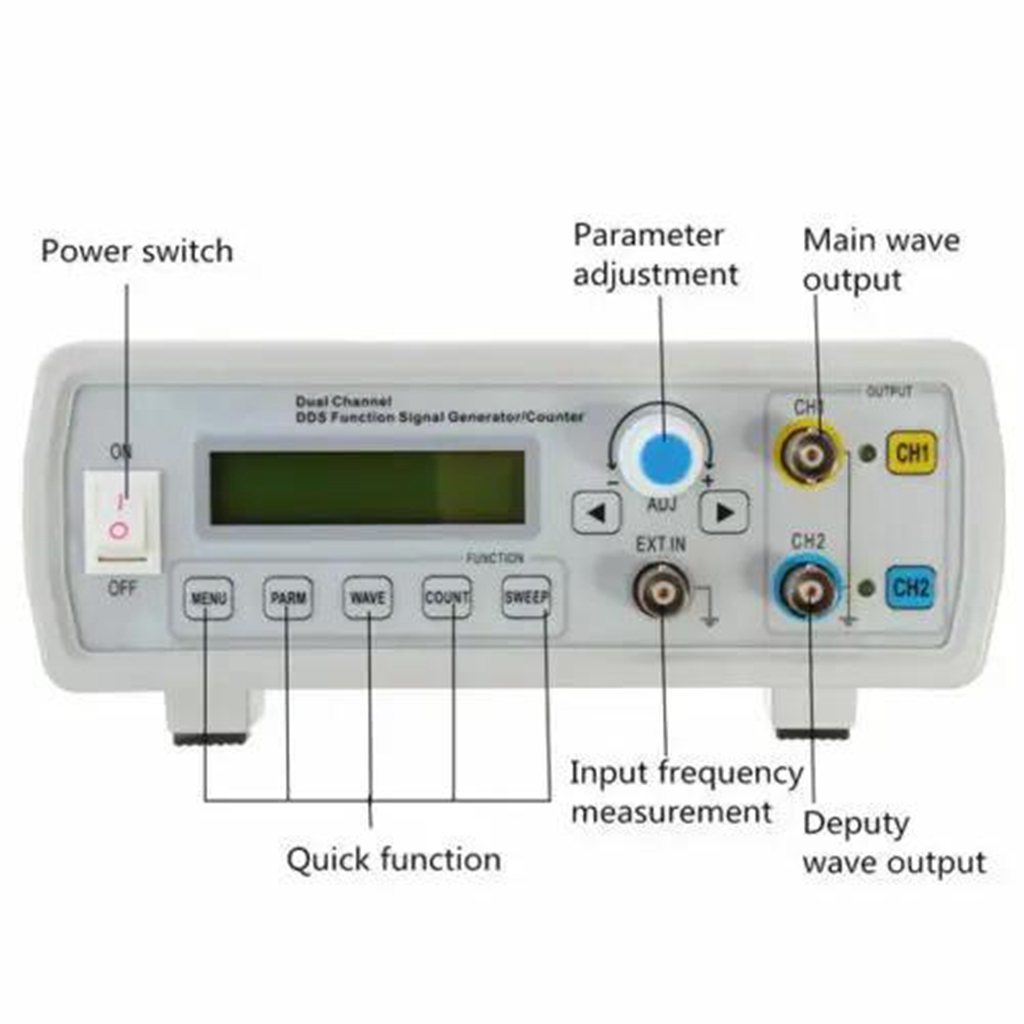

Description:
- The FY3200S series dual channel function/arbitrary waveform generator is a portable, high-performance, cost-effective, and multifunctional signal generator that integrates functions such as function signal generator, arbitrary waveform generator, pulse signal generator, frequency sweeper, counter, and 100MHz frequency meter. The instrument adopts large-scale FPGA integrated circuits and high-speed MCU microprocessors, and the internal circuit uses high-precision active crystal oscillators as benchmarks, with high signal stability. The surface mounting process greatly improves the anti-interference and service life of the instrument. One click operation of commonly used functions greatly improves the operability and practicality of the instrument.

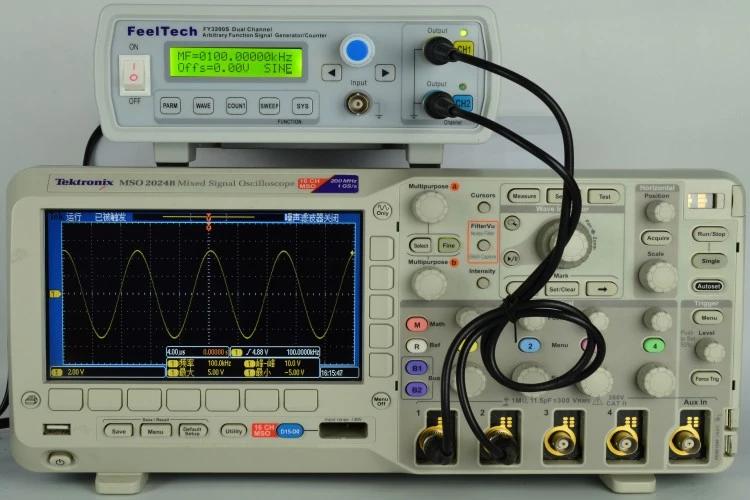

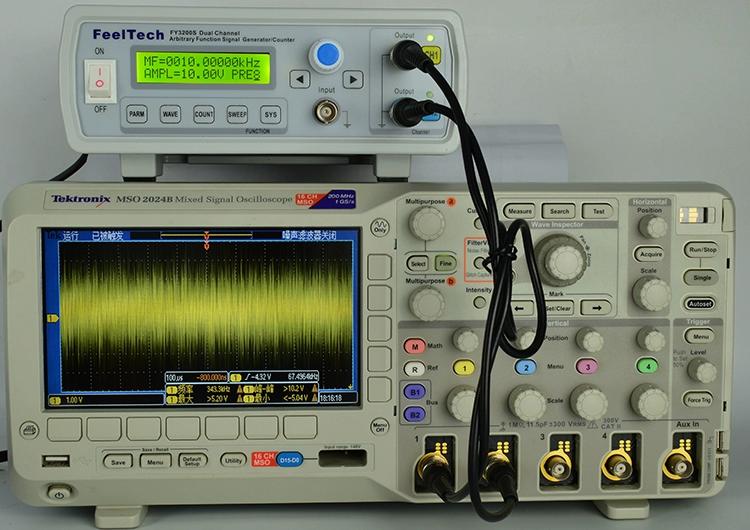

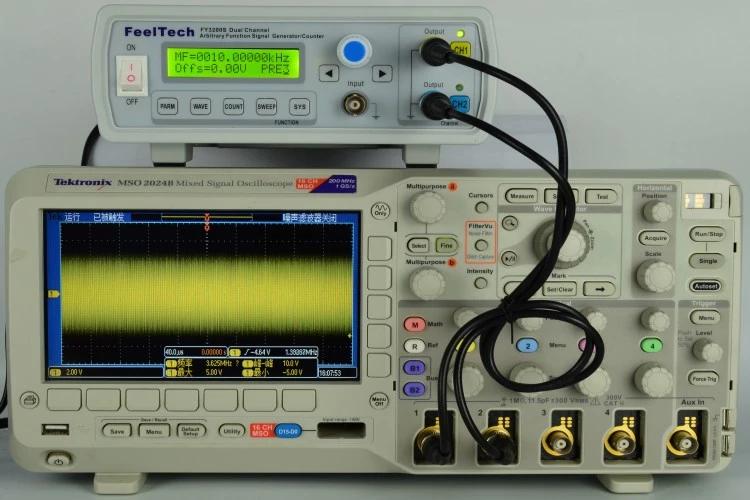

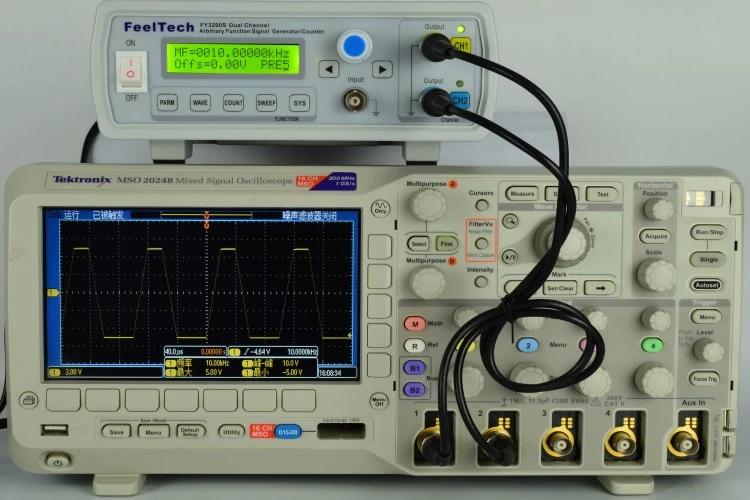

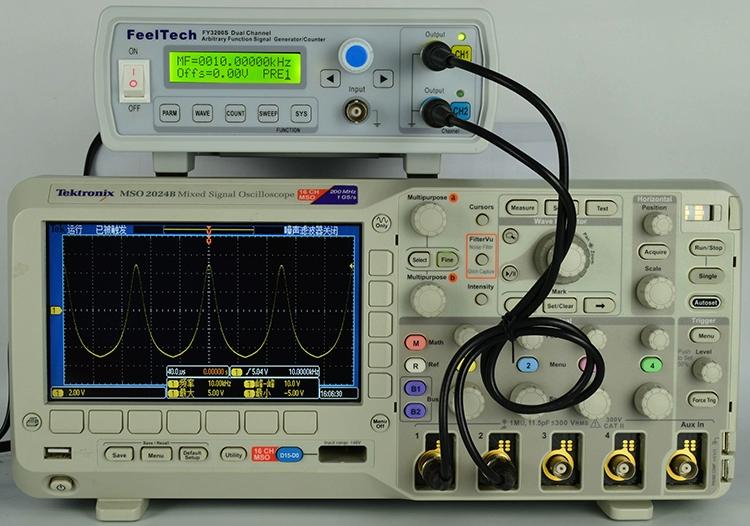

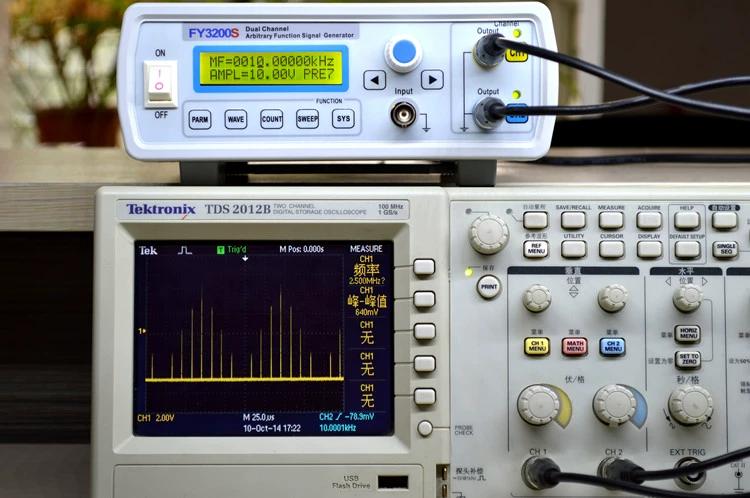

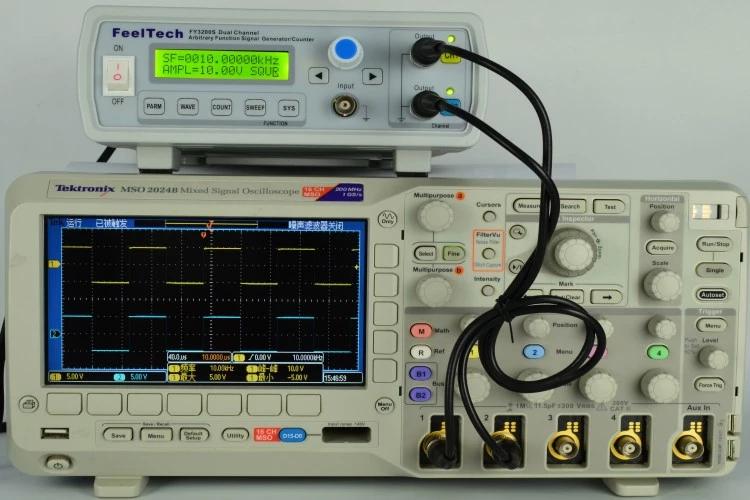

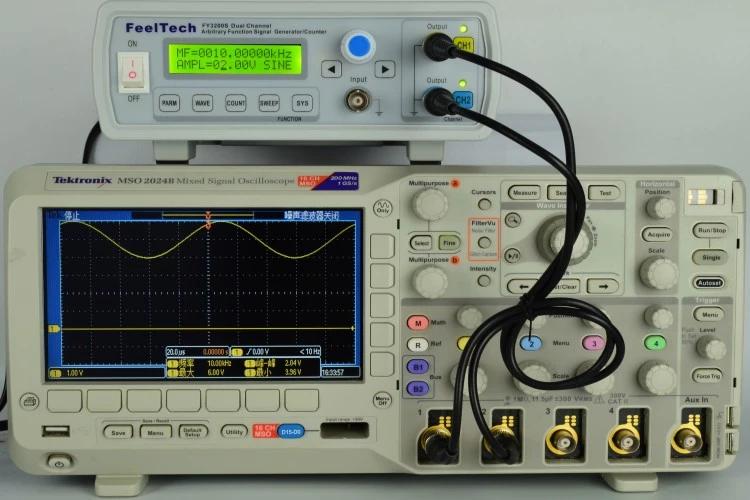

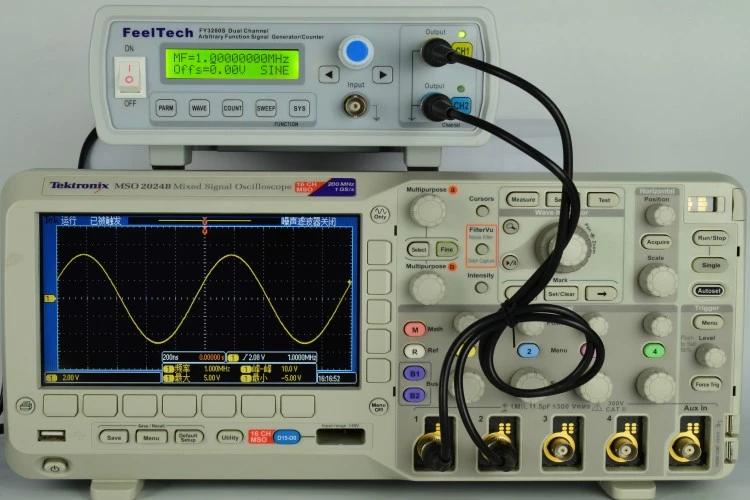

- The instrument has dual function/arbitrary waveform signal output, which can generate sine wave, square wave, triangular wave, sawtooth wave, pulse wave (pulse width can be precisely set to maintain the same pulse width at different frequencies), Lorentz pulse, multi tone, irregular noise, electrocardiogram, trapezoidal pulse, Symplectic pulse, narrow pulse, Gaussian white noise, amplitude modulation waveform, frequency modulation waveform, dual TTL output FSK frequency shift keying and ASK amplitude shift keying signal outputs, as well as user-defined waveforms. The product also has linear frequency scanning and logarithmic frequency scanning functions, which can freely set the scanning frequency range and scanning time.
- The CH1 and CH2 channels are completely symmetrical, with adjustable phase difference, and each channel's parameters can be set independently. The maximum output signal amplitude can reach 20Vpp, and the paired dual channel power amplifier can achieve a maximum output amplitude of 80VPP. Both output signals of FY3225S can reach up to 25MHz. The frequency, amplitude, bias, phase, and other parameters of the output signal can be programmed for control (the instrument can display the amplitude, phase, waveform and other parameter information of the output signal, making your operation more intuitive and convenient). It is an ideal equipment for electronic engineers, laboratories, production lines, teaching, and scientific research.

Special Functions:

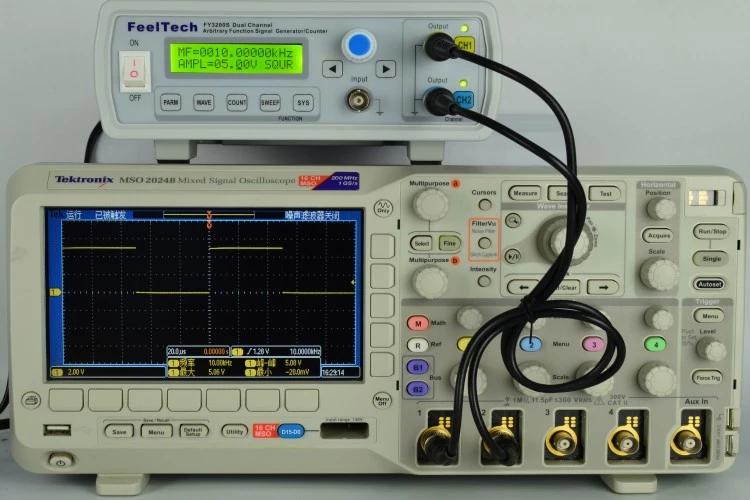

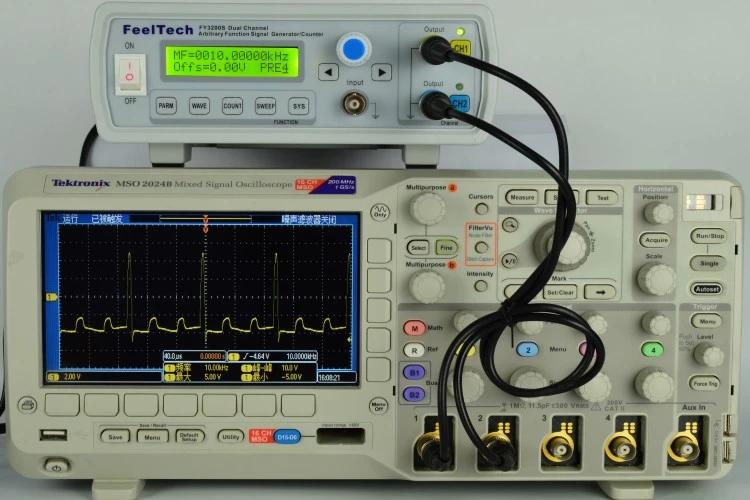

- Unique and practical pulse wave function: Function display: The instrument outputs a pulse wave signal with a pulse width of 1us (the frequency can be adjusted arbitrarily, and the pulse width remains unchanged).

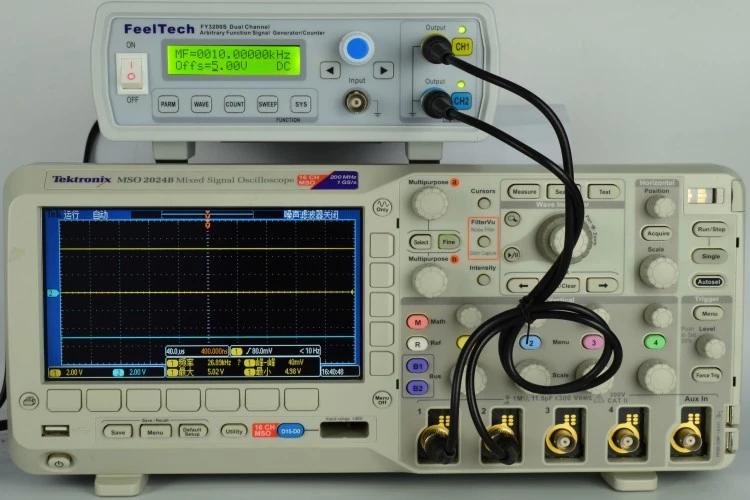

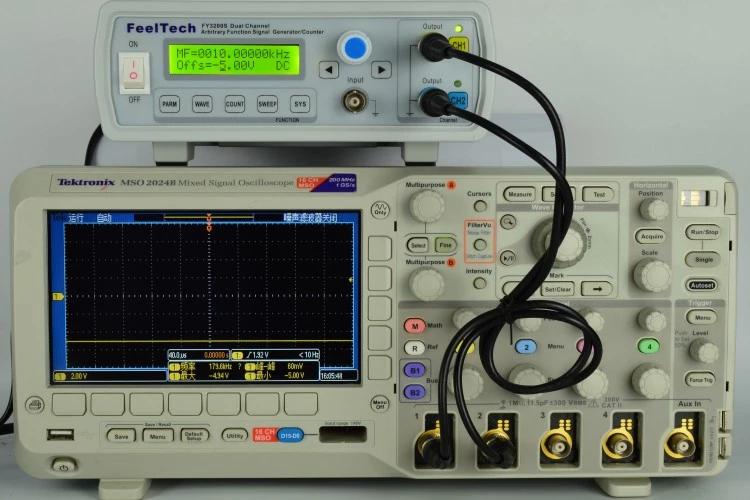

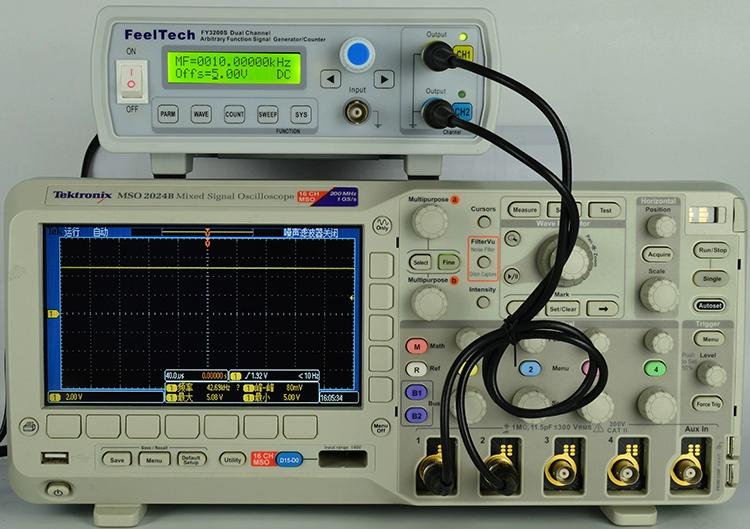

- DC level output (note: In DC output state, the AMPL parameter is invalid, and the DC level is changed by adjusting the Offs parameter)
- Multi functional upper computer software: support arbitrary waveform editing function, which can edit arbitrary waveform on a PC, download it to the instrument, and output the waveform; All functional parameters of the instrument support upper computer software control, and the communication protocol is publicly available, making your secondary development very simple.

Features:
- Using DDS direct digital synthesis technology to generate precise, stable, low distortion output signal.
- CH1 and CH2 completely symmetrical two channels, each channel can be independently set the parameters.
- Supports user-defined waveform, each arbitrary waveform memory depth 2048*12bits. 250MSa/s sampling rate.
- With pulse trains burst output function, manual trigger, internal CH2 trigger and external trigger three trigger modes that allow the unit to any output 1~ 1048575 arbitrary pulse trains.
- Measurement functions: 100MHz frequency meter and counter function.
- Signal output amplitude range is 10mVpp- 20Vpp, DC offset adjustment range is -10V to 10V, the resolution is 0.1V.

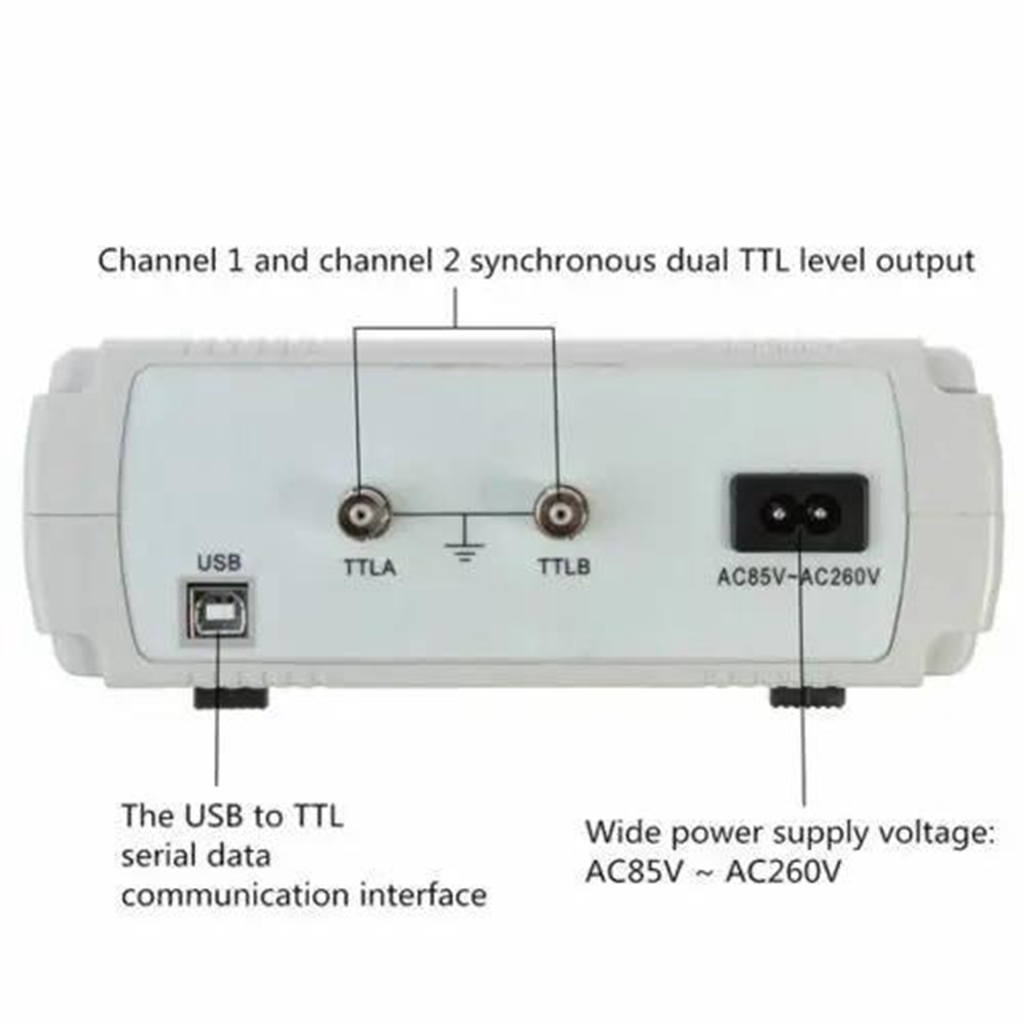

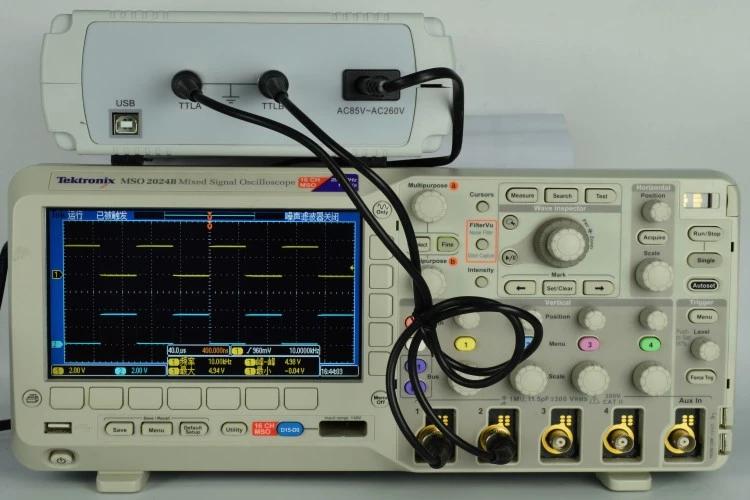

- Digital signal output function, CMOS output range 0~10V.
- Waveform generator up to 12 bits wide, the output waveform is more delicate, waveform distortion is low.
- With full CNC functions, display and adjust of current output signal parameters, such as the amplitude, offset, frequency, duty cycle, and the phase difference of two signals.
- After connected with computer, user can control signal generator functions and parameters, and can edit and download arbitrary waveform.
- High frequency accuracy and resolution: frequency accuracy up to 10^(-6) magnitude, total range frequency resolution is 10mHz.
- Tracking function: built-in frequency, amplitude, offset, duty cycle, waveform and other parameters follow function, easy to use.
- Scanning features: frequency linear sweep and logarithmic sweep function, start and end points of scanning can be set freely.
- Storage features: can store 20 groups parameters set by the user.
- Operation: key operation, LCD1602 display in English, directly digital setting parameters or continuous adjustment knob.
- Input over-voltage protection: extended power input range is AC85V to AC260V wide voltage.
- Output short-circuit protection: all signal output can work above 60s in load short-circuit situation.

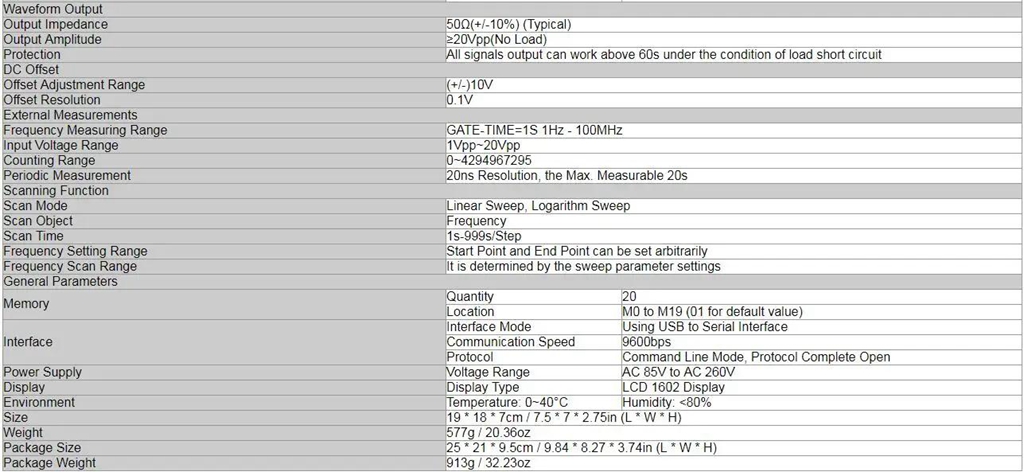

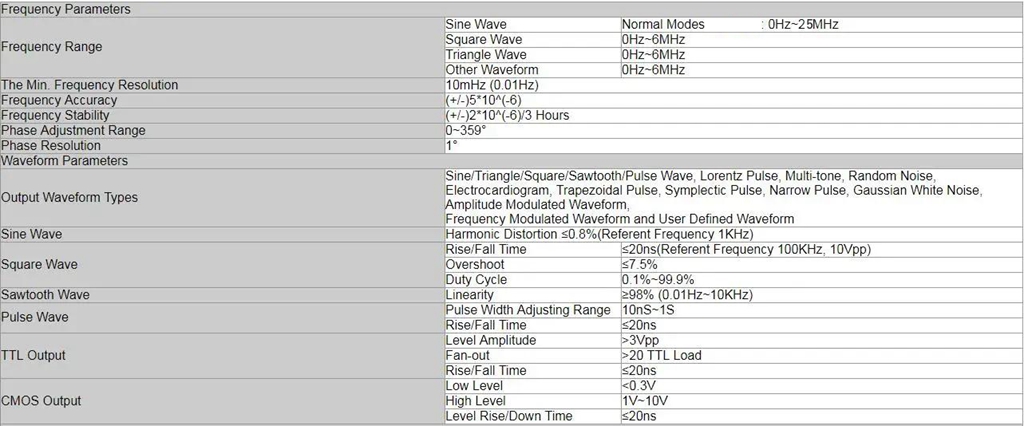

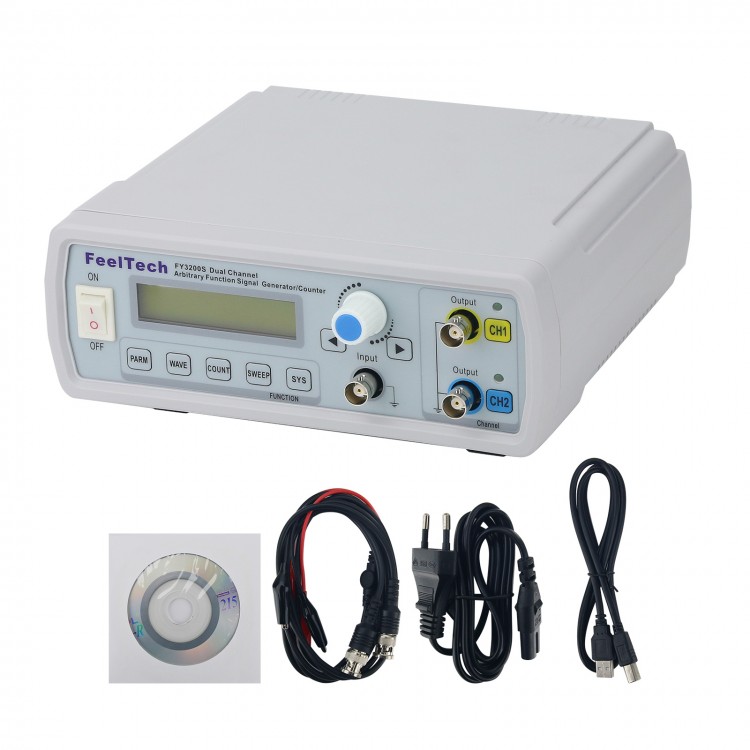

Package Included:
- 1 x Signal Generator
- 2 x BNC Test Clip
- 1 x USB Cable
- 1 x Power Cord
