FY602 Data Radio Control 500MW 433MHZ 10Km for FPV RC Airplane *2

FY602 Data Radio Control 500MW 433MHZ 10Km for FPV RC Airplane *2


FY-602, the Low power wireless module, is used as the wireless data transmission in short distance.With the small size, weight and power consumption and good stability and reliability, it has the function of bi-directional data sign transmission, test and control.

It is used for Wireless meter reading, such as water meter, electric meter and gas meter, parking meter, intellective card, electronic weighing apparatus, meter for checking on work attendance, queue wireless meter, building control, shipping company control, alarm system, intelligent equipment, Automatic data collecting system; Industrial remote control and remote test building automation, safety and security, powerhouse equipment wireless monitor, entrance control system, etc. It provide the USB power interface to be convenient for the mini computer and PC users if necessary.

FY-602 Features:

Ultra low power transmission
Transmission power: 500mW, high receiving sensitivity: -123dbm,

Low power consumption
Receiving current<45mA, transmission current<360Ma, sleeping current <1mA.

Saving power model
FY-602 have three saving power models: awaken from Hardware, awaken from COM Port, awaken from Air;

ISM frequency band, not requiring on application of frequency point
Carrier frequency of 433MHz,also capable of 868/915MHz.

High anti-interference and low BER (Bit error Rate)
Based on the GFSK modulation mode, it adopts the efficient communication protocol. The actual bit error rate of 10-5 ~ 10-6 can be achieved when channel bit error rate is

Long transmission distance
Within the range of visibility, the reliable transmission distance is(BER=10-3/1200bps) >3000m when the antenna height is greater than 3m (BER=10-3/9600bps).

Transparent data transmission
Transparent data interface is offered to suit any standard or nonstandard user protocol. Any false data generated in the air can be filtrated automatically (What has been received is exactly what has been transmitted). The charge time for receiving and sending <10ms

Multi-channel and speed
The standard FY-602 configuration provides 16 channels. to meet the multiple communication combination mode of the users. It has baud rate to be chosen such as 1200bps,2400bps,4800bps,9600bps,19200bps,38400bps. The wireless transmission rate is direct ratio with baud rate of interface to meet user’s equipment requirement.

High speed wireless communication and Large data buffer
When the speed rate in the air is quicker than interface’s, allowing to transmit unlimited length data at one time, when the speed rate is slower or equal the interface’s, allowing the transmission of 255 Bytes long data frames at one time for more flexible programming by users.

Intelligent data control and the user doesn’t need to prepare excessive programs
Even for semi duplex communication, the user doesn’t need to prepare excessive programs, only receiving/transmitting the data from the interface. FY-602 will automatically complete the other operations, such as transmission/receiving conversion in the air, control, etc.

High reliability, small and light
Single chip radio- frequency integrated circuit and single chip MCU are used for lessened peripheral circuits, high reliability, and low failure rate.

Watchdog monitor
Watchdog monitors the inner function, so it can change the traditional product structure and improve the product reliability.

Specifications:
- Model: FY601
- Transmission power: 500mW
- High receiving sensitivity: -123dbm
- Carrier frequency of 433MHz
- Radio Distance: 10Km
- Size: 63mm*43mm*15mm

FY-602 Package included:

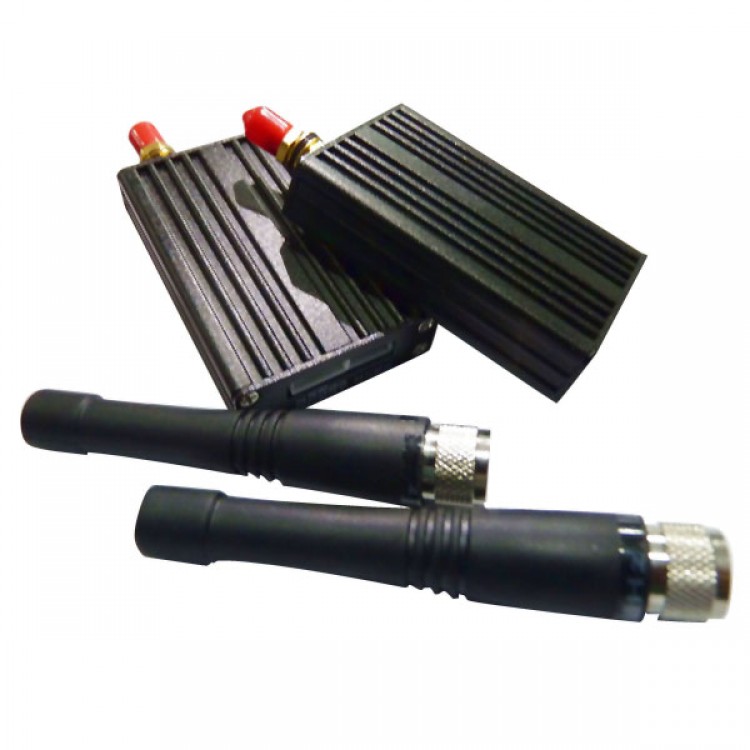

- FY602 Data Radio(Transmit power:500MW  Frequency: 433MHZ) *2
- Related Wirings
