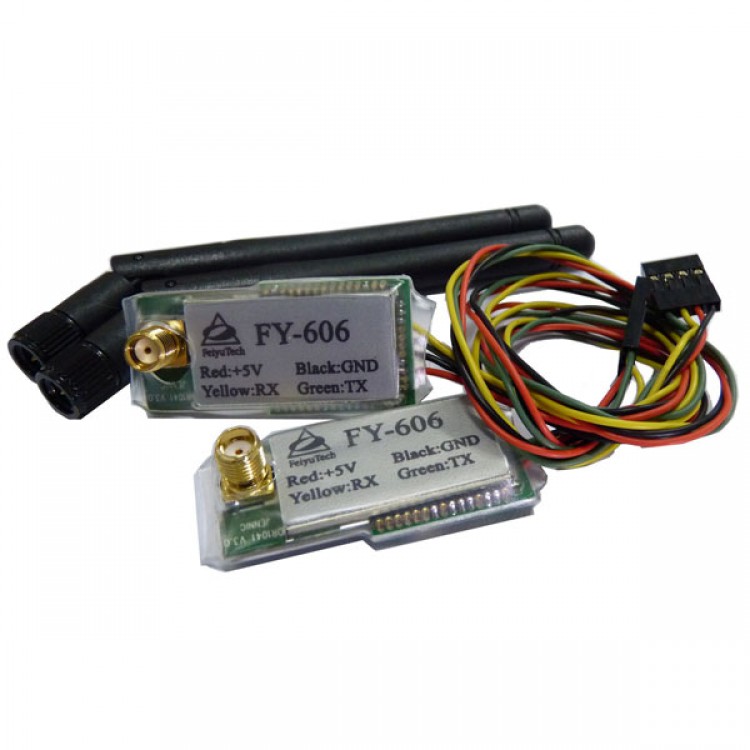

FY606 Data Radio Control 100MW 2.4GHZ 5Km for FPV RC Airplane *2

<sup>FY606 Data Radio Control 100MW 2.4GHZ 5Km for FPV RC Airplane *2


Specifications
- Model: FY606
- Transmitter Power: 100WM
- Radio Distance: 5Km
- Carrier frequency 2.4GHz
- Receiving sensitivity -100dBm
- 19200 Baud rate
- Serial TTL level

FY606 digital module, use ZIGBEE high power module for development
- Carrier frequency 2.4GHz
- Receiving sensitivity -100dBm
- TX power  +19dBm
- TX current <120mA
- RX current <45mA
- Broad environment, the maximum communication distance can reach 5km
- Power supply voltage: 4.2-6V  DC
- Volume: 45MM×22MM×8MM
- Weight: 10g

Interface features:
Serial TTL level
19200 Baud rate: 19200
Data bits 8, stop bits 1, no calibration
Interface connection:
Red:Input
Black: GND
Yellow: RX
Green: TX

FY-606 Package included:
- FY606 Data Radio(Transmit power:100MW; Frequency: 2.4GHZ) *2
- Related Wirings</sup>
