FY6600-60M 60MHz FeelTech DDS Dual Channel Function Arbitrary Waveform Generator

FY6600-60M 60MHz FeelTech DDS Dual Channel Function Arbitrary Waveform Generator

Product Description:
- FY6600 series Dual-channel Function / Arbitrary waveform generator is a set of Function Signal Generator, Arbitrary Waveform Generator, Pulse Generator, Analog / Digital modulator, VCO, Sweep, Counters and Frequency Meter and other functions in a high Performance, cost-effective, multi-function signal generator. Abundant shortcut keys and graphical user interface simplifies every operation. Users do not have to spend a lot of time to learn and familiar with the operation of the instrument, you can be skilled use. For education, research and development, production, testing, maintenance and other industries to provide a new choice.
- The instrument adopt the Direct Digital Synthesizer (DDS) technology and provide stable, precise, pure and low distortion signals. Surface mounting technology improves interference immunity and operational life span. Due to communications with extensive users and fully understanding to users’ practice, we regard users’ demand as the most important factor in R&D. Continuously innovation and listening users’ suggestions, we try to offer customers better products with higher cost performance.

Main Features:
- Adopt the Direct Digital Synthesizer (DDS) technology and provide stable, precise, pure and low distortion signals.
- 2.4 inch TFT Color LCD with 320×240 resolution, displaying parameters and graphics of the two channels at the same time.
- The instrument uses 14-bit high-speed D/A converter chip (5Vpp output quantization error is less than 1mV), 250MSa/s sample rate, 14bits vertical resolution.
- Can output up to 97 groups of functions / arbitrary waveform, contains 33 groups of preset waveforms and 64 groups of user-defined waveforms. Preset waveforms: Sine, Square (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, CMOS(0~10V), Four channels TTL, Exponential Rise, Exponential Fall, Noise, ECG, DC etc.
- Enable to store 64 arbitrary waveform data files, each one of waveform storage depth 8192 points * 14bits;
- Various modulation types: AM, FM, PM, ASK, FSK and PSK modulations.
- Sweep Function: It can sweep 4 properties of signals including frequency, amplitude, offset and duty cycle; It has Linear and Logarithm two sweep types; 0.01S~999.99S sweep time; Up, Down and roundtrip sweep directions.
- VCO Function (Voltage Control Output): Can be achieved by an external input signal：  voltage controlling frequency, voltage controlling amplitude, voltage controlling offset, voltage controlling duty cycle and PWM modulations.
- Burst Output Function: There has Manual Trigger, internal CH2 Trigger, and External Trigger for your options. It can output 1~1048575 pulse trains.
- 100M Frequency meter function: It can measure frequency, period, pulse width and duty cycle. Max. frequency workable is 100MHz and Min. frequency workable is 0.01 Hz.
- Counter Function: It has 2 coupling measure modes including DC coupling and AC coupling. This design can solve inaccuracy problem of AC coupling.
- Standard dual full functional channels which are equivalent to two independent generators.
- Channel SYNC Function: Support waveform copy and state copy between channels.
- Support two or more signal generators connected to achieve multi-channel output, the maximum support 16-channel synchronous output, the phase between each channel can be adjusted.
- Precisely adjust the phases of the two channels, Precision can be 0.1°.
- Minimum amplitude resolution can be up to 1 mV. Amplitude range is 0~20Vpp.
- Duty-cycle of each channel can be adjusted independently0.1%-99.9%, the adjusting resolution is 0.1%.
- -10V~+10V DC Offset function. Resolution 0.01V.
- Save function: It can save 20 sets user-set parameters and can be loaded at anytime.
- Communicating function: All functions can be controlled by PC program and the communication protocol is open for secondary development.
- Output short-circuit protection: All channels can work more than 60 seconds when the load is short-circuited.
- Provide powerful waveform editing PC software. Users can download arbitrary waveform to this instrument after edit through PC program which is included in user CD.
- Adopt ABS plastic shell with table type design. Use 100-240V (AC) wide range voltage power supply.
- Can choose our FYA2000S series or FPA1000 series powe

Technical Specification:
Unless specified, all specifications can be guaranteed if the following two conditions are met.
The generator has passed self-inspection.
The generator has been working continuously for at least 30 minutes    under the specified temperature (18℃~28℃).
All the specifications are guaranteed unless those marked with “typical”
- Mode:FY6600-60M
- Sine Wave Frequency Range:0~60MHz
- Square Wave Frequency Range:0~25MHz
- Triangle Wave Frequency Range:0~10MHz
- Pulse Wave Frequency Range:0~10MHz
- TTL Digital Wave Range:0~10MHz
- Arbitrary Wave Frequency Range:0~10MHz
- Minimum pulse width:20ns(All models of pulse wave minimum width can reach 20ns)
- Min. Resolution on all frequency range:1μHz (Min. resolution can reach 1μHz on all frequency range to ensure adjusting accuracy under high frequency. For example, it can output 10.000000000001MHz signal).
- Accuracy:±20ppm
- Stability:±1ppm/ 3hours

Waveform Characteristics:
- Waveforms:Sine, Square (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, Sawtooth Wave, CMOS, Four channels TTL, DC, Half wave, Full wave, Positive Step, Inverse Step, Positive Exponent, Inverse Exponent, Lorenz Pulse, Multitone, Noise, ECG, Trapezoidal - Pulse, Sinc Pulse, Narrow Pulse, Gauss White Noise, AM, FM, and other 64 sets customer-defined waveform.
- Non-Volatile Storage:Can store 64 user-defined arbitrary waveforms, (8K 14bits) * 64
- Waveform Length:8192 points * 14bits
- Sampling Rate:250MSa/s
- Vertical Resolution:14 bits
- Sine:Harmonic Suppression:≥50dBc(<1MHz); ≥45dBc(1MHz~20MHz);
    Total Harmonic Distortion:<0.5% (20Hz~20kHz,0dBm)
- Square:Rise/Fall Time:≤7ns (VPP<5V)
    Overshoot:≤5%
    Duty Cycle:0.1%~99.9% (Resolution 0.1%)
- Sawtooth wave:Linearity:>99% (0.01Hz~10kHz)

Output characteristics:
- Amplitude (VPP):Frequency≤10MHz: 1mVpp~20Vpp;10MHz<Frequency≤20MHz: 1mVpp~10Vpp;
- Frequency>20MHz:1mVpp~5Vpp;
- Resolution:1mV
- Amplitude Stability :±0.5%/ 5 Hours
- Amplitude flatness:±2.5%(<10MHz);±5%(>10MHz);

Waveform Output:
- Impedance:50Ω±10%（Typical）
- Protection:All channels can work more than 60 seconds when the load is short-circuited.

DC Offset:
- Offset Range:Frequency≤20MHz: ±10V;  Frequency>20MHz: ±2.5V;
- Offset Resolution:1mV

Phase Feature:
- Phase range:0~359.9°
- Phase resolution:0.1°

TTL Output:
- TTL Level Amplitude:>3Vpp
- Fan-out:>8 TTL LOAD
- Rise/Fall Time:≤10ns

CMOS Output:
- Low Electric Level:<0.3V
- High Electric Level :1V~10V
- Rise/Fall Time:≤18ns

External Measurement:
- Function    Frequency, Period, Positive/Negative Pulse Width, Duty Cycle
- Input Voltage Range:1Vpp~20Vpp
- Frequency Meter:Resolution:0.01Hz (Gate Time = 100S)
    Range:0.01Hz~100MHz
    Sensitivity    Gate:Time 3 grades (1S, 10S, 100S) adjustable
- Counter:Range:0-4294967295
    Coupling:DC, AC
    Working Mode:Manual
- Period:Measurement Range:5ns ~ 20s:DC coupling measurement
- Pulse Width:Measurement Range:0ns ~ 20s
    Resolution:5ns
- Duty Cycle:Range (Display):0% ~ 100%

Sweep:
- Carrier Waveform: Sine, Square, Ramp, Arbitrary (except DC)
- Sweep Type:Linear or Logarithm
- Sweep Direction:Up, Down and roundtrip sweep directions;
- Sweep Objects:Frequency, Amplitude, Offset, Duty Cycle
- Sweep Time:0.01S~999.99S/Step
- Setting range:Starting position and Finishing position can be set arbitrarily.
- Sweep Range:Decided by Parameters setting.

VCO (Voltage Control Output):
- Modulation signal range to input:0~5V
- VCO signal frequency range:0-1000Hz
- VCO control object:voltage controlling frequency (VCF), voltage controlling amplitude (VCA), voltage controlling offset, voltage controlling duty cycle.
- VCO special function:Can Amplitude Modulate (AM) or Frequency Modulate (FM) by external analog signal.

Modulation:
Modulation Type:AM, FM, PM, ASK, FSK, PSK
Carrier Waveform:Sine, Square, Triangle, Ramp, Arbitrary waveform (Except DC)
- AM
Source:Internal (CH2) / External (VCO IN Port)
Modulating Waveform:Sine, Square, Triangle, Ramp, Arbitrary waveform
Depth:0% to 100%
Modulating Frequency:Internal : 1μHz~1MHz;  External: 1μHz~2KHz;
- FM
Source:Internal (CH2) / External (VCO IN Port)
Modulating Waveform:Sine, Square, Triangle, Ramp, Arbitrary waveform
Modulating Frequency:Internal : 1μHz~1MHz;  External: 1μHz~2KHz;
- PM
Source:Internal (CH2) / External (VCO IN Port)
Modulating Waveform:Sine, Square, Triangle, Ramp, Arbitrary waveform
Phase Deviation:0° to 360°
Modulating Frequency:Internal : 1μHz~1MHz;  External: 1μHz~2KHz;
- ASK
Source:Internal (CH2), External (ASK IN Port), Manual
Modulating Waveform:Square with 50% duty cycle.
Key Frequency:1μHz~10MHz
- FSK
Source:Internal (CH2), External (FSK IN Port), Manual
Modulating Waveform:Square with 50% duty cycle.
Key Frequency:1μHz~10MHz
- PSK
Source:Internal (CH2), External (PSK IN Port), Manual
Modulating Waveform:Square with 50% duty cycle.
Key Frequency:1μHz~10MHz

Burst Function:
- Carrier Waveform:Sine, Square, Ramp, Arbitrary (except DC)
- Burst Count:1~1048575
- Trigger Source:Manual, Internal, External (AC/DC)

General Specifications:
- Display:Type:2.4 inch, TFT Color Display.
- Save & Load:Amount:20
    Position:01 to 20 (01 for start default value)
- Interface:Type:USB to Serial interface
    Protocol:Command line mode, providing communication protocols.
    Communicating Speed:9600bps (Industrial standard)
- Power:Voltage Range:AC100V~240V
- Technic:SMD, LSI, Reliable and durable
- Buzzer:Can be turned on/off by setting.
- Operation    Buttons and knob continuously.
- Environment:Temp.: 0~40℃, Humidity: ﹤80%
- Size:200mm * 190mm * 90mm (L * W * H)
- Weight:850g
- Package Size:25cm * 21cm * 10cm (L * W * H)
- Package Weight:0.98kg(Main engine, accessories and packing materials)

FY6600 series signal generator can not only use independently, but also through the serial port control, communication protocol open, PC software free of charge. The software has the function windows of the waveform window, the text window and the control window, and the simple and clear operation interface greatly improves the user operation experience.

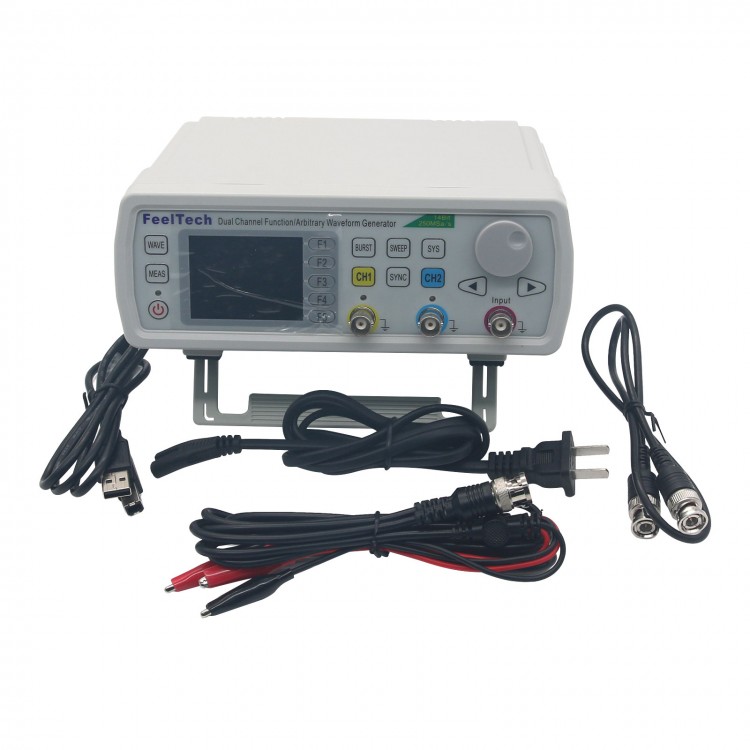

Package List:
- 1 x DDS Signal Generator
- 1 x Power Cable
- 1 x USB Data Cable
- 2 x BNC-Clip Cable (Signal output cable)
- 1 x BNC-BNC Cable (Signal output cable)
- 1 x CD (Contain the user manual and PC software)
- 1 x Warranty Card
