Description:
FY6800 series Dual-channel Function / Arbitrary waveform generator is a set of Function Signal Generator, Arbitrary Waveform Generator, Pulse Generator, Analog / Digital modulator, VCO, Sweep, Counters and Frequency Meter and other functions in a high Performance, cost-effective, multi-function signal generator. Abundant shortcut keys and graphical user interface simplifies every operation. Users do not have to spend a lot of time to learn and familiar with the operation of the instrument, you can be skilled use. For education, research and development, production, testing, maintenance and other industries, it is your best choice.

The instrument adopts the Direct Digital Synthesizer (DDS) technology and provides stable, precise, pure and low distortion signals. Surface mounting technology improves interference immunity and operational life span. Due to communications with extensive users and fully understanding to users’ practice, we regard users’ demand as the most important factor in R&D. Continuously innovation and listening users’ suggestions, we try to offer customers better products with higher cost performance.

Features:
- Adopt the Direct Digital Synthesizer (DDS) technology and provide stable, precise, pure and low distortion signals
- Adopt ABS plastic shell with table type design. Use 100-240V (AC) wide range voltage power supply
- The standard 3-pin power plug increases the grounding protection and effectively eliminates the leakage current on the BNC terminal
- 2.4 inch TFT Color LCD with 320×240 resolution, displaying parameters and graphics of the two channels at the same time
- The instrument uses 14-bit high-speed D/A converter chip (5Vpp output quantization error is less than 1mV), 250MSa/s sample rate, 14bits vertical resolution
- Can output up to 97 groups of functions / arbitrary waveform, contains 33 groups of preset waveforms and 64 groups of user-defined waveforms. Preset waveforms: Sine, Square (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, CMOS(0~10V), Four channels TTL, Exponential Rise, Exponential Fall, Noise, ECG, DC etc.
- Enable to store 64 arbitrary waveform data files, each one of waveform storage depth 8192 points * 14bits
- Various modulation types: AM, FM, PM, ASK, FSK and PSK modulations
- Sweep Function: It can sweep 4 properties of signals including frequency, amplitude, offset and duty cycle; It has Linear and Logarithm two sweep types; 0.01S~999.99S sweep time; Up, Down and roundtrip sweep directions
- VCO Function (Voltage Control Output): Can be achieved by an external input signal：voltage controlling frequency, voltage controlling amplitude, voltage controlling offset, voltage controlling duty cycle and PWM modulations
- Burst Output Function: There has Manual Trigger, internal CH2 Trigger, and External Trigger for your options. It can output 1~1048575 pulse trains
- 30M Frequency meter function: It can measure frequency, period, pulse width and duty cycle. Max. frequency workable is 100MHz and Min. frequency workable is 0.01 Hz
- Counter Function: It has 2 coupling measure modes including DC coupling and AC coupling. This design can solve inaccuracy problem of AC coupling
- Standard dual full functional channels which are equivalent to two independent generators.
- Channel SYNC Function: Support waveform copy and state copy between channels
- Support two or more signal generators connected to achieve multi-channel output, the maximum support 16-channel synchronous output, the phase between each channel can be adjusted
- Precisely adjust the phases of the two channels, Precision can be 0.01°
- Minimum amplitude resolution can be up to 1 mV. Amplitude range is 0~20Vpp
- Duty-cycle of each channel can be adjusted independently0.01%-99.99%, the adjusting resolution is 0.01%
- -10V~+10V DC Offset function; Resolution 0.001V
- Save function: It can save 20 sets user-set parameters and can be loaded at anytime.
- Communicating function: All functions can be controlled by PC program and the communication protocol is open for secondary development
- Output short-circuit protection: All channels can work more than 60 seconds when the load is short-circuited.
- Provide powerful waveform editing PC software. It supports user defined waveform editing and visual control of various parameter indicators
- Can choose our FYA2000S series or FPA1000 series power amplifier to output 20W~100W signal in DC-10MHz width without any distortion

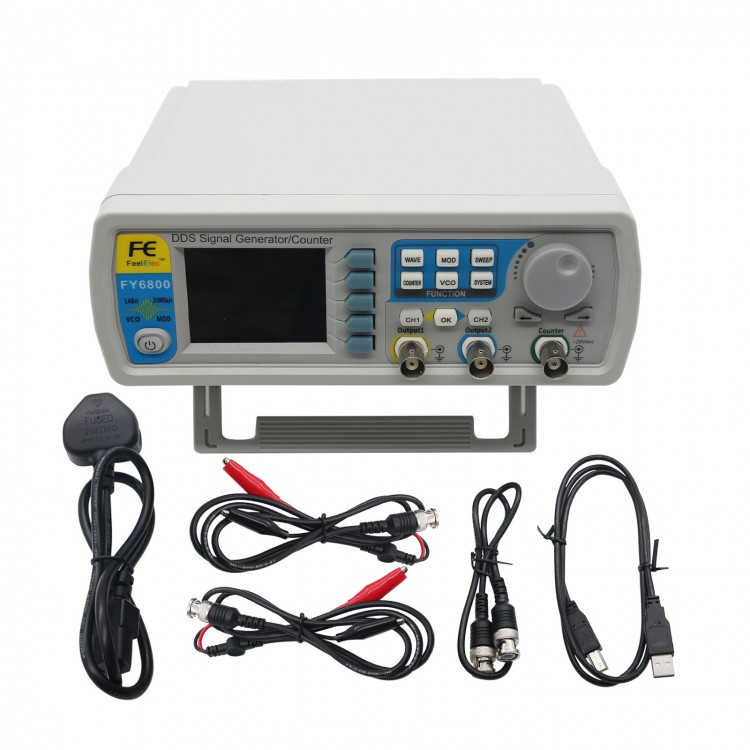

Package Included:
1 x FY6800-30M DDS Signal Generator
1 x Power Cable
1 x USB Data Cable
1 x BNC-BNC Cable (Signal output cable)
2 x Q9 Clip Cables (Signal output cable)
