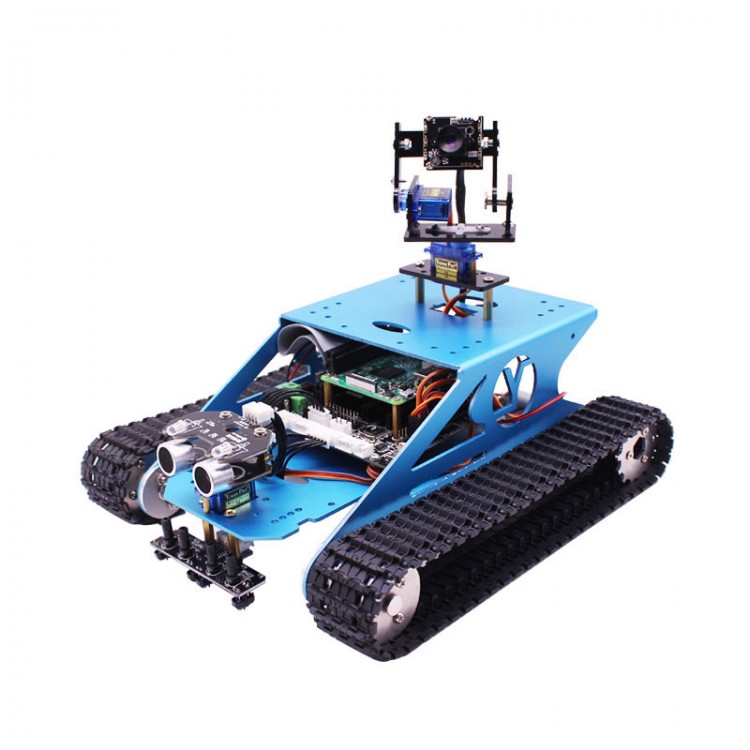

G1 Tank Robot Kit Aluminum Alloy Rover Robot Car Mobile Robot with Camera for Raspberry PI

G1 Tank Robot Kit Aluminum Alloy Rover Robot Car Mobile Robot with Camera for Raspberry PI

Features:
- PTZ HD camera, support 480P resolution, can manually adjust the focal length.
- The camera support two formats: MJPEG, YUYV (default), we provide the config method of two format.
- 2mm thickened aluminum alloy, high quality and high power 370 motor.
- The whole design is a stereoscopic structure. The motor can be fixed by screw without motor support.
- 4WD smart robot shield also support four popular controllers; Arduino UNO, Raspberry PI, STM32, 51mcu.
- Provide detailed tutorial, quick-responding technical support.

Technical Parameters:
- Input: 4 channel tracking module, ultrasonic module, button, HD camera
- Power Supply: requires 3.7V, 3*18650 batteries (Batteries not included)
- Pan/tilt: SG90 servo
- Power solution: LM2596s
- Motor: 370 motor x 2
- Security: low power, converse connection, restart when stalling
- Programming: Python, C language
- Output: DC motor, buzzer, servo pan/tilt, RGB LED, camera pan/tilt
- Endurance time: >120mins
- Range solution: ultrasonic module
- Motor driver: TB6612FNG
- RC mode: Bluetooth
- OS: Linux, Win10_IOT

Specifications:
- G.W.: 1.2 kg
- Size after Assembling: 245x234x178mm (9.65x9.21x7.01in)

Package Included:
- 1 x 4-Channel Tracking Sensor
- 1 x 4WD Expansion Board
- 1 x Ultrasonic Sensor
- 1 x Colorful Car Light
- 2 x Caterpillar Tracks
- 1 x 18650 Battery Box
- 1 x Bluetooth 4.0 Module
- 1 x 12.6V Charger
- 2 x 370 Motors
- 1 x Servo Package
- 1 x 6pin Flat Cable
- 2 x 4pin Flat Cables
- 1 x 40pin Flat Cable
- 2 x Active Wheel Packages
- 2 x Drive Motor Packages
- 1 x Copper Pillar & Screw & Nut Package
- 2 x Separation Pillars
- 4 x Rivets
- 1 x Plastic Gasket
- 1 x Screw Driver
- 1 x Manual
- 1 x HD Camera
- 2 x SG90 Servos
- 1 x Fixed Frame
- 1 x USB Cable
- 2 x 4mm Couplings
- 5 x Jumper Caps
- 1 x Aluminum Stereo Chassis

Note: Please note that Raspberry Pi 3B+ module is not included in this package. And self assembling is needed. Thank you!
