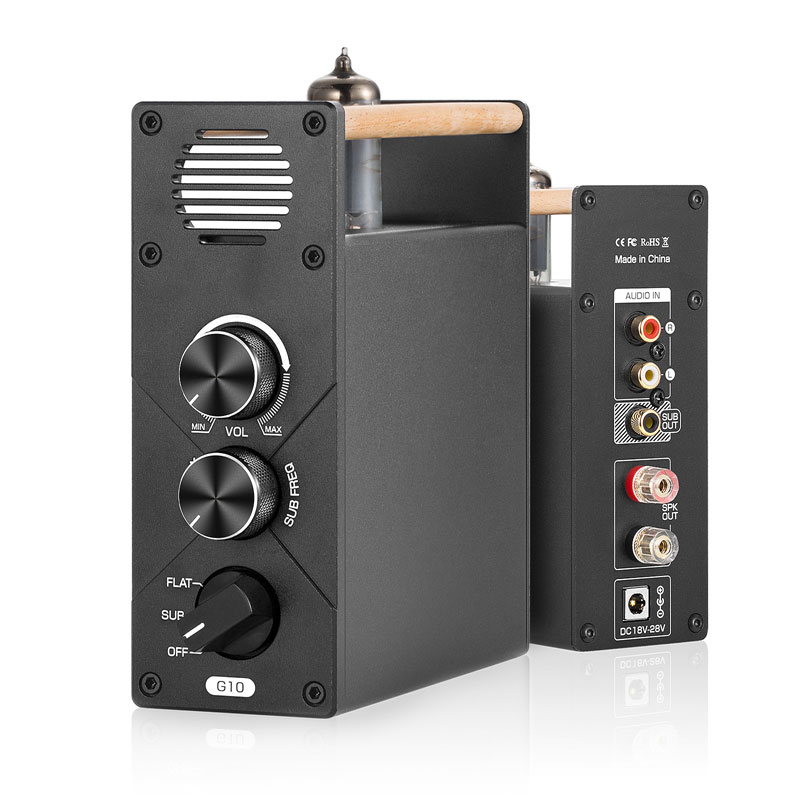

G10 Mono Amplifier Vacuum Tube Amplifier 200W Hifi Subwoofer Amplifier/Full Frequency Power Amp
Attention:

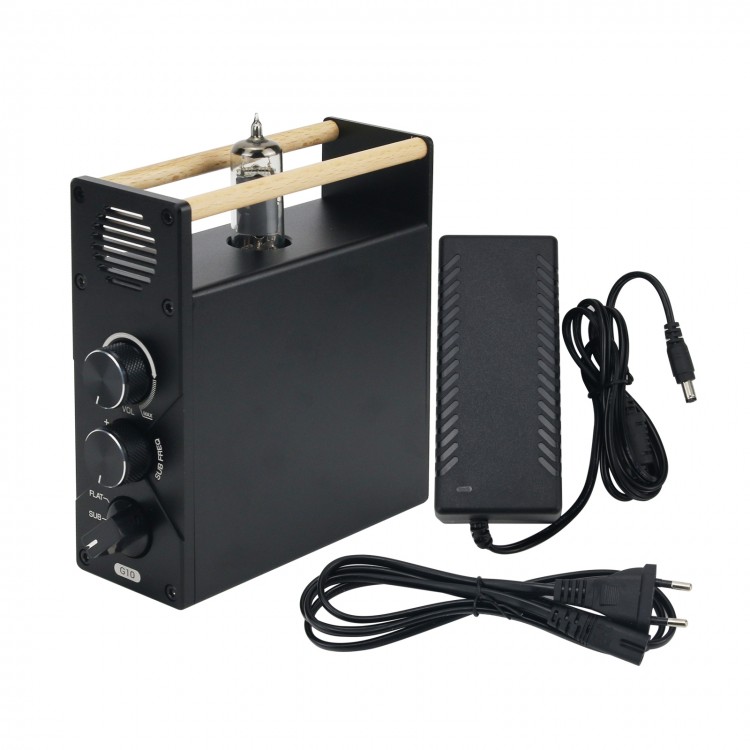

1. The maximum output power of the amplifier can reach 200W, but in order to provide the most cost-effective products and meet the requirements of ordinary users, the amplifier is equipped with a 24V/4.5A power supply. If you want the maximum output power, please prepare a larger power supply by yourself.
Features:

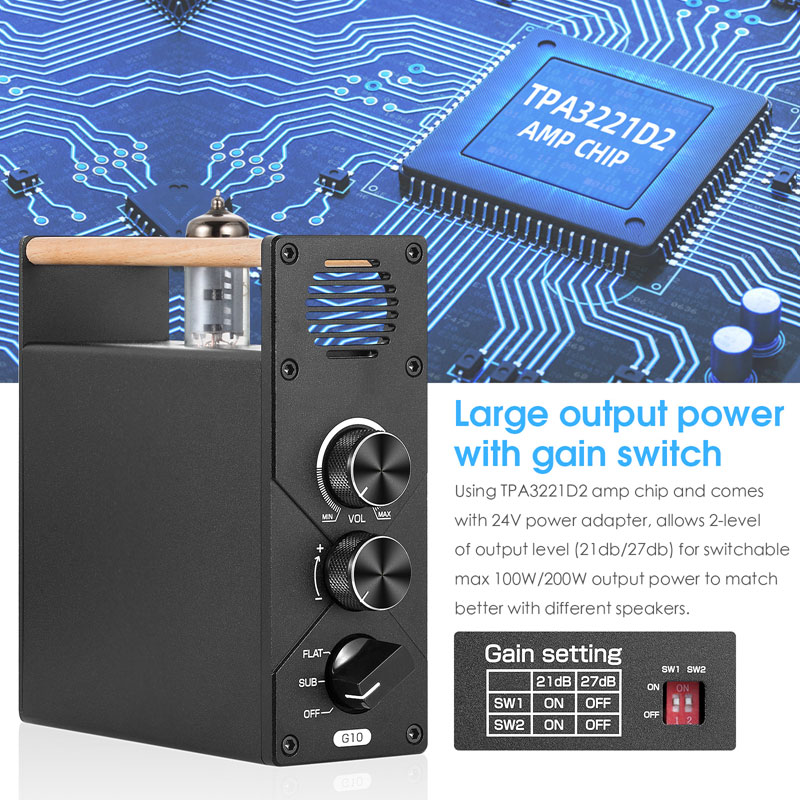

- Large output power with gain switch: Using TPA3221D2 amp chip and comes with a 24V power adapter, allows 2-level of output level (21db/27db) for switchable maximum 100W/200W output power to match better with different speakers

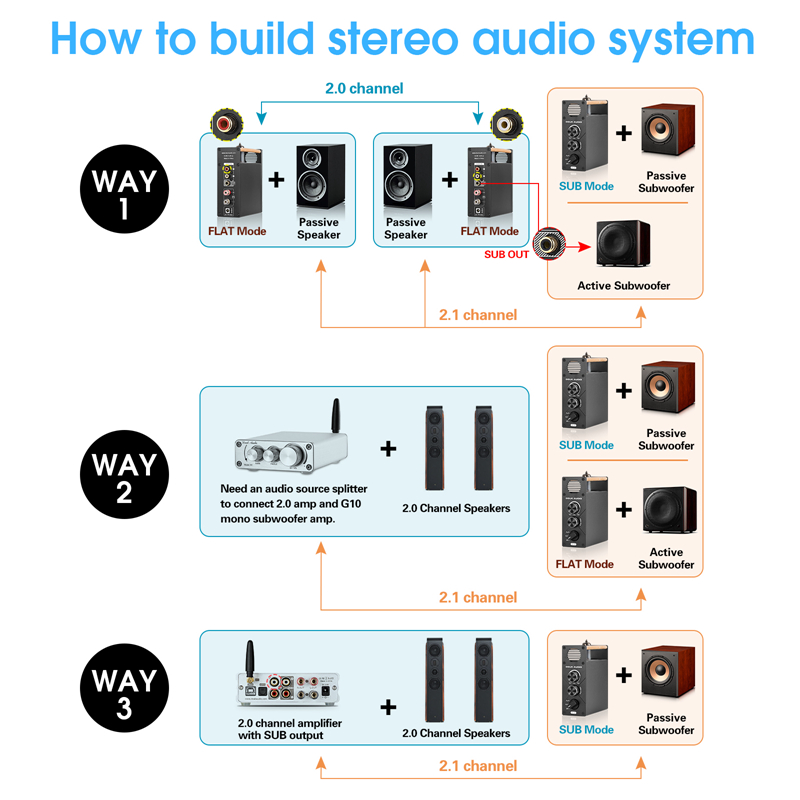

- Mono channel with low frequency output: With SUB/FLAT switch, G10 can works as a full frequency amp and a subwoofer amp, and add SUB OUT ports to directly connect active subwoofer. 2pcs G10 can drive left and right channel independently to avoid mutual interference, easy to build 2.0/2.1channel system

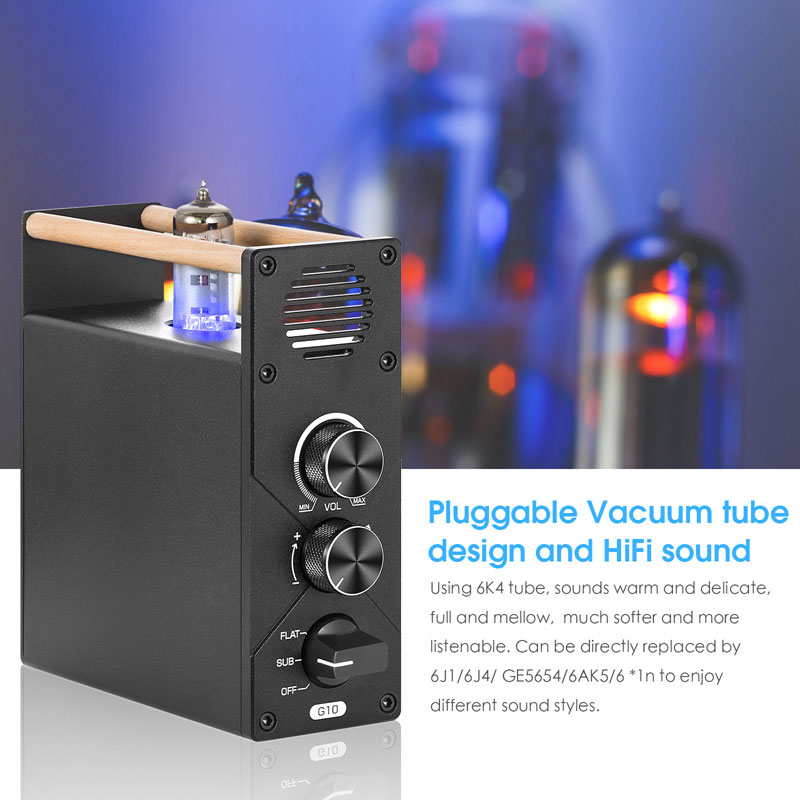

- Pluggable Vacuum tube design and HiFi sound: Using 6K4 tube, sounds warm and delicate, full and mellow, much softer and more listenable. Can be directly replaced by 6J1/6J4/GE5654/6AK5/6*1N to enjoy different sound styles
- Unique appearance and proper size:Vertical placement design more beautiful and fashionable, black solid aluminum chassis looks cool and elegant, both enjoyment of auditory and visual, very suitable for the audiophiles who pursue HiFi sound
- Perfect design and powerful function: Using reasonable and advanced circuit with high-quality components. With SUB frequency adjustment (40-200Hz), built-in speaker protection circuit, low-pass filter, no audible noise even at high power output
Product Parameters:

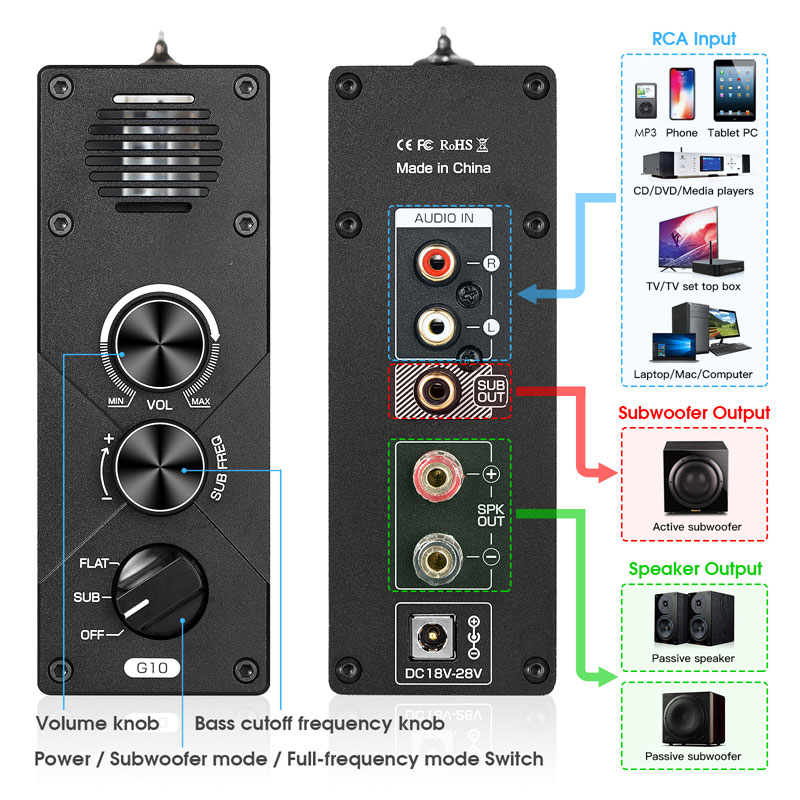

- Audio input: stereo L/R RCA
- Audio output: banana speaker jacks / Low frequency (RCA)
- Max. power output: 100W (Low Gain) / 200W (High Gain)
- Output impedance: 2-8Ω
- Full frequency response: -2dB (20Hz-20KHz)
- Bass cut-off frequency adjustment range: 40Hz-200Hz
- THD: 0.1%
- SNR: 98dB
- Input sensitivity: 2V
- Working voltage: DC 18-28V
- Dimensions: 50*120*138mm / 1.97*4.72*5.43" (W*D*H)
- Net weight: 600g / 1.32lb
Package Included:
- 1 x Set of Mono Amplifier
Note:
- It is assembled and ready to use.
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
