GA1062CAL Digital Storage Oscilloscope 60MHz 1G 2 Channels Digital Oscilloscope DSO
Description:
- The volume exquisite and it is convenient for carrying;
- Use Colored TFT LCD, the waveform display is clearer and stable;
- Dual channel-channel bandwidth 60MHZ-100MHZ;
- The real time sampling rate is 1GSas;
- Memory depth of ADS1000CAL is 40Kpts;
- Trigger Models Edge, Pulse, Video, Slope, Alternative and Delay trigger modes;
- Unique Digital Filter function and Waveform recorder function;
- Pass/Fail function;
- Thirty two parameters Auto measure function;
- Cursor measure covers Manual mode, Track mode and Auto mode;
- Channel waveform and its FFT waveform display on split screen;
- Pop-up Menu display pattern is more convenient for users using it;
- Multiple Language User Interface;
- Support multilingual online help system;

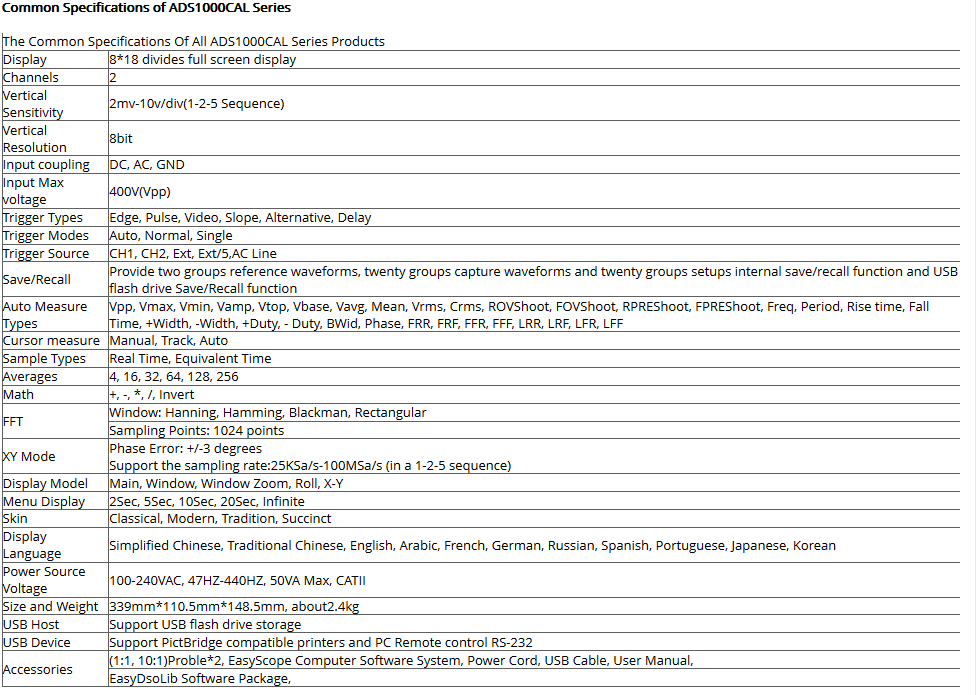

Specification:
- Model : ADS1062CAL
- Bandwidth: 60MHZ
- Sampling Rate: Single Channel: 1GSa/s; Double Channel: 500MSa/s
- Equivalent Sampling Rate: 50GSa/s
- Memory Depth: Single Channel: 18Kpts; Double Channels: 9Kpts/CH
- Rise Time: <5.8ns
- Input Impedance: 1M ohm 17pF
- Sec/div Range: 5ns/div-50s/div

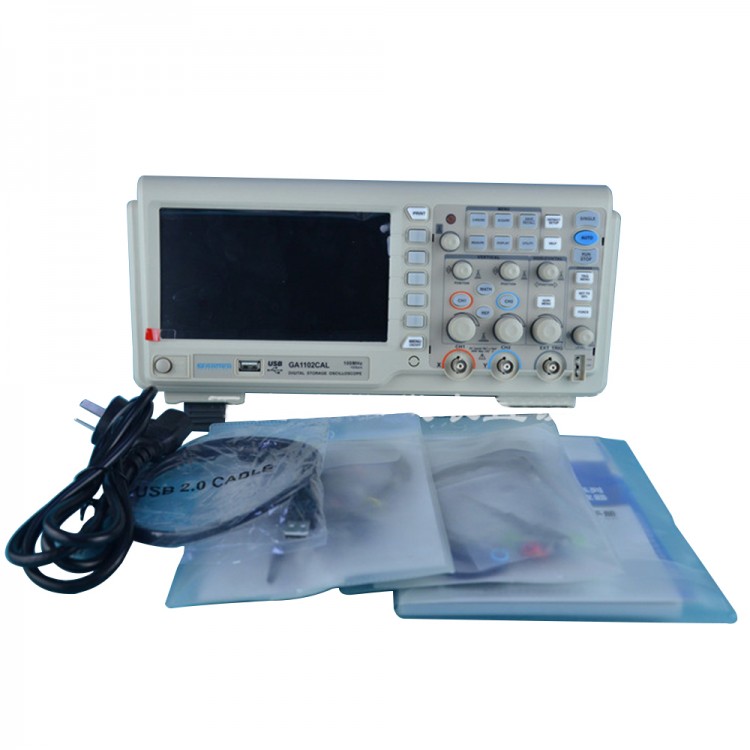

Package included:
- 1 x Digital Oscilloscope
- 1 x Power Cord
- 2 x Probe
- 1 x CD and User Manual
- 1 x USB cable
