GAD Mini H1 Tube Amplifier Portable Digital Music Player DSD Lossless CS43198 Audio Diy For Hi-End

GAD Mini H1 Tube Amplifier Portable Digital Music Player DSD Lossless CS43198 Audio Diy For Hi-End

Description:
It can play almost all lossless formats, 192k 32b audio master quality, 5.1 DTS WAV multi-channel without conversion, DSD music hard decoding.

Advantages:
- CS43198
- Real Lineout output
- Imported audiophile double triode tube, 30V power supply
- Positive and negative 12V power supply headphone amp, and op amp can be replaced
- Enthusiast non-inductive capacitor inter-stage coupling, non-electrolytic coupling output, power-on delay protection circuit output, the index reaches HIFI, high thrust

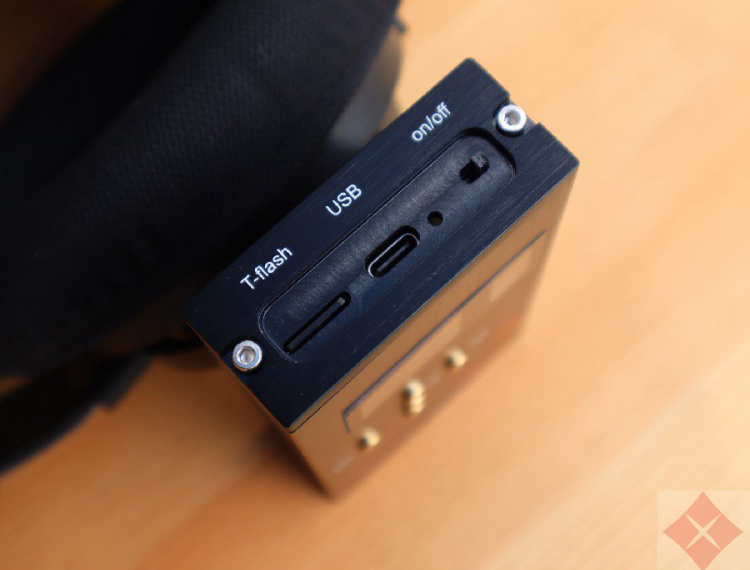

- USB TYPE-C data port
- Internal 5600MAH lithium battery, 6-hour endurance time

Features:
- DSD hardware solution player
- Support CUE direct adaptation and playing! No need for computer segmentation
- Support direct analysis and playing of uncompressed DSD ISO DSF DFF! No need for computer division
- Support USB sound card! USB port is not only for charging
- Support firmware upgrades
- Simple design with five buttons
- Support folder operation, simple to select songs
- Most of songs don't need to be converted
- The circuit design benefits from electronic tube and buffer IC op amp that are good at voltage amplification, and the deep inter-stage loop-free design
- Make the sound of the whole machine behave natural, unconstrained, and charming, and the sound and music performance can be compared with non-pure IC op amp players
- Even if you use your high, medium and low impedance headphones, the headphone port outputs 14V slew, 300 ohms and below direct push. 44.1k 16bit -94dB sound-to-noise ratio

Download Hardware & Instructions:
https://pan.baidu.com/s/1pLoSrzl

Attention:
- Support for Apple AAC ALAC lossless formats, adapt to various use environments.
- Support single cycle, random play, repeat all. Choose the modes at your will.

Package Included:

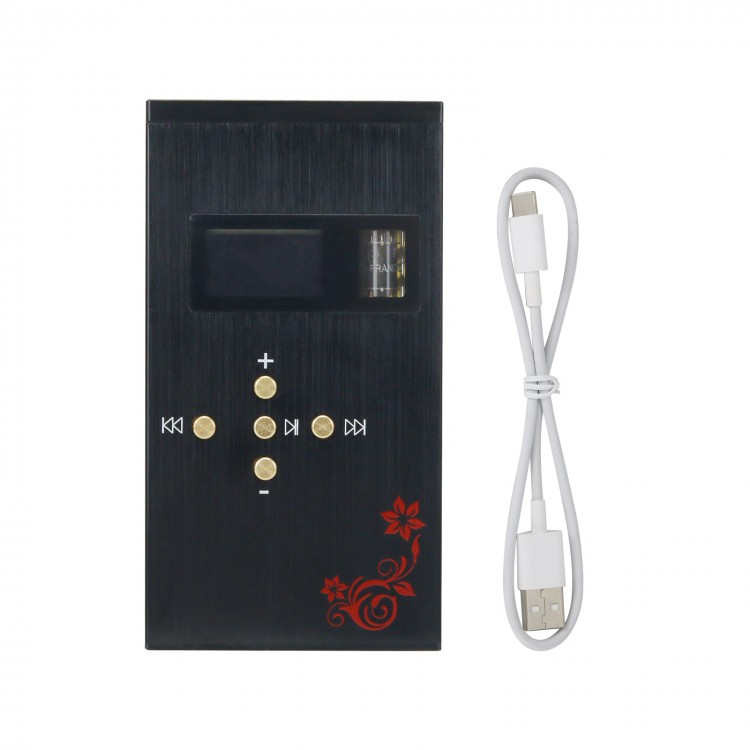

- 1 x Set of Digital Music Player

Note:
- Headphones pictured is not included, for demonstration purposes only. Thank you for your understanding!

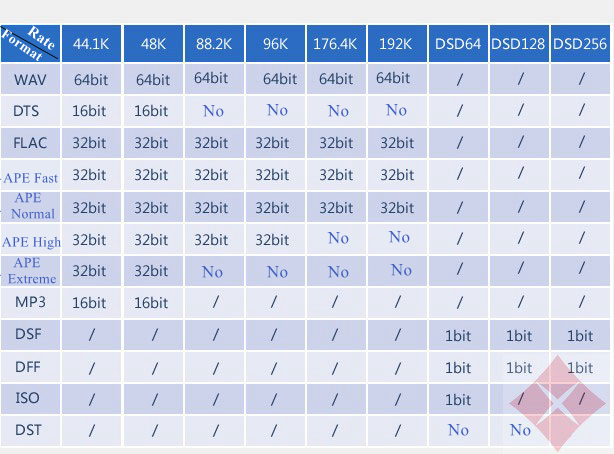

Supported Formats:

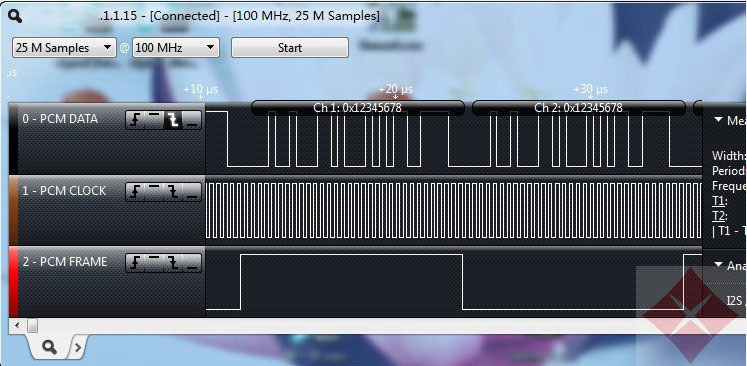

Digital Signal (Real Audio Master 192K 32bit Output):

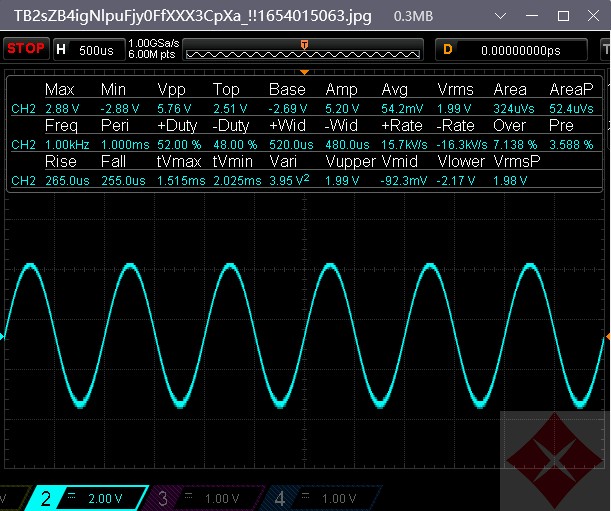

LineOut Level (Standard 2Vrms Lineout Level):


FAQ:
Q1: Is there a DIY kit to buy?
A1: No, there isn't.

Q2: What is the largest TF card supported?
A2: Theoretical 2T, it is limited to the maximum capacity of current TF card, so the maximum support is 256G.

Q3: What's the size:
A3: 105 x 58 x 24mm (LxWxThickness).
