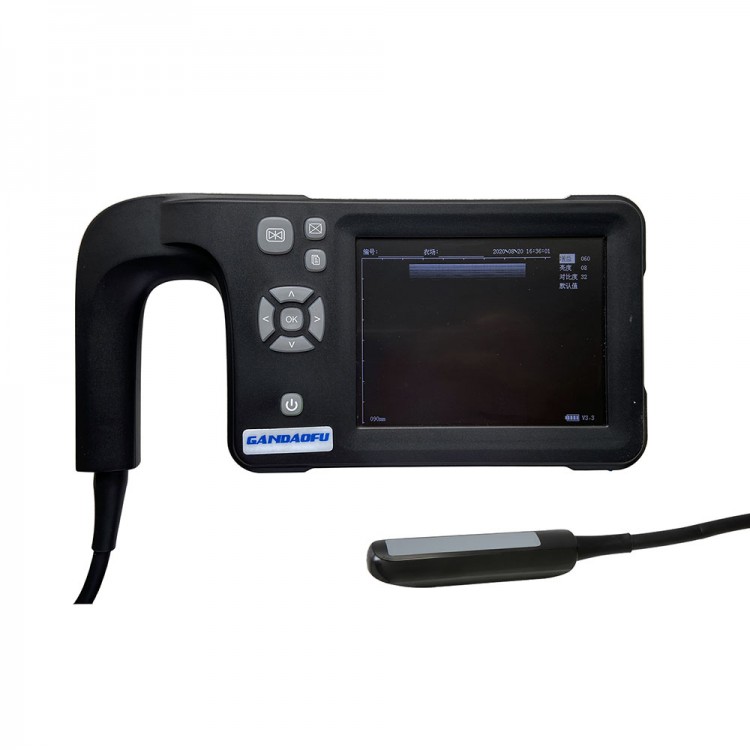

GANDAOFU C20 Portable Veterinary Ultrasound Scanner Waterproof Dustproof With 6.5MHz Rectal Probe

Availability: In stock, usually dispatched in 1 business day

  • Price:$1,573.36
  • Price in reward points: 15734 Reward Points: 157
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $1,541.89 $1,510.43 $1,463.22 $1,400.29 Contact US
Quantity:

GANDAOFU C20 Portable Veterinary Ultrasound Scanner Waterproof Dustproof With 6.5MHz Rectal Probe

Features:

- 5.5" HD LCD monitor
- 8G memory storage
- 512-frame movie playback function
- 6.5MHz rectal linear array probe
- Quickly measure various calculation functions such as circumference area and gestational age
- Waterproof and dustproof design of the whole machine
- Lightweight and easy to carry

Technical Parameters:
- Display: 5.5" TFT
- Probe: 6.5MHz animal rectal probe
- Detection depth: ≥180mm
- Blind area: ≤3 mm
- Resolution: horizontal ≤2 mm (depth ≤80mm); vertical ≤1mm (depth ≤80mm)
- Geometric position accuracy: horizontal ≤5%; vertical ≤5%
- Magnification: 1.0, 1.2, 1.5, 2.0
- Scanning method: electronic linear array
- Operating frequency: 4.0-8.0 MHz
- Display mode: B, B+B, BM, M
- Measurement: distance, circumference, area, volume
- Image grayscale: 256 levels
- Scanning lines: 512 lines/frame
- Frame rate: 30 frames/sec
- Pseudo-color processing: red, yellow, blue
- Digital scan converter: 512x512x8bits
- Machine size: 240x117x40mm
- Machine weight: 854g
- Power consumption: 7W

Package Included:
- 1 x Set of Ultrasound Machine

Note:
- Batteries are not included. 4pcs 18650 batteries/3000mAh 4.2V are needed.
