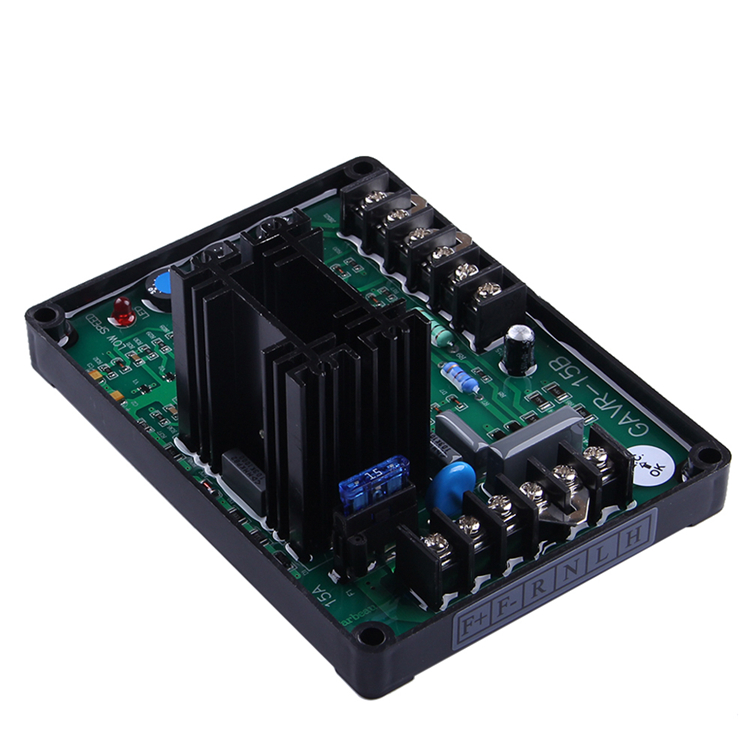

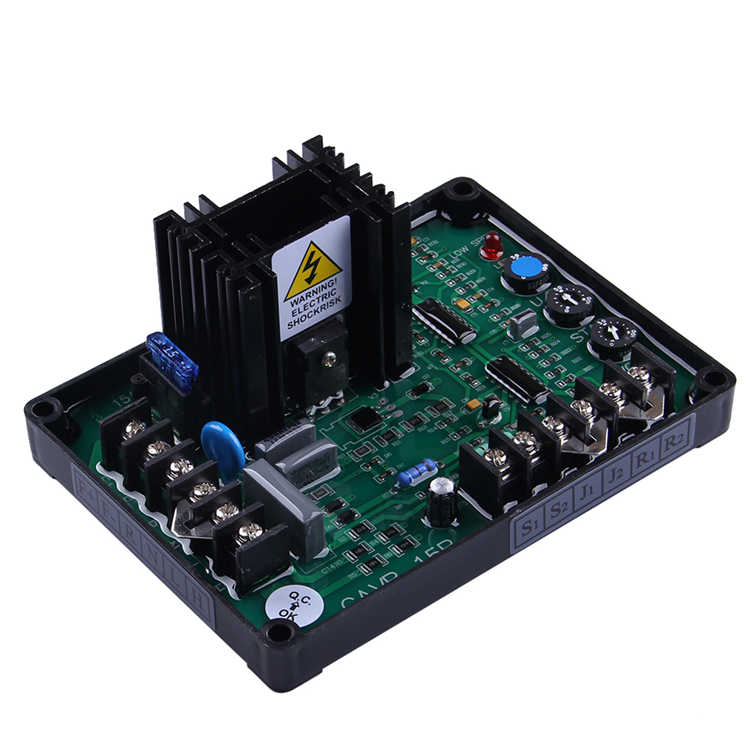

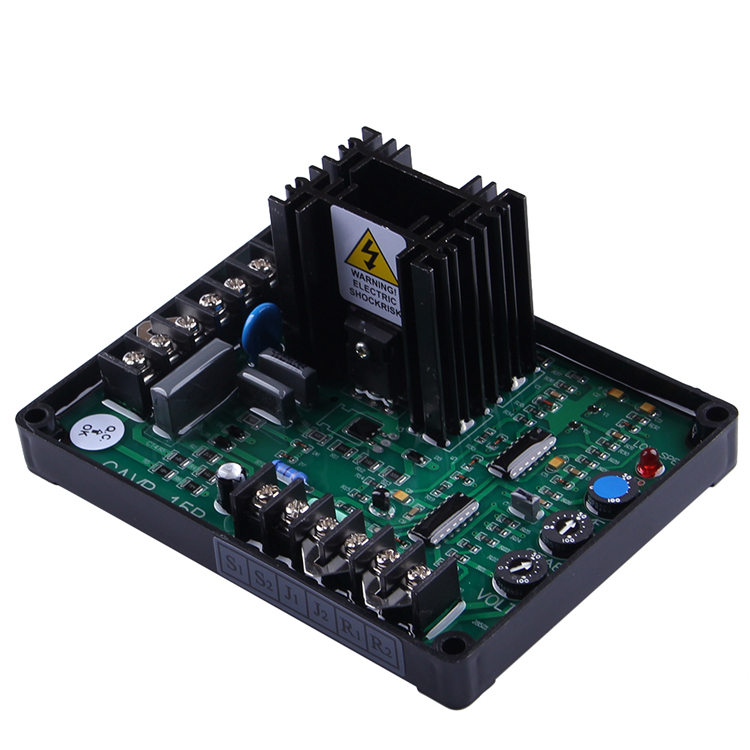

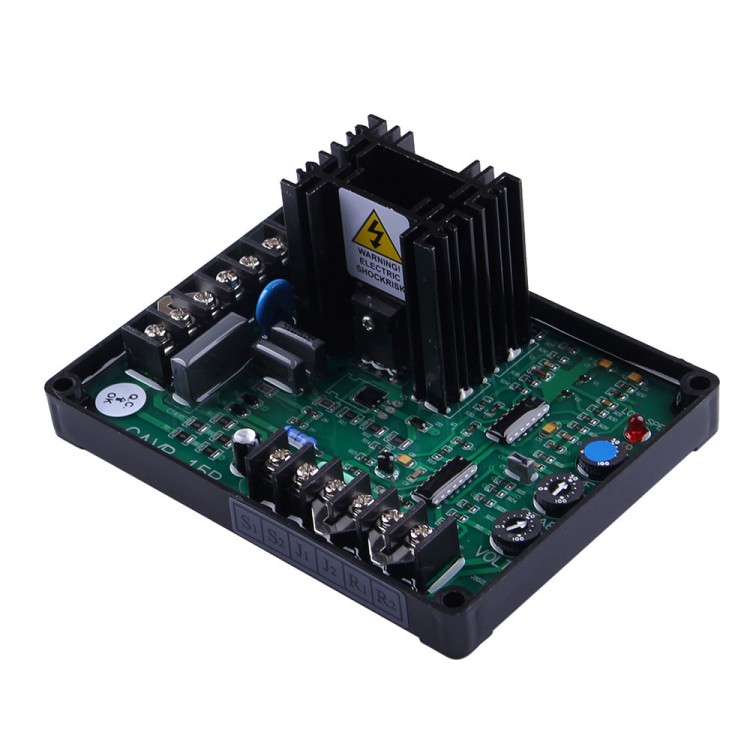

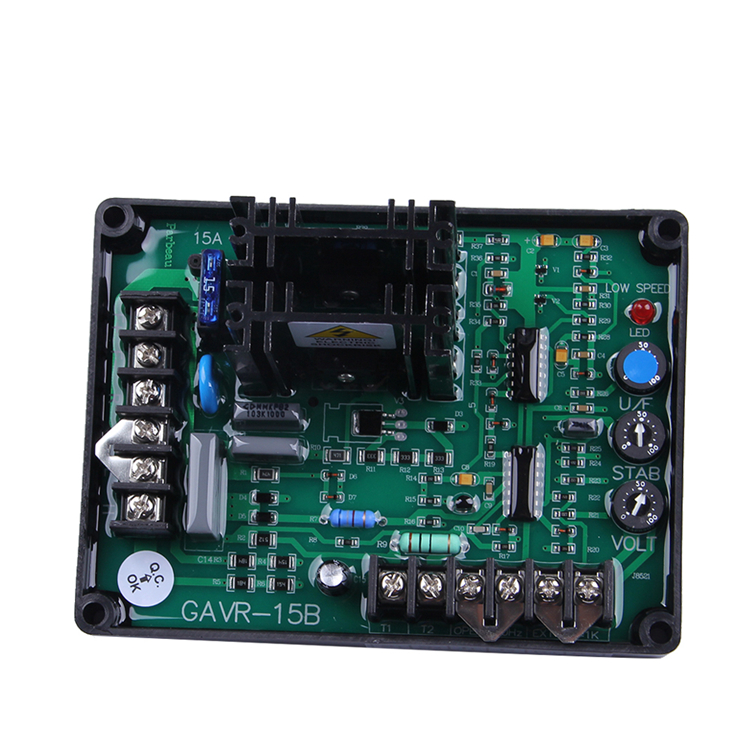

GAVR-15B AVR Regulator Automatic Voltage Regulator Board Perfect For Diesel Brushless Generator
Features:
- The difference between 15A and 15B is that 15B is with Aviation potentiometer material
- Universal 15 Amp 1/2 Wave Self Excited Dip-Switch Programmable AVR
- Voltage Regulation < ±1%
- 220/440VAC Programmable Input
- Rugged Compact Design
- Soft Start Voltage Ramping
- With Under Frequency Roll Off Protection
- EMI Suppression
- Built-in High Capacity 15Amp Fuse
Specifications:
- Voltage: 220/400VAC, 1 phase 2 wire
- Power Supply Input voltage: 180-240VAC , 1 phase 2 wire
- Output voltage: Max. 90 VDC at 240VAC input
- Current: Continuous 6A , intermittent 12A for 10secs
- Resistance: Min.10 ohm , Max. 100ohm
- Voltage Build-up: residual voltage at AVR terminal >5VAC
- Voltage Regulation: <±0.5% with 4% engine governing
- Operating Temperature: -40℃ to +65℃
- Storage Temperature: -40℃ to +85℃
- External Volts Adjustment: ±7% with 1k ohm 1 watt trimmer
- EMI Suppression: Internal electromagnetic interference filtering
- Unit Power Dissipation: Max. 8 watt
- Under Frequency Protection: 60Hz system presets knee point at 57Hz; 50Hz system presets knee point at 47Hz
- Dimensions: 157mm*117mm*70mm (L*W*H)
Package Included:
- 1 x AVR Board
Note:

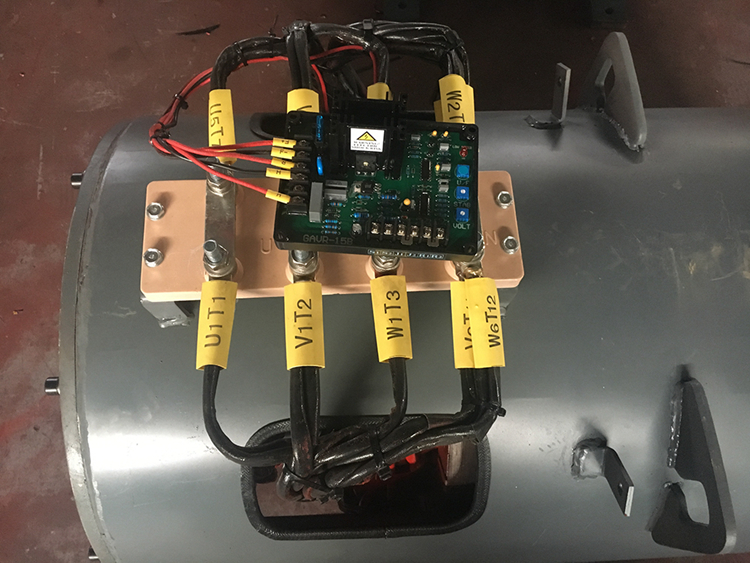

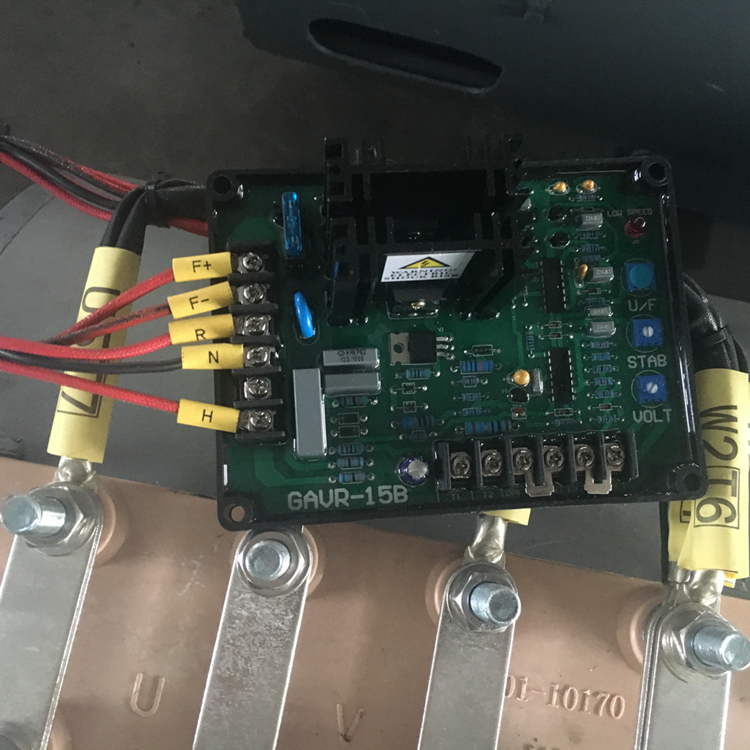

- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
