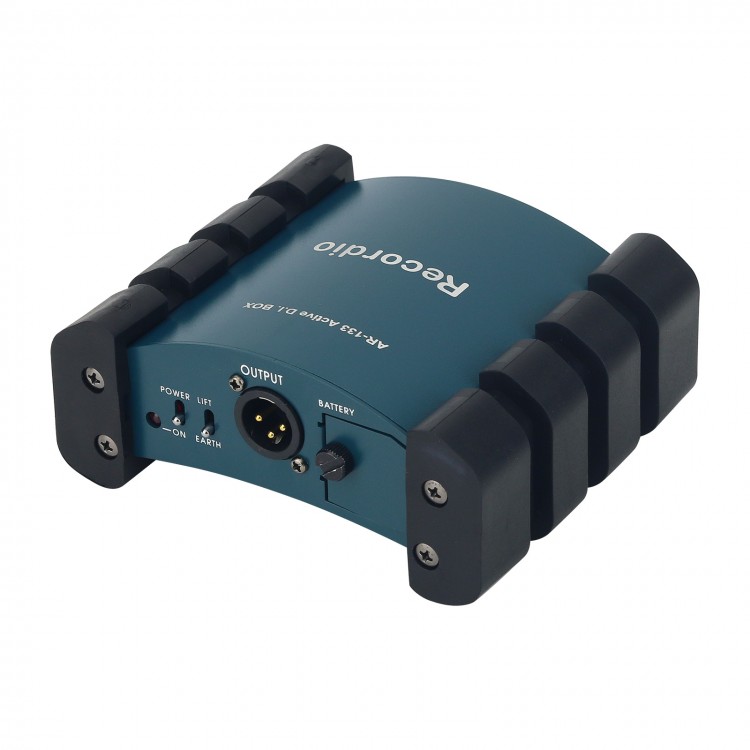

GAZ-133 Active DI Box High Quality Impedance Converter Stage Effector Audio Phantom Power Supply
Specification:

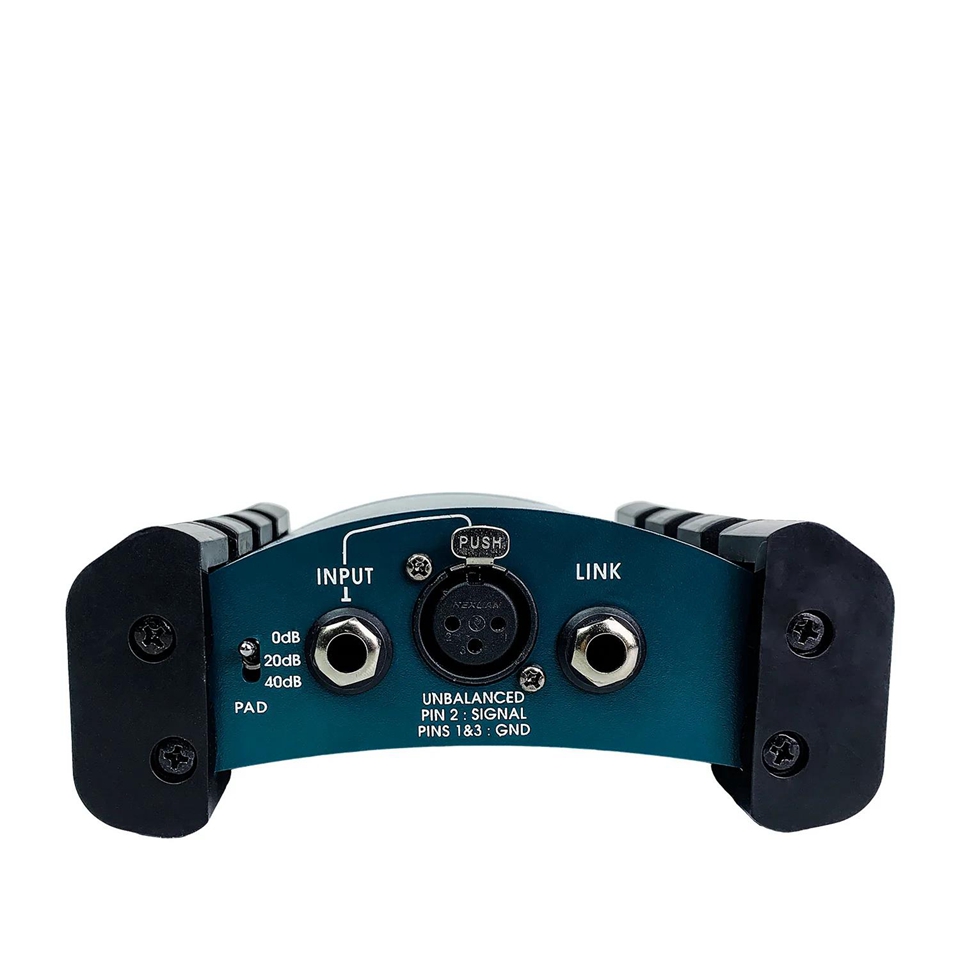

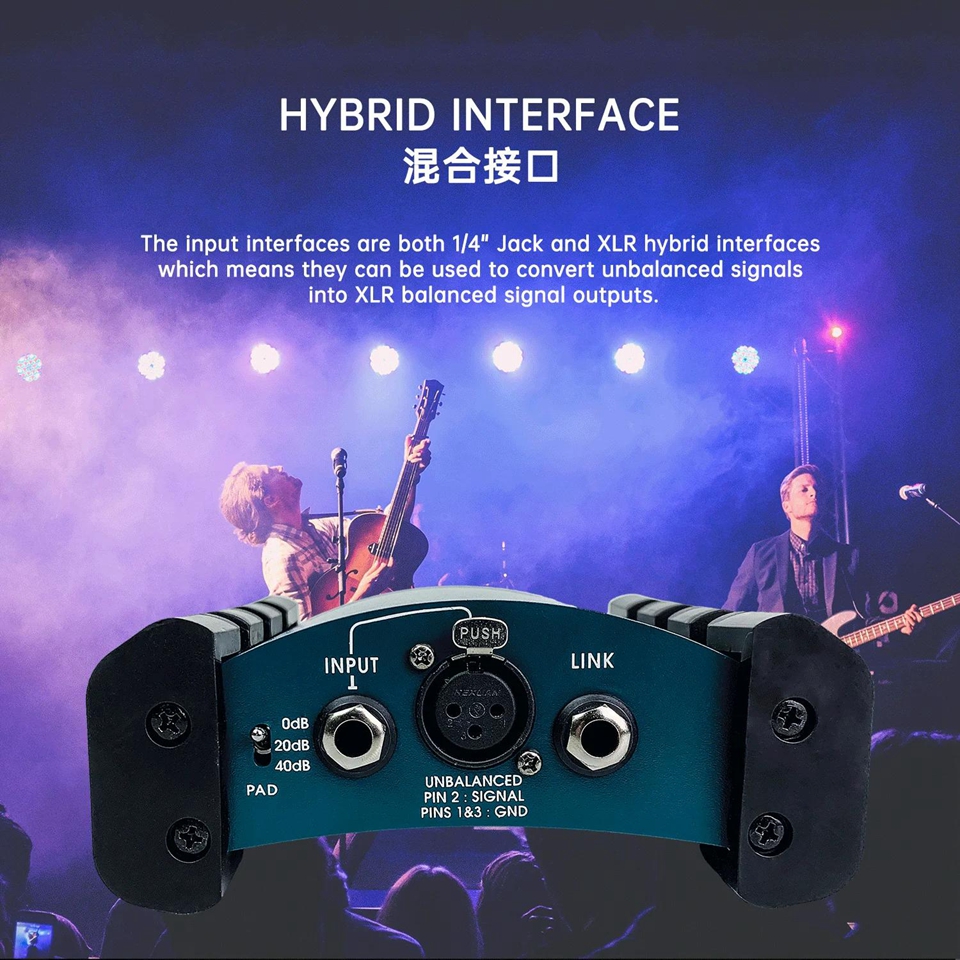

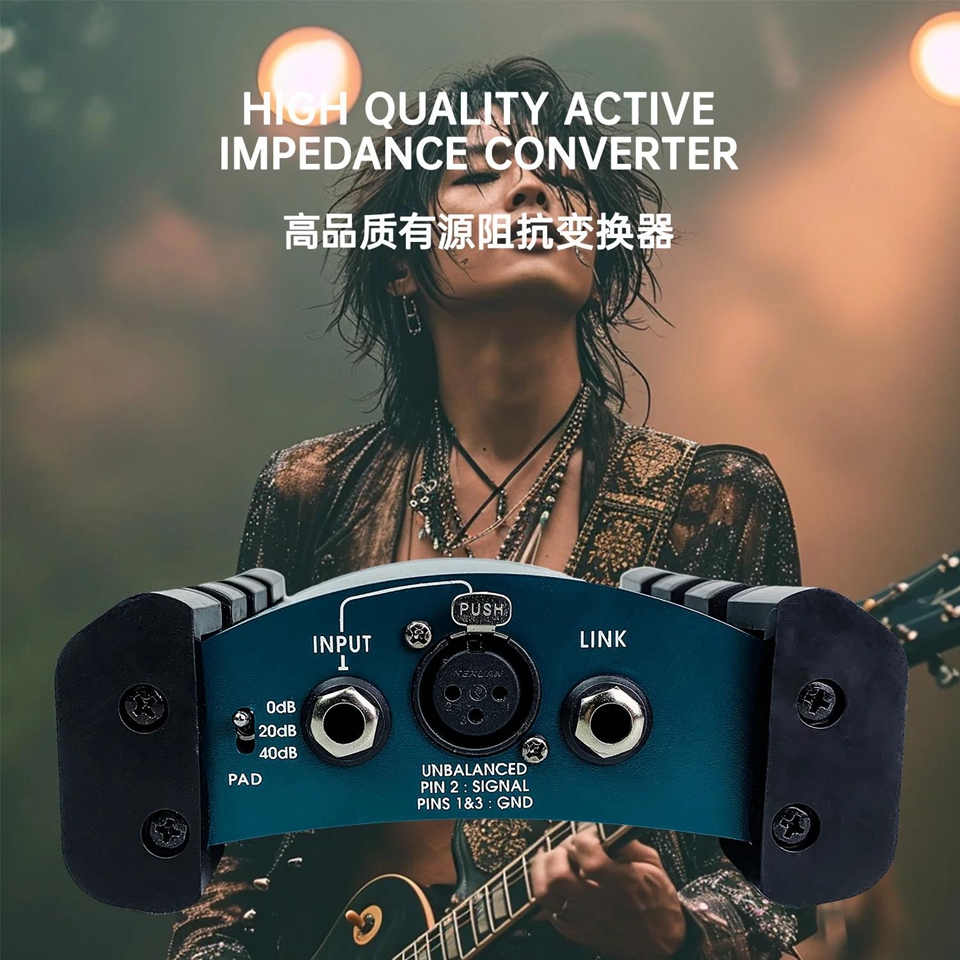

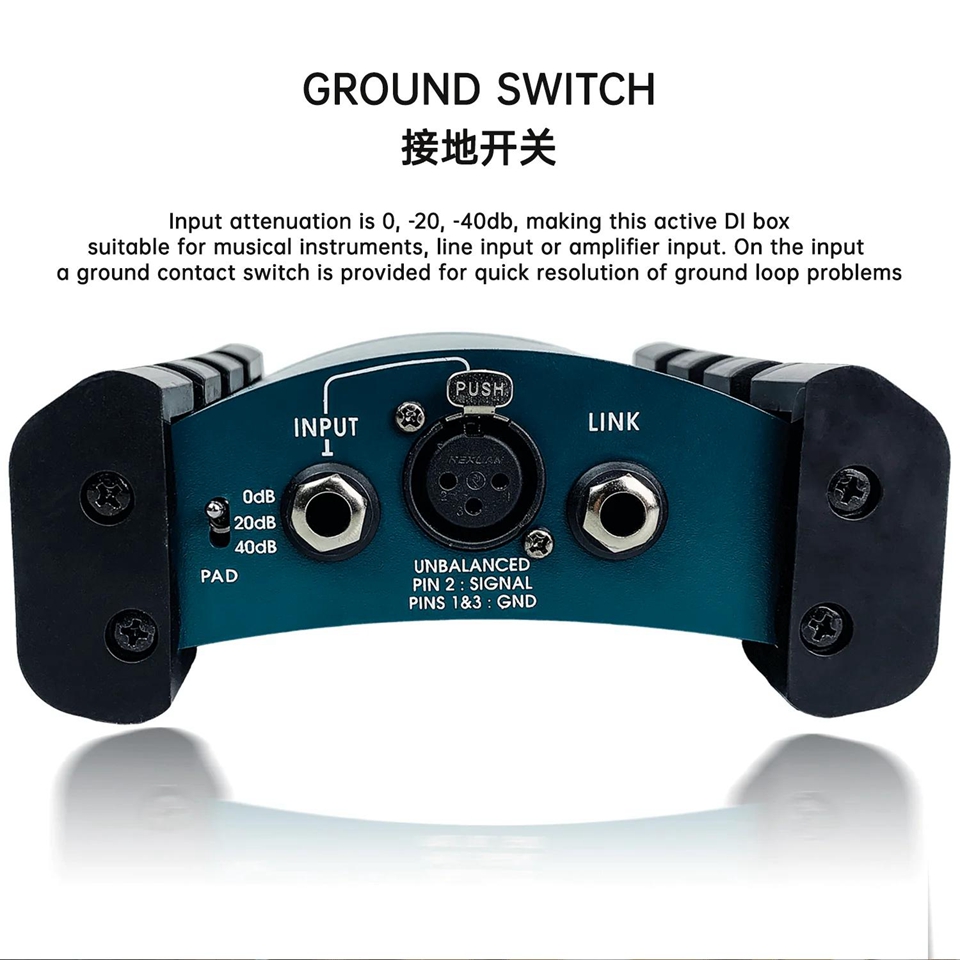

- Input: 1/4" single socket connector (tip charged, sleeve grounded) or 3-pin XLR connector (pin 2 charged), unbalanced.

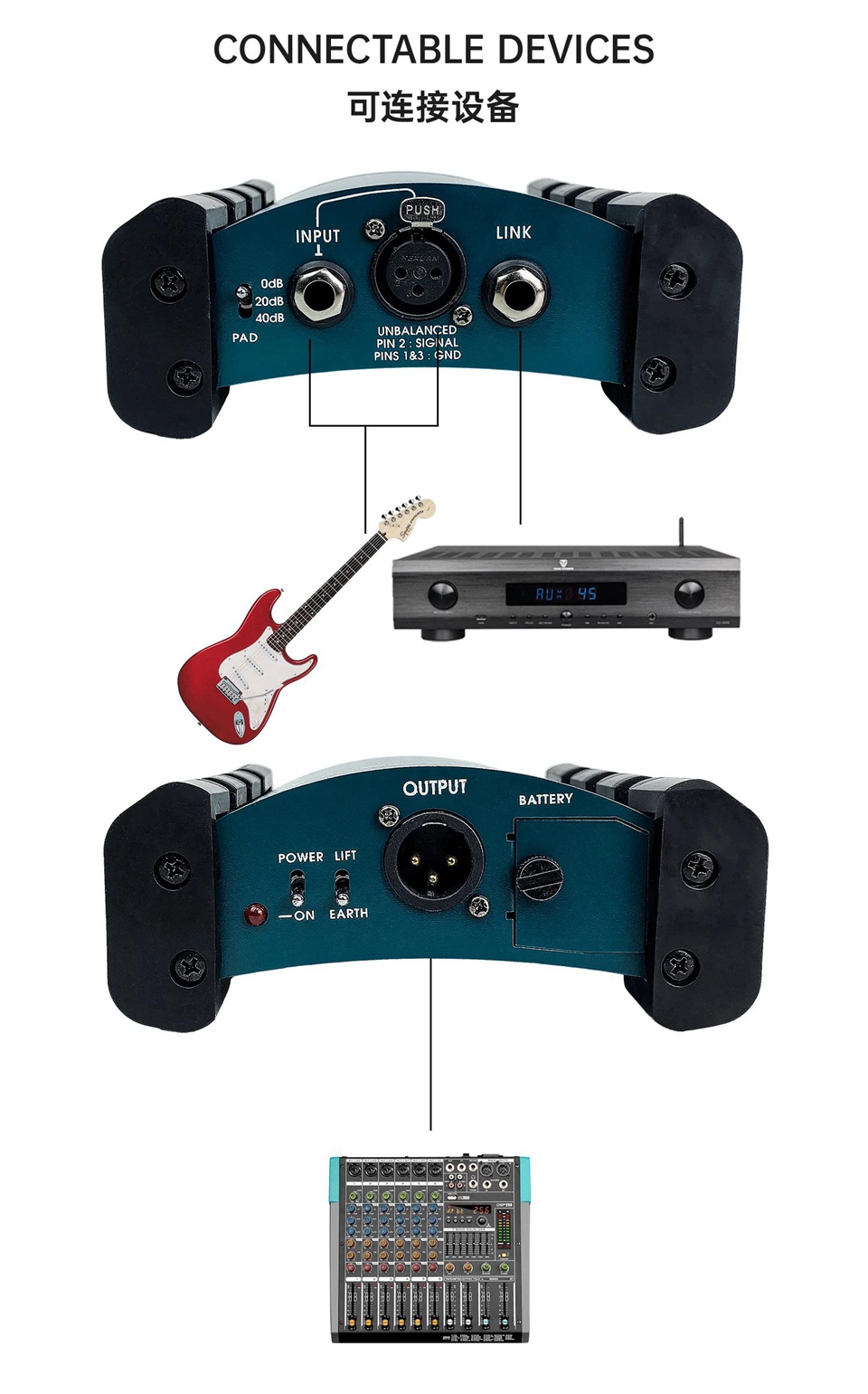

- Parallel link output 1/4" socket connector, used to feed other devices directly or through a buffer amplifier.
- Impedance: 1Mohm 47Kohms 47Kohms
- Maximum input level before clipping: +9dBu+29dBu+49dBu

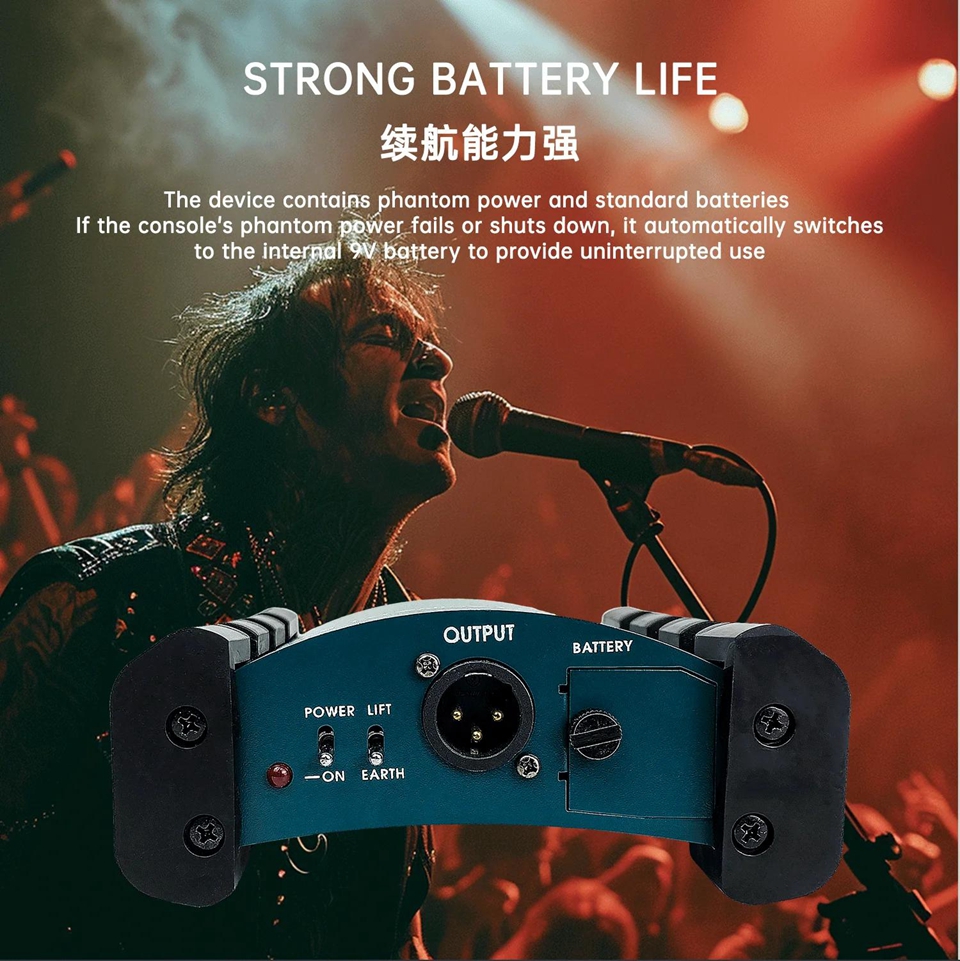

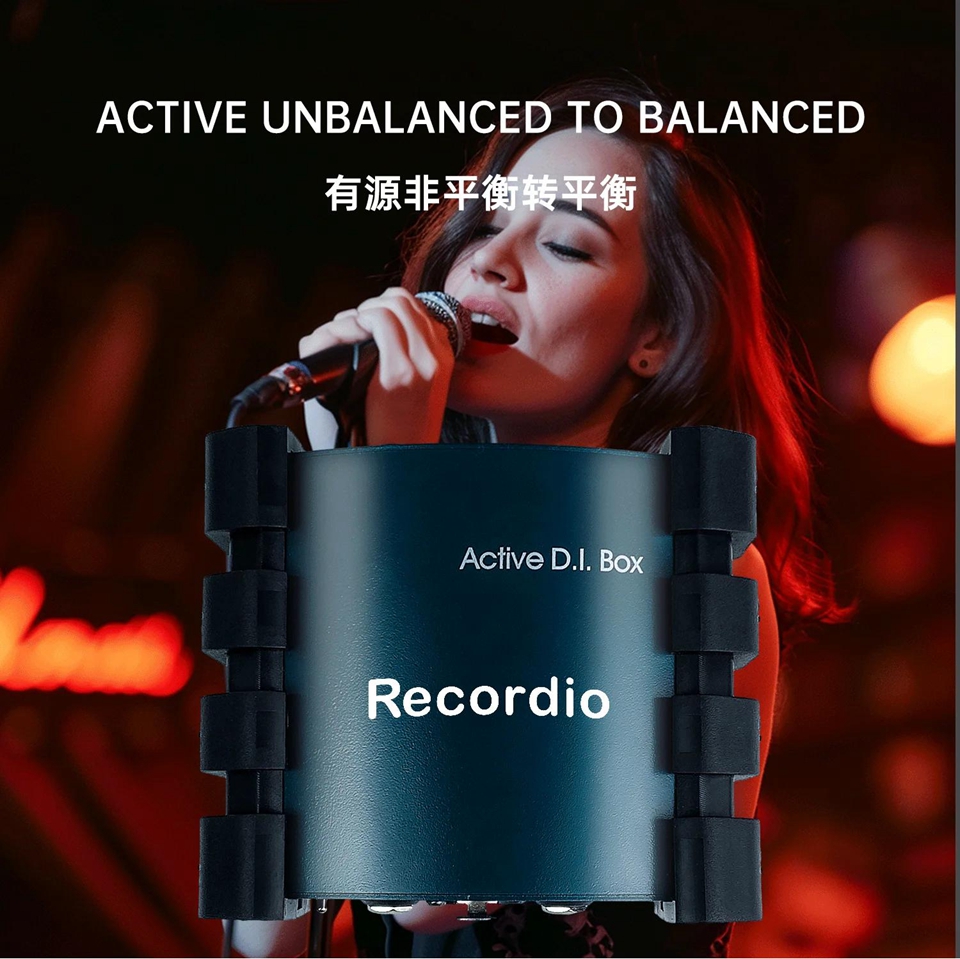

- Output: 3-pin XLR connector, transformer balanced output. It can drive circuits with a resistance of over 600 ohms. When using a battery or phantom power supply, the maximum output level of the clipping front is greater than +9dBu.
- Frequency response: 30Hz to 20kHz,+0/-1dB
- Noise: <-105dBu, unweighted, 22Hz to 22kHz, rms
- Harmonic distortion: less than 0.005% at 1kHz, with 0dBu output.
- Power:
Phantom power requirements: +20VDC to +48VDC
Current consumption: Phantom power supply, less than 8mA.
Package Included:
- 1 x Phantom Power Supply
