Description:

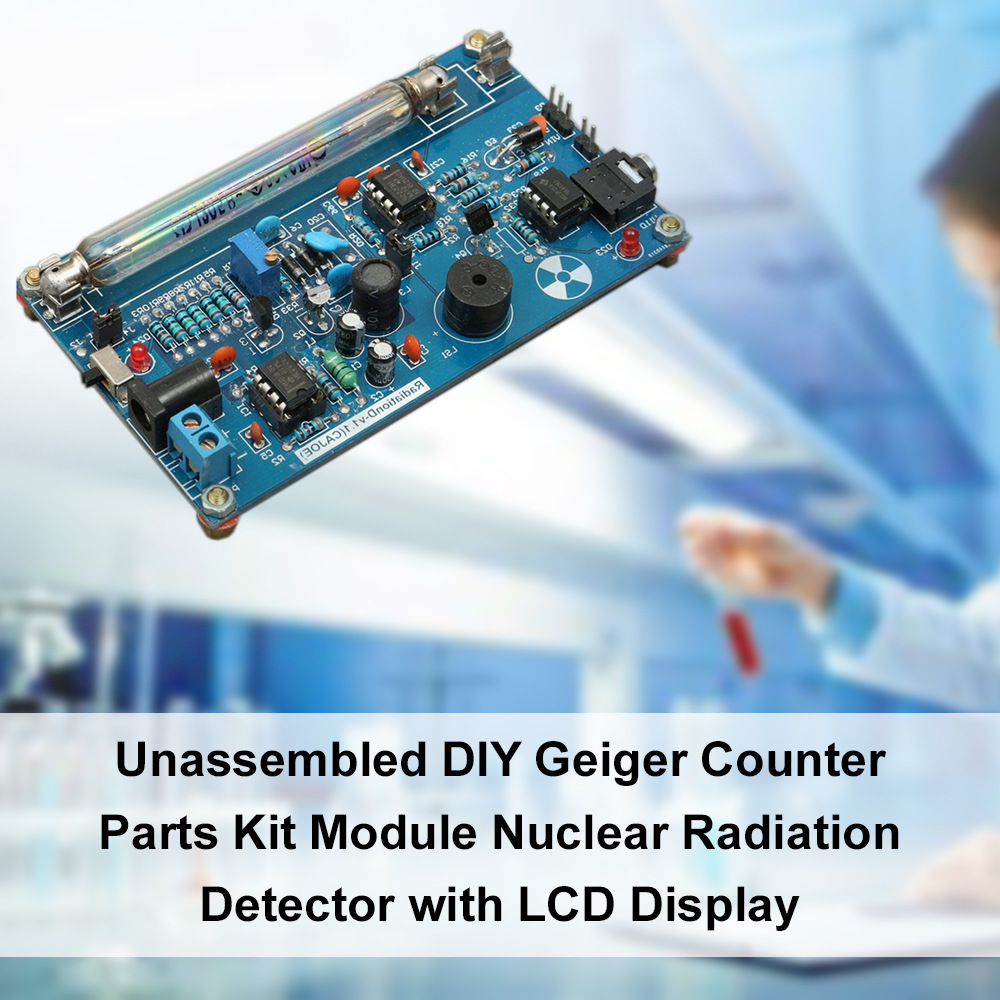

- This is a set of fine quality nuclear radiation detect module unassembled parts set, plug it and you can directly measured nuclear radiation. For the detection of 20mR/h-120mR/h of gamma rays and 100-1800 off variables/points of the soft beta ray. You can have a try.
Features:
- 5V power supply, or 3 * 1.5V battery; 4 * 1.2V battery, current: 30mA - 120mA.
- For the detection of 20mR/h-120mR/h of gamma rays and 100-1800 off variables/points of the soft beta ray.
- Equipped with sound and light alarm.
- Interrupt the output interface, through this interface can be connected to the microcontroller and then displayed .
- Supports most of the Geiger tube: M4011, STS-5, SBM20, J305, etc. (the 330-600V operating voltage of the Geiger tube can be supported).
- Support the computer (PC) data acquisition, Matlab analysis and processing.
Detection of nuclear radiation work (copy the following link to the browser to watch):
Http://v.youku.com/v_show/id_XNzI3MTU2NzQ0.html
Customers using our Geiger counter to record the video:
Http://v.youku.com/v_show/id_XOTE4ODIyNTIw.html
Compatible with:
(recommended UNOR3, or any other arbitrary with 5V and external interrupt INT)
Internet can be downloaded: SPI example for Radiation Logger
Logger Radiation can be used as the host computer software to build radiation monitoring station.
Specifications:
- Model: GC-1602-NANO
- Material: electronic component
- Geiger tube parameters:
- Technical parameters diameter: Φ10±0.5mm
- Total length: 90±2mm
- Starting voltage: < 350V
- Recommended operating voltage: 380V
- Minimum plateau length: 80V
- Maximum plateau slope: 10%/80V
- Extreme operating voltage: 550V
- The maximum count rate: 25 times / min
- Life: > 1 * 10^9 pulse
- Medium temperature: -40 to 55 ℃
- Item size: 108 * 63 * 20mm / 4.25 * 2.48 * 0.79in
- Item weight: 100g / 3.53ounce
- Package size: 120 * 80 * 40mm / 4.72 * 3.15 * 1.57in
- Package weight: 150g / 5.29ounce
Packing List:

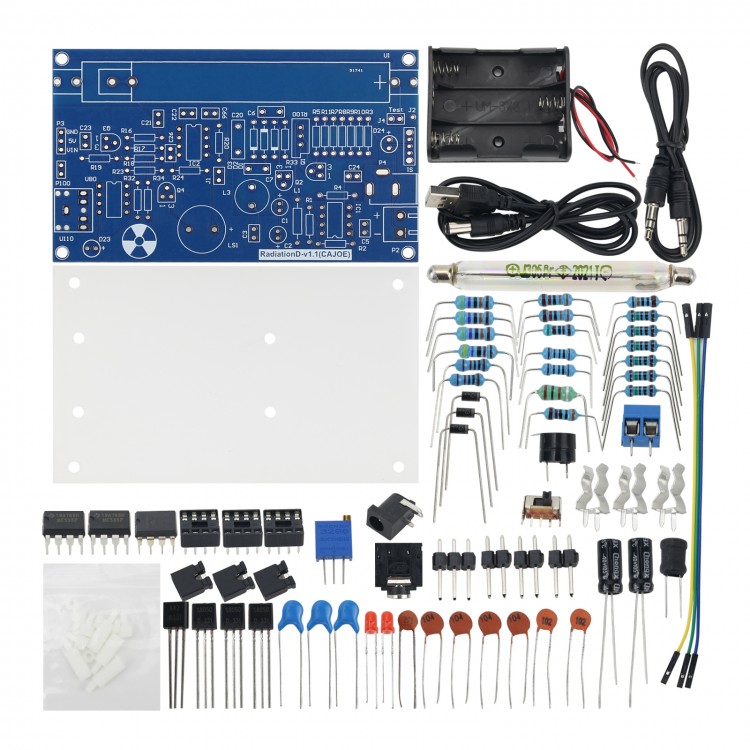

- 1 * Unassembled Radiation Detector Module Set
