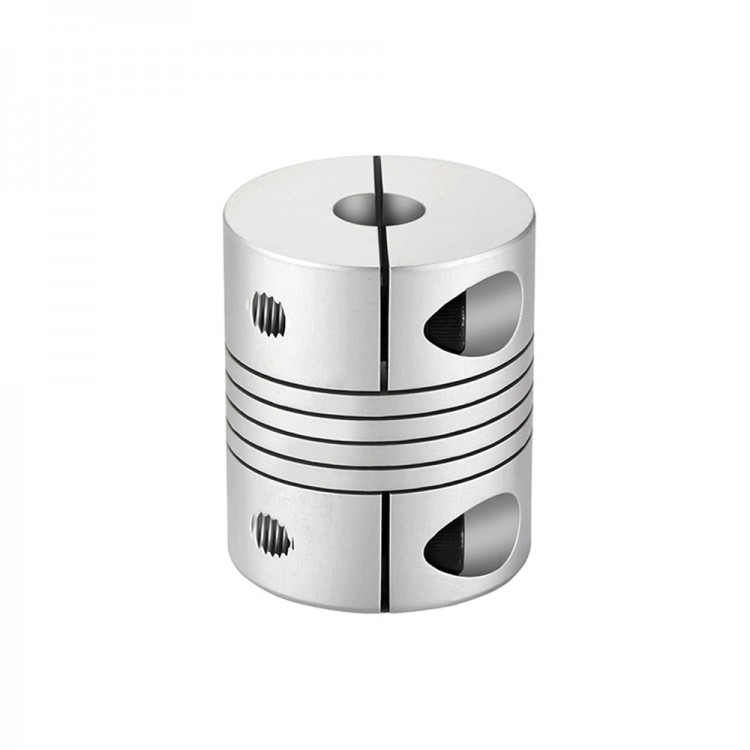

GC19x23 Winding Shaft Coupling 4mm-8mm Flexible Coupler Shaft Coupling for Encoder Step Motor CNC
Features:
- Aluminum alloy material
- Elastic effect compensating radial,angle, axial deviation
- Spring type and buffering
- For encoder and micro motor

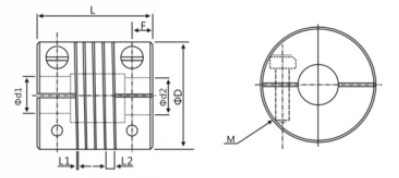

Specification:
- Model: GC-19x23 mm
- For d1,d2 shaft diameter (mm): 4,5,6,6.35,8,7
- D: 19mm
- L: 23MM
- L1: 0.4mm
- L2: 2mm
- F: 4.3mm
- M: M2.5
- Torque: 1.5N.M
Tech parameter:
- Rated torque: 0.9N.M
- Off-center torlerance: 0.15mm
- Deflection torlerance: 3degree
- Axial deviation torlerance: -+0.2mm
- Maximum speed:77000rpm
- Static torque: 52N.M/rad
- Inertia torque: 9.1x10-7
- Sleeve material: Aluminum alloy
- Surface process: Anodic oxidation treatment
- Weight: 12g
Packing Content:
- 1 x Coupling
