Description:
The GCAN-205 is a CAN-Bus and ethernet converter. GCAN-205 converter ethernet-side integrated Modbus TCP protocol. GCAN-205 can convert the data between CAN-Bus and Modbus TCP. With this converter, equipment that used Modbus TCP protocol can connect to CAN-Bus without changing the hardware structure, this makes multi-Bus interconnection very flexible, and extends the application scope of CAN-Bus.

Hardware:
- High-speed 32-bit processor
- Embedded hardware watchdog timer
- Power supply voltage: DC 24V, maximum current: 40mA
- Electrostatic discharge immunity level: contact discharge ± 2KV, air discharge ±15KV
- Electrical fast transient burst immunity level: ± 1KV
- Surge immunity level: ± 1KV
- Operating temperature range: -40℃ to +85℃
- Operating humidity range: 5% to 95% RH no condensation
- Dimensions: 113 x 100 x 21mm/4.4 x 3.9 x 0.8"
- Standard DIN rail mounting, designed for industrial design

CAN:
- Integrated 1 CAN-Bus interface with terminal
- CAN-Bus signals include: CAN_H, CAN_L, CAN_GND
- CAN-Bus supports CAN2.0Aand CAN2.0B frame format, conform to ISO/DIS 11898 standards
- CAN-Bus baud rates range from 5Kbps to 1Mbps
- CAN-Bus isolation converter insulation voltage: DC 1500V

Ethernet:
- RJ45, support 10 / 100M adaptive
- Modbus slave support function code: 03H, 04H, 06H, 16H
- Support static or dynamic IP access
- Support heartbeat and timeout interrupt function
- The working port is fixed, the target IP and the target port can be set
- After the network is disconnected, the connection resource is automatically restored and the TCP connection is established reliably
- Support protocols include EtherNET, ARP, IP, ICMP, UDP, DHCP, DNS, TCP
- Compatible with SOCKET work (TCP Server, TCP Client, UDP, etc.), the host computer communication software follows the standard SOCKET rules

Technical Specifications:
Connection:
- Ethernet: RJ45
- CAN interface: OPEN3 terminal blocks

Interface characteristics:
- Ethernet interface: 10 / 100M adaptive
- CAN interface: Follow the ISO 11898 standard to support CAN2.0A / B
- CAN baud rate: 5Kbit/s~1Mbit/s
- Electrical isolation: 1500V, DC-DC
- 120 ohm resistance: Not integrated

Power supply:
- Voltage: +24V DC
- Supply current: Maximum 40mA

Environmental testing:
- Operating temperature: -40℃ to +85℃
- Working humidity: 15%~90%RH, No condensation
- EMC testing: EN 55024:2011-09; EN 55022:2011-12
- Protection class: IP 20

Basic information:
- Outline size: 113 x 100 x 21mm/4.4 x 3.9 x 0.8"
- Weight: 120g/0.3lb

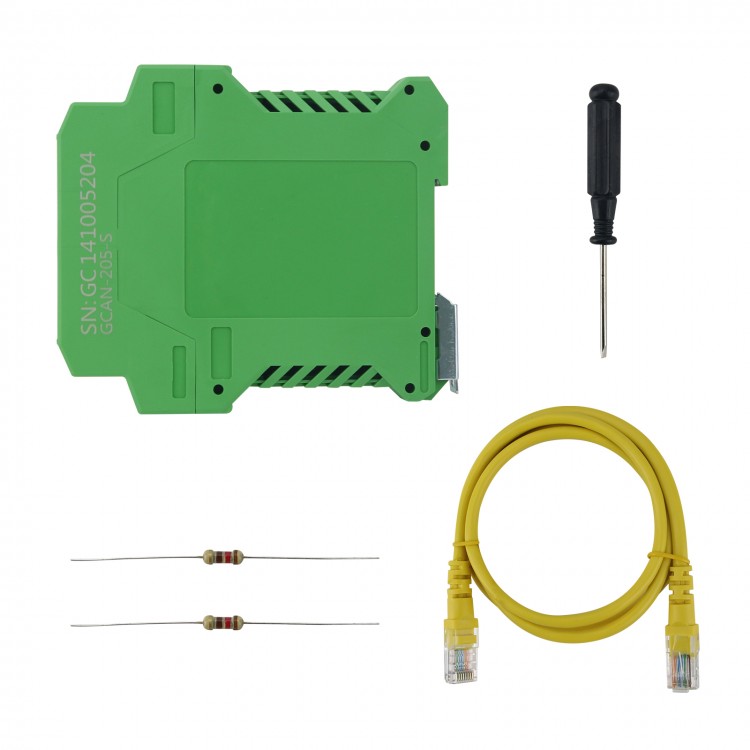

Package Included:
- 1 x Converter Module
