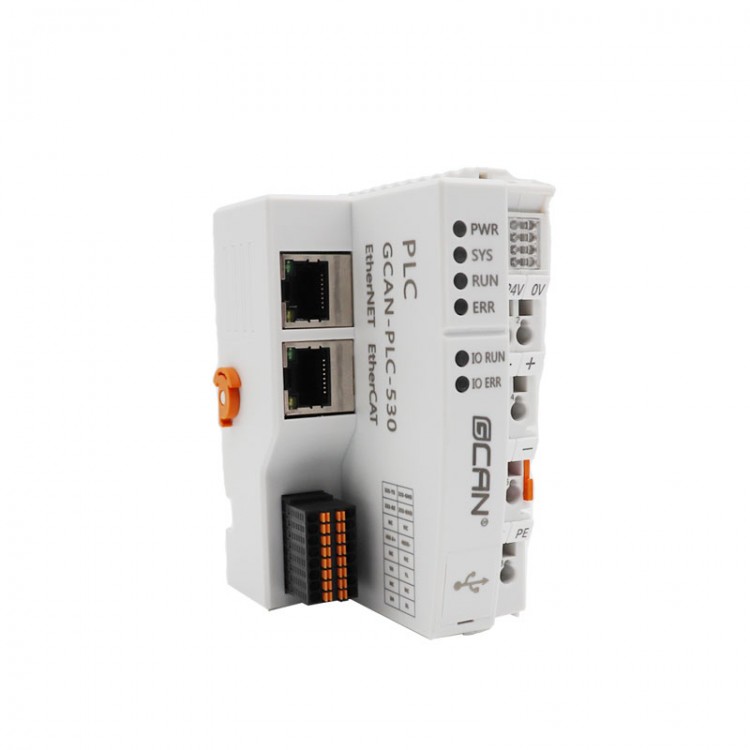

GCAN-PLC-530 EtherCAT Programmable Logic Controller Main Control Module High Speed 4-Core Processor

GCAN-PLC-530 EtherCAT Programmable Logic Controller Main Control Module High Speed 4-Core Processor

Description:
- GCAN-PLC-530 is a programmable logic controller (PLC) with integrated bus control function and EtherCAT master station function. Integrated with a quad core processor and processing speed of nanosecond level instructions. It can also be conveniently connected to CAN bus systems, and can be extended through plug-in modules.

- The GCAN-PLC series products consist of a programmable main control module (GCAN-PLC-530, etc.), several GC series IO modules (GC-1008, GC-3804, etc.), and a terminal resistor module (GC-0001). The GCAN-PLC-530 and other main control modules can connect all GC series IO modules. Users can choose to expand the IO modules according to their actual on-site needs. With sufficient power supply, the number of IO modules can be expanded up to 32. When the number of expansion modules exceeds 16, an additional IO power supply expansion module GC8012 needs to be added to ensure sufficient power supply. The main control module can automatically allocate addresses based on the front and back positions of the inserted IO modules, achieving automatic configuration. Users do not need to create a configuration interface or set parameters on the PC.

- GCAN-PLC can be programmed using CODESYS V3.5 SP16 and above software. The software supports five standard programming languages that comply with the IEC-61131-3 standard, which makes the program highly portable and reusable. In addition, the software also has multiple debugging functions (breakpoints, single steps, etc.), making debugging the program more convenient.

- GCAN-PLC-530 not only can complete various digital/analog input/output, but also integrates various commonly used industrial field-buses, such as RS232/485 bus, CAN bus, Ethernet bus, EtherCAT bus.

Features:
- 1 Ethernet interface, 1 Ethernet/EtherCAT multiplexing interface
- 1 RS232 interface, 1 RS485 interface
- 2 CAN interfaces
- Programming software: for CODESYS (programming language compliant with IEC61131-3 standard)
- Support EtherCAT master station function
- Number of axles available: 24 axles; number of slave stations: up to 127 EtherCAT slave stations
- The maximum number of expandable IO modules with sufficient power supply (including extended power modules) is 32; when the number of expansion modules exceeds 16, an additional IO power module GC8012 needs to be added to ensures sufficient power supply
- The configuration mode is automatic configuration
- Rated DC 24V power supply; tolerance -15%/+20%
- The maximum input current is 400mA (total GC-bus current)
- Starting current: approximately 2.5 times the continuous current
- Electrical isolation: 1500V DC
- EMC testing: Zone B, IEC61131-2
- Working temperature range: 0℃ ~ +50℃
- Relative humidity: 10% ~ 95% (no condensation)
- Protection level: IP20

Specification:
CODESYS Inner Core:
- Master frequency: 1.5G
- Program storage: 10M byte
- Data storage: 20M byte
- Power outage storage: 8K byte
- EtherCAT master station-3S library: support
- CANopen Master-3S library: support
- PLC program encryption and download: support
- Source code upload and download: support
- Label communication: support
- Motion: support
- Trace: support

PLC Parameter:
- Command processing speed:
  Bit processing instruction: approximately 5ns
  Word processing instructions: approximately 7.5ns
  Four arithmetic operations for integers (average): approximately 8.5ns
- Program online modulation: not supported
- Programming language execution standard: IEC 61131-3
- Programming language type: SFC, LD, FBD, ST, IL
- I/O: 0; need to expand GC series IO module
- Expandable IO module number: up to 32
- Configuration method: automatic configuration
- Real time clock: built-in
- Floating point calculation: support
- Power-off memory: support; the device need to operate more than 3minutes after power on.

Communication Interface Features:
- Communication form: 1 Ethernet interface, 1 Ethernet/EtherCAT multiplexing interface, 1 RS232 interface, 1 RS485 interface, and 2 CAN interfaces
- EtherCAT master station: support
- EtherCAT axis number: 24 axis
- EtherCAT slave station supported numbers: up to 127

Electrical Parameter:
- Power supply: 24VDC (-15%/+20%)
- Input current: 150mA + (total GC-bus current)/maximum 2.5A
- Starting current: approximately 2.5 times the continuous current
- Recommended fuse capacity: ≤ 10A
- Electrical isolation: 1500Vrms

Environmental Test:
- Working temperature: 0℃ ~ +50℃
- Working humidity: 95%RH, non-condensing
- Altitude: the altitude of the installation site of the device should not exceed 2000m
- EMC: Zone B, IEC61131-2
- Vibration: 5Hz ~ 8.4Hz, 3.5mm displacement, constant amplitude; 8.4Hz ~ 150Hz, 1g acceleration, X/Y/Z three-axis, 10 cyclic/axial
- Anti electromagnetic interference/anti electromagnetic radiation performance: EN 61000-6-2/EN61000-6-4
- Protection level: IP20

Package Included:
- 1 x PLC Module
