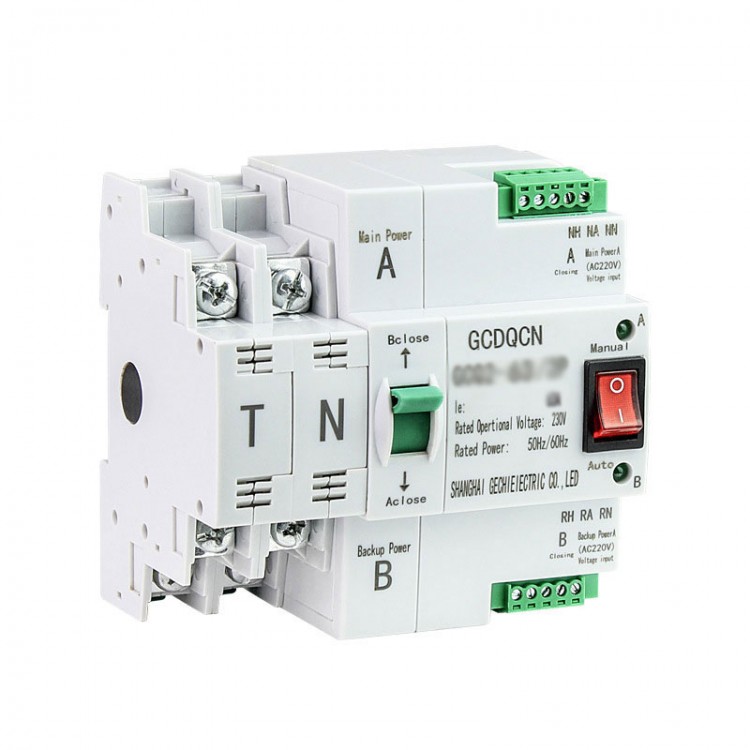

GCDQCN 2P 100A ATS Automatic Transfer Switch (2P100A) for 35mm Rail and Lighting Distribution Box

GCDQCN 2P 100A ATS Automatic Transfer Switch (2P100A) for 35mm Rail and Lighting Distribution Box

Features:
- Millisecond-level rapid switching: The switching time is less than or equal to 30ms, and the power can be uninterrupted during switching.
- Small size: Its appearance is completely upgraded. Its overall length is shorter than that of a mobile phone.
- One-piece design: It saves installation space due to small size, with light weight.
- Industrial silver contacts: The contacts greatly improves the service life and conductivity of the ATS switch.
- Manual and automatic modes: The switch supports manual and automatic modes. The interlocking mechanism of air switch style is used to make it more durable.
- Rail mounting: It can be mounted on a 35mm standard rail and can be easily used with an air switch for installation in a lighting distribution box used in the family.

Specifications:
- Frame current: 125A
- Rated current: 100A
- Number of poles: 2P
- Short circuit breaking capacity: 6kA
- Product grade: PC class
- Rated voltage: 230V
- Wiring: two in and one out
- Installation: Supports 35mm rail
- Electrical life: 10000
- Mechanical life: 10000 times
- CCC rated voltage range: above 50V and below 440V

Package Included:
- 1 x ATS switch

Packaging Details:
- Weight: 0.58kg
