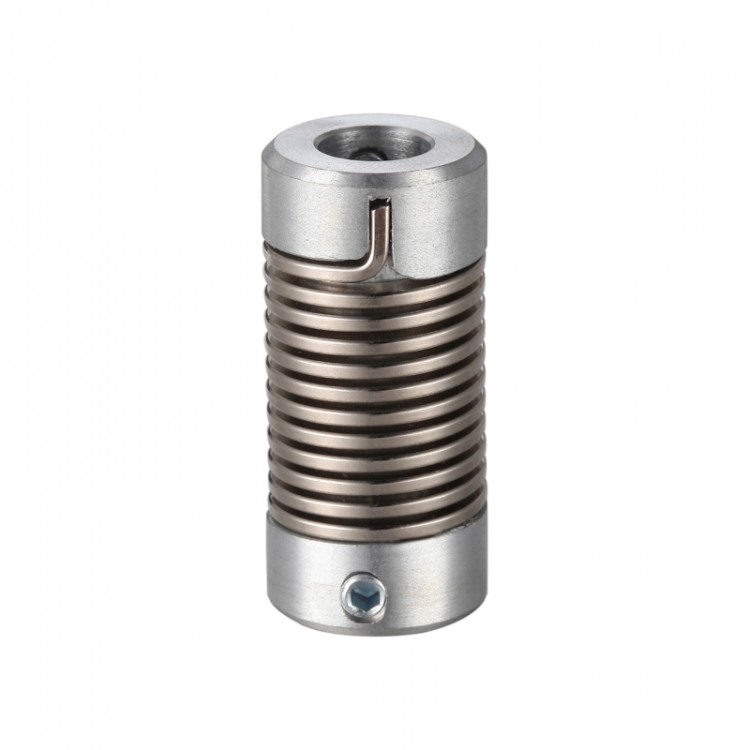

GD26x50 Spring Coupling 6mm-12mm Flexible Coupler for Servo Step Motor Encoder CNC
Features:
- The main body is made of Zinc alloy
- High torque and high quality
- Spring design with buffering
- For encoder and micro motor

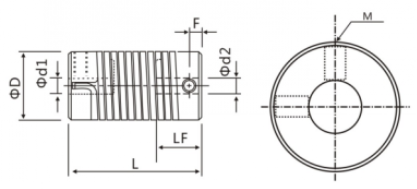

Specification:
- Model: GD-26x50
- For d1,d2 shaft diameter (mm): 6,6.35,7,8,9,10,11,12,12.7,14
- D: 26mm
- L: 50MM
- LF:17mm
- F: 4.5mm
- M: M5
- Torque: 4N.M
Tech parameter:
- Rated torque: 1.5N.M
- Radial deviation torlerance: 1.2mm
- Deflection torlerance: 8degree
- Axial deviation torlerance:-+1.0mm
- Maximum speed:3000rpm
- Static torque: 860N.M/rad
- Inertia torque:1.15x10-5kg/m2
- Weight: 130g
Packing Content:
- 1 x Coupling
