Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $91.97 | $90.10 | $87.28 | $83.53 | Contact US |
GEEBOON TC22 240W Soldering Station Kit with T245 T210 Handles + C245 C210 Soldering Iron Tips
Functions & Advantages:
* Precise temperature control. Fast and stable
* 240W high power
* Dynamic curves
* Smart sleep mode
* Power limitation and multiple protections
* Safety protection: ESD/short-circuit proof
* 2.0" IPS screen
* 3-second heating-up makes it convenient and quick to use
* Small and convenient
* Smart USB upgrade
* Languages: Chinese and English
Features:
* Supports short-circuit protection. The response time is less than 12us
* High performance: No burning of the main unit and no burning of the heating core thanks to the hot-swappable heating core
* When C245 is used, the maximum power can be unlocked up to 240W
* Many types of soldering iron tips are supported
* Comply with the relevant requirements for safe welding
* The temperature is dynamically compensated with power
* Real-time display of power
* The temperature is locked with a password
* 4 modes: There are working, standby, sleep and shutdown modes. Sleep and shutdown modes reduce life degradation at high temperatures and extend service life. Place the handle on the soldering iron holder to sleep
* Graph: The graph shows the welding temperature and provides more reference data, allowing users to better understand the welding information and equipment status. The curves make it easy to observe
TC22 Parameters:
* Maximum heating power: 240W (The software will control the heating power to be less than this power. And when C245 is used, it will unlock the power to 240W)
* Maximum power consumption: 272W (when the heating power reaches 240W, the total power consumption of the device is 272W)
* Supported tools: C245/C210/C115/T12
* Ground resistance: less than 2Ω
* Soldering tip voltage: less than 2mV
* Input voltage: 110V-240V
* Temperature control range: 100°C-480°C
* Weight: 450g/1lb

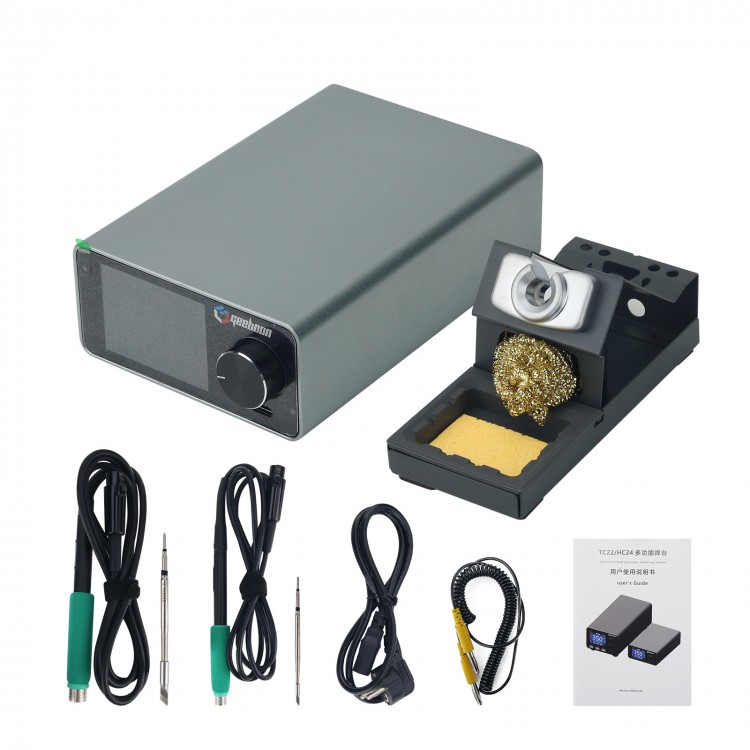

Package Included:
* 1 x TC22 main unit
* 1 x T245 handle (with 1.2m/3.9ft cable)
* 1 x T210 handle (with 1.2m/3.9ft cable)
* 1 x C245 soldering iron tip
* 1 x C210 soldering iron tip
* 1 x Soldering iron stand
* 1 x Power cable
Packaging Details:
* Weight: 1.25kg
Note:
* Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
