 Introduction:

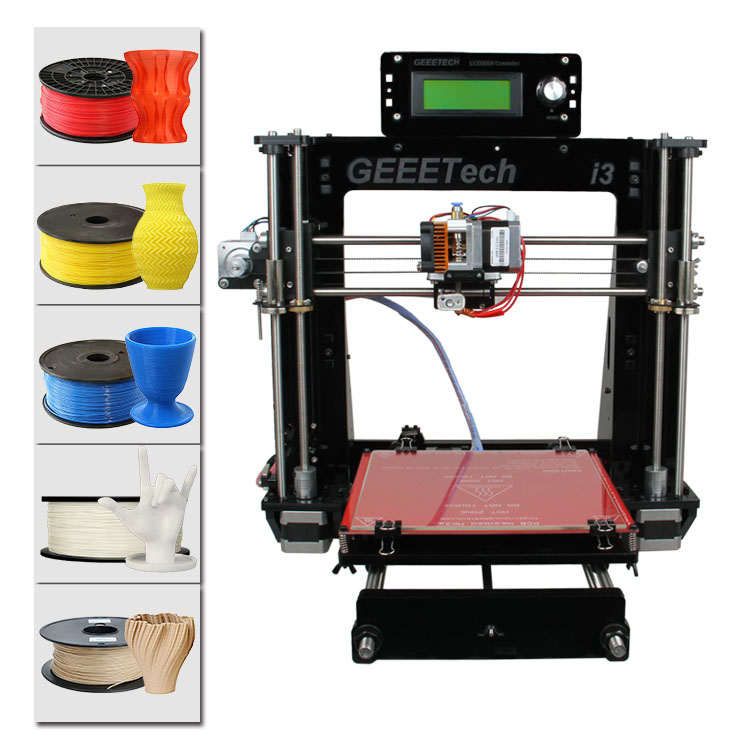

This Geeetech I3 pro 3D printer is designed and manufactured by Shenzhen Getech Co., Ltd based on Reprap Prusa I3,
Geeetech I3 features simple assembly, easy debugging and more stable performance.
The acrylic structure makes the printer much easier to operate.

Features:
- Further simplified structure means fast assembly and easy adjustment, which saves you both time and energy
as well as speeds up the molding of your innovative products and ideas. It usually takes up to 3 days for a DIYer to assemble the previous I3,
not to mention the post-adjustment and debugging work. As to this I3 of Acrylic Frame, however, you can save 70% of time.
- Enhanced stability and reliability. Geeetech I3 adopts 8 mm-thick acyclic plates, also you can choose the piano-black one
and the transparent one, and both colors look good.
- The PSU (power supply unit) is assembled together with the printer; which saves you a lot of space
and can avoid unnecessary electrical trouble.
- All the cables and wires are well arranged to make it more neat and easy to operate.
- MK8 extruder ensures smaller layers and higher resolution, make models and objects.
- SKU: SCJT-3Dprinter-Single-2-B

Specifications:
Printing specifications:
- Print technology: Fused Filament Fabrication.
- Build volume: 200 x200x180mm
- Layer resolution: 0.1-0.3mm
- Positioning Precision: 0.1-0.3mm
- Filament diameter: 1.75mm, 3mm
- Nozzle diameter: 0.3mm, 0.35mm, 0.4 mm, 0.5mm
- Filament type: ABS/ PLA

Software
- Operating system: Windows/Mac/Linux
- Control software: Repetier-Host, Printrun
- File format: .STL

Temperature:
- Max heated bed temperature: about 110°C
- Max extruder temperature: about 240°C

Electrical:
- Power supply: input: 100-120VAC/4.8A or 200-240VAC/2.4A
- Output：DC12V/ 29A
- Connectivity: USB, SD card (not include)(support off-line printing)

Mechanical:
- Body: Acrylic plate of 8 mm thickness (black/ transparent)
- Build Platform: Borosilicate glass + MK2A heatbed
- XYZ Rods: Wear-resistant, stainless steel
- Stepper Motors: 1.8° step angle with 1/16 micro-stepping
- Physical structure: Reprap

Physical dimensions:
- Without spool: 45 x 44 x 44 cm
- With spool: 45 x 44 x 68 cm
- Shipping box: 52 x 42 x 23 cm
- Net weight: 8. 5 kg
- Shipping weight: 9. 5kg

Package Included:
- 1x Acrylic Geeetech I3 3D Printer Full Complete Kit
- 1 x PLA/ABS
- 1 x Tool kit
- 1 x Instruction manual
