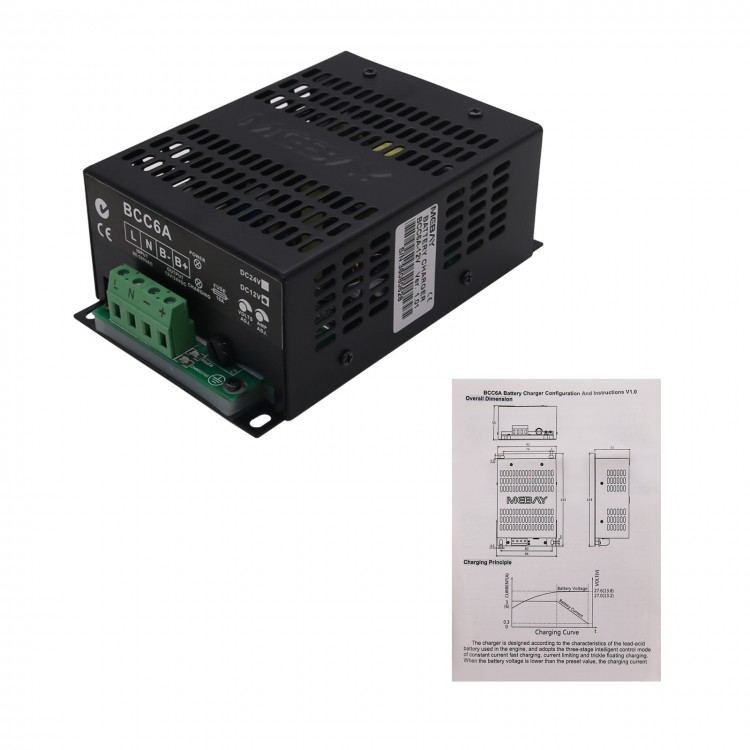

Genset Generator Battery Charger Intelligent Floating Charge BCC6A-12V/ BCC6A-24V

Genset Generator Battery Charger Intelligent Floating Charge BCC6A-12V/ BCC6A-24V

Description:
This charger is designed for the lead-acid battery used in the engine. It adopts three-stage intelligent control method of constant current fast charge, current limit and turbulent float charge. It can be charged for a long time without damage to the battery, and can maintain the full power state of the battery and ensure the service life of the battery. This charger can be used in parallel with the engine's charging generator, and there is no need to disconnect the charger during engine operation.

Features:
- With metal casing, good heat dissipation and strong anti-interference ability;
- Advanced switching power supply results, wide AC input voltage range;
- Three-stage smart charging to automatically maintain battery power;
- Short circuit and anti-back protection;
- With charging voltage and charging current fine adjustment function;
- LED status display.
- Optional Types: BCC6A-24V, BCC6A-12V

Charging Characteristic Curve:
The charger is designed according to the characteristics of the lead-acid battery used in the engine, and adopts a three-stage intelligent control method of constant current fast charging, current limiting, and turbulent floating charging. When the battery voltage is lower than the preset value, it is a constant current charging phase; when the battery voltage is higher than the preset value, the charging current decreases as the battery voltage increases, and enters the current limiting charging phase; the battery voltage gradually rises to a predetermined value. Constant voltage value, when the charging current is less than 0.3A, the charging indicator is off, and the floating charging phase is entered. The subsequent charging current only counteracts the self-discharge of the battery, maintaining the battery in a fully charged state. There is no need to disconnect the charger during this process, which has no effect on battery life.

Parameters of BCC6A-12V:
Input Parameters:
- Nominal input voltage: AC95V to 280V continuous power supply
- Maximum input voltage: AC90V to 305V continuous power supply
- Input AC frequency: 50Hz/60Hz
- Maximum input current: 2A
- Efficiency: >82%
Output Parameters:
- Output current range: 4-6A, accuracy: ± 2%
- Charging current: 6A
- Maximum output power: 85W
- Minimum output voltage: 7.5V
- No-load output voltage: 13.8V, accuracy: ±1%
Insulation Performance:
- Insulation resistance: Insulation resistance RL≥50MΩ under the condition of input and output, input and casing are both DC500V for 1min.
- Insulation voltage: input and output, input and case are AC1500V 50Hz 1min, leakage current IL≤3.5mA.
Operating Environment:
- Operating Temperature: -30 to 55℃
- Storage Temperature: -40 to 85℃
- Operating Humidity: 10%RH to 95%RH (No Condensation)
Other Parameters:
- Dimension: 143 x 96 x 55cm
- Hole Spacing: 132 x 75mm
- Weight: 0.7kg

Parameters of BCC6A-24V:
Input Parameters:
- Nominal input voltage: AC95V to 280V continuous power supply
- Maximum input voltage: AC90V to 305V continuous power supply
- Input AC frequency: 50Hz/60Hz
- Maximum input current: 2A
- Efficiency: >82%
Output Parameters:
- Output current range: 2-3A, accuracy: ± 2%
- Charging current: 3A
- Maximum output power: 85W
- Minimum output voltage: 7.5V
- No-load output voltage: 27.6V, accuracy: ±1%
Insulation Performance:
- Insulation resistance: Insulation resistance RL≥50MΩ under the condition of input and output, input and casing are both DC500V for 1min.
- Insulation voltage: input and output, input and case are AC1500V 50Hz 1min, leakage current IL≤3.5mA.
Operating Environment:
- Operating Temperature: -30 to 55℃
- Storage Temperature: -40 to 85℃
- Operating Humidity: 10%RH to 95%RH (No Condensation)
Other Parameters:
- Dimension: 143 x 96 x 55cm
- Hole Spacing: 132 x 75mm
- Weight: 0.7kg

Package Included:
- 1 x Genset Intelligent Battery Charger

Note: Optional Types: BCC6A-24V, BCC6A-12V. Please tell us the type you want when purchasing. Thank you!
