XTOOL EZ500 Full-System Diagnostic Tool for Gasoline Vehicles Same as XTool PS80
Description:
EZ500 is a high-end and new style gasoline vehicles diagnostic device developed by XTOOL based on Android system. Its open source Android operating system provides fast boot-up and multitasking. XTOOL EZ500 provides extensive vehicle coverage for most US, Asian and European makes, which makes it the best solution for workshops.
Features:
- Easy registration when EZ500 is connected to WIFI
- One-click software update via WIFI
- Remote access
- Diagnosis reports in PDF file
- Record and playback live data
- 8.0 inch multi-touch screen
- On-board battery
- Extensive vehicle coverage for most US, Asian and European vehicle makes
Specifications:
| Operating System: | Android 4.4.4 |
| Memory: | 1GB RAM,16GB Flash |
| CPU | Quad Core, 1.6 GHz |
| Display | 8.0 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution |
| Sensors: | Gravity Sensor, Light Sensor |
| Input/Output: |
Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USBPort, TF Card Port |
| Battery: | 4000mAh, 7.4V |
| WIFI | WIFI 2.4Ghz |
| Bluetooth | 100 Meters |
| Power Voltage: | 12V |
| Power Consumption: | 29.6W |
| Operating Temperature: | -20 to 50â(-4 to 126â) |
| Humidity: | <90% |
| Dimension: | (L*W*H): 240*177*30mm |

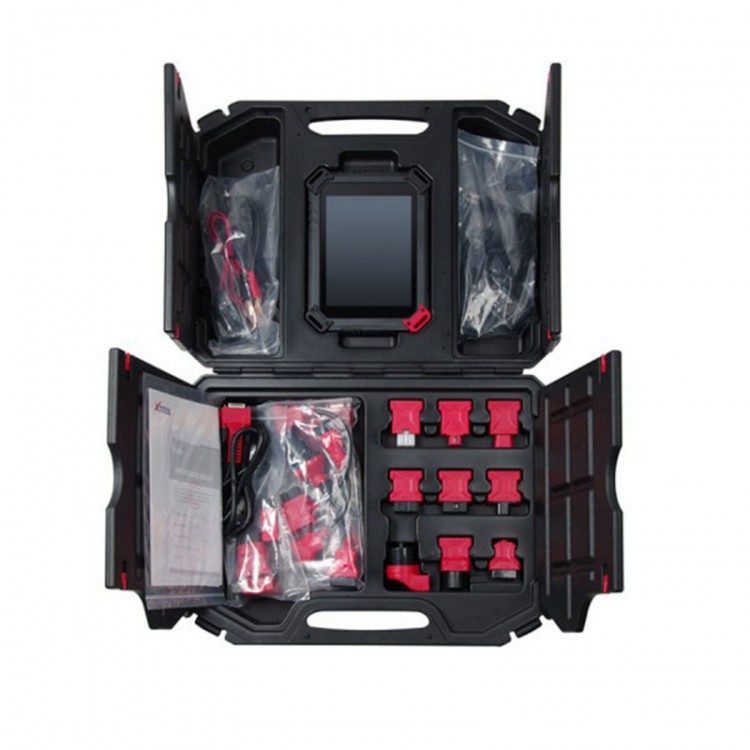

Package included:
- 1x EZ500 Tablet
- 1x Charger for Tabletï¬
- 1x OBD II-16
- 1x HONDA-3
- 1x BMW-20
- 1x TOYOTA-17
- 1x MAZDA-17R
- 1x KIA-20
- 1x NISSAN-14
- 1x GM/DAEWOO-12
- 1x SELFTEST
- 1x UNIVERSAL-3
- 1x SUZUKI-3
- 1x FIAT-3
- 1x CITROEN-2
- 1x AUDI-4
- 1x MITSUBISHI-12+16
- 1x BENZ-38
- 1x BENZ-14
- 1x Main Cable
- 1x battery Cable
- 1x Cigar Lighter Cable
- 1x US Power Adapter
- 1x EU Power Adapter
- 1x Micro USB Cable
- 1x Case
- 1x Stand for EZ500
- 1x Certificate of Quality
- 1x Packing List
- 1x User Manual
- 1x Carton
