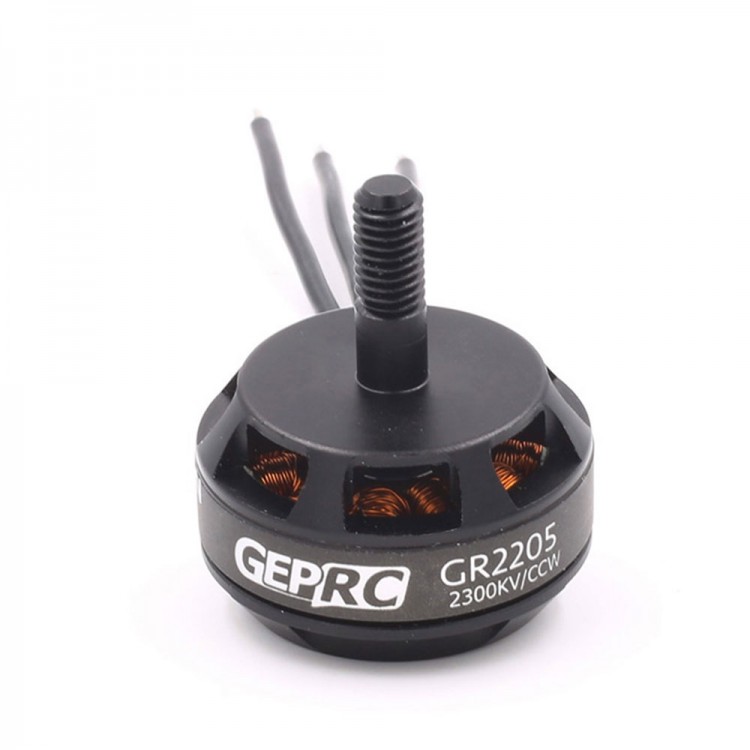

GEP-GR2205 2300KV Brushless Motor CW for FPV Quad Racing Multicopter 12N14P
Description:
Yes, small models. Wheelbase 130mm. We made the small frame into the "X" structure. Focus point concentration, Flexible turning. With 1306 motor and 3 inch propeller, and then a 4S battery, will achieve a perfect flight experience, We try to find a small, 130mm is a very good wheelbase, so as not to choose any one of the motor turbulence disturbance. More importantly, we can be tied to the top of the battery positions, but also can be tied down at the bottom of the machine, the player can choose a variety of. Of course, our team recommends that you travel through the space in a small space, it will be a rare choice.
Specification:
- Model: GR2205
- KV: 2300kv
- Weight: Approx. 29g with wires
- Wire AWG: 20AWG
- Cable length: 70mm
- Stator Diameter: 22mm
- Stator Height: 5mm
- Shaft Diameter: 3mm
- Configuration: 12N14P
- Motor Diameter: 28mm
- Motor Height: 33mm
- Prop Adapter Shaft Thread: M5
- Input voltage: 3S-4S (12.6 - 16.8v)
- KV2300 With DAL5045X3BN Max.thrust:1120g(4S 16.8V)
Package List:
- 1 x CW Motor
