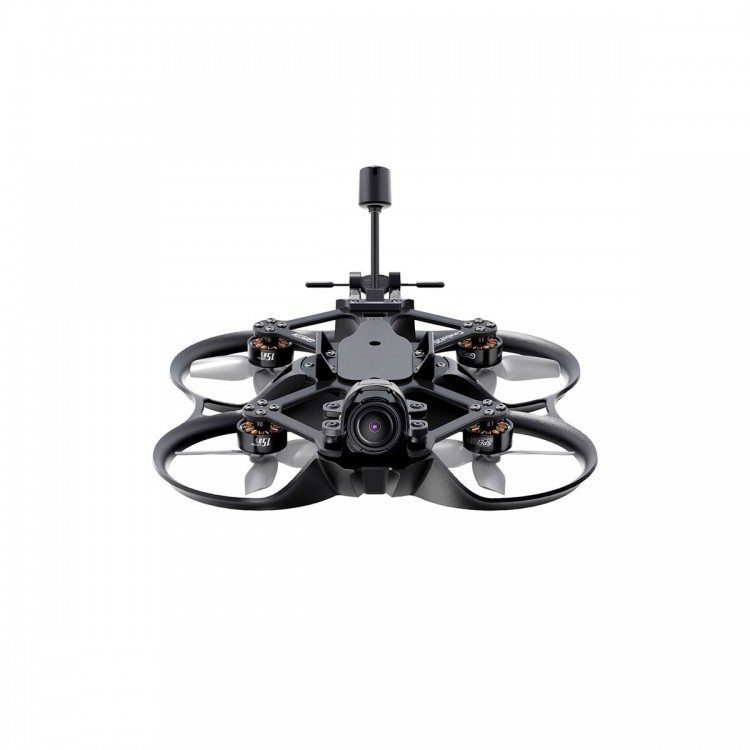

GEPRC Cinebot25 S FPV Racing Drone TBS Nano RX Receiver O3 Air Unit VTX G4 Flight Control for SPEEDX2 1505 4300KV Motor

GEPRC Cinebot25 S FPV Racing Drone TBS Nano RX Receiver O3 Air Unit VTX G4 Flight Control for SPEEDX2 1505 4300KV Motor

Description:
- Cinebot25 is a model that possesses unparalleled controllability and steady aerial footage shooting capability. It will debut with a revolutionary external design and unbelievable performance.

- Cinebot25 comes with two different options for the power version. They are the regular version with the SPEEDX2 1404 motor and the S(sport) version with the SPEEDX2 1505 motor.

- The O3 anti-shake design applies four silicone damping balls to reduce vibration and filter jello, providing high-performance videos. The integrated structure adopts revolutionary modified materials to satisfy the need for rigidity and flexibility, reducing the possibility of damage to a minimum. The fuselage space is highly compatible with various video transmission systems like the O3 Air Unit, and it is equipped with a convenient outlet to make the use of the SD card slot and USB faster and more effective.

- After a host of testing on parameters, Cinebot25 adopts a TAKER G4 45A AIO FC that will breathe new life into the footage-shooting experience.

Features:
- Integrated external design. Equipped with reinforced carbon plate and modified material for one-piece injection molding at the bottom.
- The shock-absorbing protection cover of the camera provides better stability for footage shooting.
- Two power versions are available: the regular one with SPEEDX2 1404 motor and the superior one with SPEEDX2 1505 motor.
- The TYPE-C and BOOT button on the rear makes parameter adjustment convenient.
- Optimized silicone T-shaped antenna fixing component.
- Cinebot25 Lite quadcopter equipped with a LiHV 4S 720mAh battery that weighs less than 250g.
- Equipped with the new TAKER G4 45A AIO, the G4 FC has a stable flight computing capability. An integrated 45A BL32 ESC possesses strong discharge capability that supports a refresh rate of up to 128K PWM.
- The compatibility between O3 VTX and Cabinet makes the installation of memory cards and footage loading easier.
- The customized fixing stand of the receiver simplifies the internal space.
- Diversify the selectivity of the battery with the comprehensive fixing method of aluminum components and straps.

Specification:
- Model: Cinebot25 S O3 Quadcopter
- Frame: GEP-CT25 Black
- Wheelbase: 115mm
- FC: TAKER G4 45A AIO
- MCU: STM32G473CEU6
- Gyro: ICM 42688-P
- FC firmware: TAKERG4AIO
- ESC: BLHeli 32Bit 45A
- Motor: SPEEDX2 1505 4300KV
- Propellers: HQprop DT63mm x4
- Connector: XT30
- VTX: O3 AIR Unit
- Camera: O3 camera
- Antenna: O3 original antenna
- Receiver: PNP(internal VTX receiver) / ELRS2.4G / TBS NanoRX
- Weight: Cinebot25 S O3 (PNP version) 192.75g±1g
- Recommended battery: LiHV 4S 660mAh-720mAh
- Flight Time: 5’-7’30” (The reference time is based on low-speed flight. The actual time depends on individuals’ flying methods.)

Package Included:
- 1 x Cinebot25 S quadcopter
- 1 x HQprop DT63mmx4 propeller (pack)
- 2 x Battery anti-slip pads
- 1 x 15*150mm battery strap
- 1 x 15*180mm battery strap
- 1 x Naked FPV base
- 1 x Reserved screw pack
- 1 x L-shaped screwdriver 1.5mm
- 1 x Frequency paring pointer
- 1 x Damping ball puncher

Note:
- Battery is not included.
