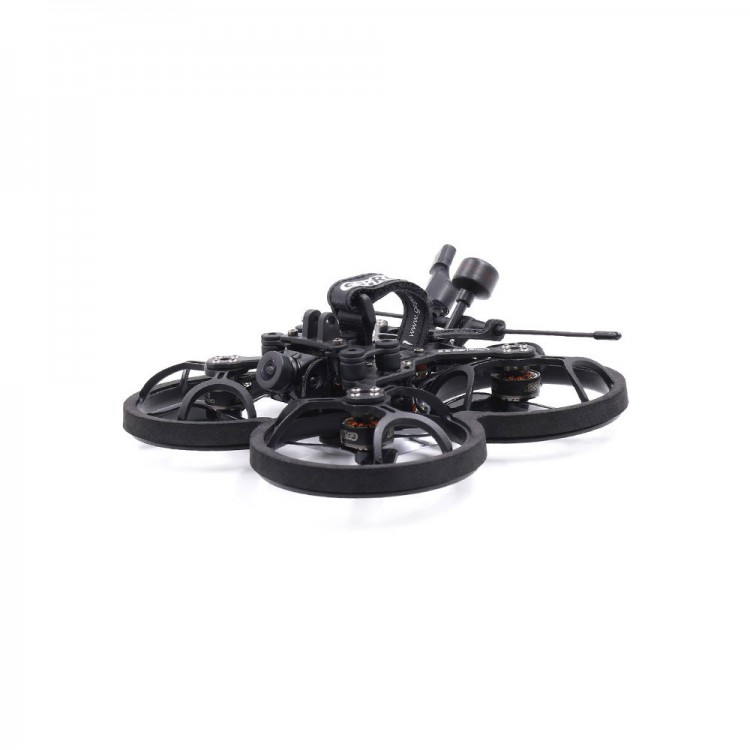

GEPRC CineLog25 HD Nano CineWhoop Drone Kit RC HD FPV Drone Racing Drone w/ Receiver For FrSky R-XSR

GEPRC CineLog25 HD Nano CineWhoop Drone Kit RC HD FPV Drone Racing Drone w/ Receiver For FrSky R-XSR

Description:
CineLog25 is a lightweight model that can be equipped with camera for GOPRO Lite. It adopts the popular reverse design on the market and effectively utilizes the thrust-to-weight ratio of propellers to obtain higher flight efficiency. In the overall layout of the aircraft, we place the HD image transmission for Vista in the center of the aircraft, so that the center of gravity of the aircraft was centered, so that the propeller intake is smoother and the noise is lower. The aircraft camera and damping structure for GOPRO Lite have been redesigned. 3, 4, and 5 damping rings can be adjusted according to the condition of the aircraft to obtain the best damping effect.

The flight system and power use F411-20A-F4 AIO and GR1404 4500KV motors. Stable electronic equipment and advanced frame materials make the aircraft stable and resistant to fall. Customized EVA protective pads around the frame are more resilient and can effectively protect the fuselage when impacted!

CineLog25 is carefully assembled and debugged by the GEPRC team, with a smooth flight experience and superior performance.

Main Parameters:
- Product English name: CineLog
- Brand Name: GEPRC
- Frame: GEP-CL25
- Wheelbase size: 109mm
- Flight control system: GEP-20A-F4
- MCU: STM32F411
- IMU: MPU6000 (SPI)
- OSD: For BetaFlight OSD w/ AT7456E chip
- ESC: For BLheli_S 20A
- Image transmission: For Caddx Vista/5.8G 600mW VTX
- Lens: For Caddx Nebula Pro/Caddx Nebula Micro/Caddx Nano EOS2
- Propellers: GEMFAN D63-3
- Motor: GR1404 4500KV
- CineLog25 HD Nano weight: 125.6g (not including battery)
- CineLog25 Analog weight: 111.1g (not including battery)

Features:
- The new camera damping system can adjust 3, 4, 5 damping circles to use in different environments
- Redesigned inverted motor frame, more sturdy frame, ultra-light carbon plate design, strength increased by 20%
- Increase the air intake of the protection ring, extremely low flying noise
- After installing the camera, the center of gravity balance is centered
- The outer frame is equipped with EVA protective pads to effectively protect the body
- Vista is placed on the bottom, the air inlet pipe is enlarged, the center of gravity is more centered, and the efficiency is increased by 15%
- Fit for SMO 4K Gopro6 lite Gopro8 Lite and other cameras
- Adjustable angle 3D printing mount for Gopro lite
- New GEP-20A-F4 AIO integrated flight controller and ESC system
- GEMFAN D63-3 propellers with higher flight efficiency

Technical Parameters:
- Model: CineLog25 HD Nano
- Propeller: GEMFAN D63-3
- Wheelbase: 109mm
- Antenna: For Momoda 5.8g LHCP
- FPV system: For VISTA+Nebula Nano
- Motor: GR1404 4500KV
- Flight controller system: GEP-20A-F4 AIO

Package Included:
- 1 x FPV Drone
- 4 x D63-3 Propellers (Pair)
- 1 x 3D Printing Mount For GOPRO Lite
- 2 x EVA Landing Pads
- 2 x Non-slip Mats for Battery (Battery is not included)
- 2 x Straps for Battery (Battery is not included)
- 2 x Antenna Sleeves

Note:
- Battery is not included. 4S 450-750mAh LiPO battery is recommended.
