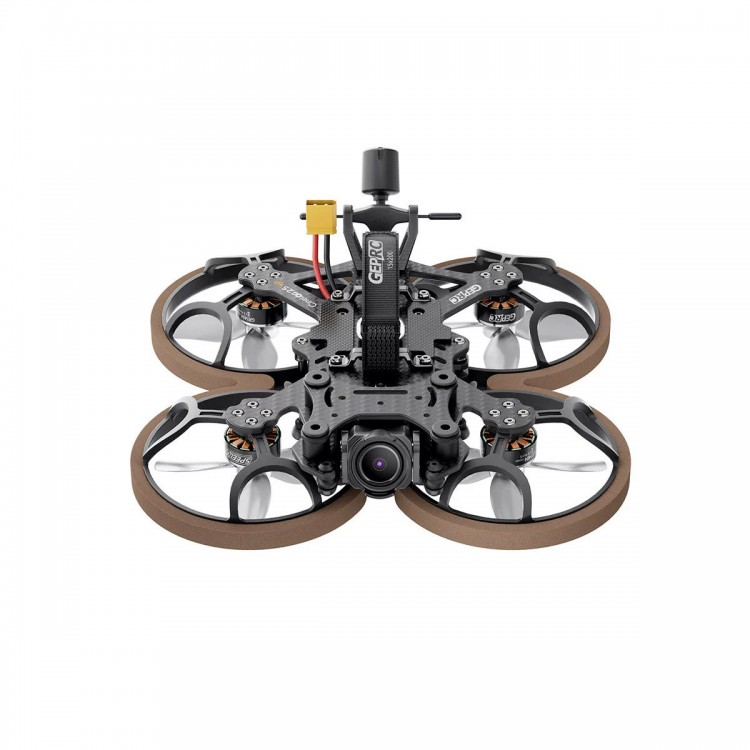

GEPRC Cinelog25 V2 O3 Air Unit for DJI TBSNanoRX Receiver GPS FPV Quadcopter Racing Drone for TAKER G4 35A AIO

GEPRC Cinelog25 V2 O3 Air Unit for DJI TBSNanoRX Receiver GPS FPV Quadcopter Racing Drone for TAKER G4 35A AIO

Summary:
- From progress to evolution, a comprehensive reconstruction of the previous generation of design. Finally we come to the Cinelog25 V2 version.

- This upgrade of Cinelog25 V2 has launched three video transmission versions, the most important of which is the O3 Air Unit video transmission version. Based on the O3 Air Unit's built-in anti-shake requirements for fuselage shock, the Cinelog25 V2 can achieve excellent anti-shake effects by matching the camera damping ball.

- It is redesigned to be fixed with aluminum parts and cable ties, which is convenient for battery replacement. The flight system uses the new TAKER G4 35A AIO with 1404 4500KV motors and HQ DT63mmX4 propellers for excellent flight performance. Install the propeller guard which can effectively prevent people from being injured due to flight mistakes.Equipped with GPS M10 chip, quickly search for satellites.

- Cinelog25 V2 is a 2.5-inch high-definition FPV that integrates indoor and outdoor flying. Developed by the GEPRC team, the flight feels delicate and the experience is good.

Features:
- Add O3 Air Unit image transmission version, with an ultralight weight within 250g, which is fit with FAA flight standards.
- The O3 camera design is independently attached to the shock-absorbing gimbal to solve the camera IMU resonance problems and achieve the best video anti-shake effect.
- Designed aluminum parts with cable ties to facilitate the change of batteries (not included).
- Use the new TAKER G4 35A AIO, has better computing power. ESC over-current protection makes it stable and reliable.
- Design propeller guard, which can effectively prevent people from flight mistakes.
- The fuselage is small and compact, suitable for indoor and outdoor. Mounting Naked GoPro8 (not included) to shoot beautiful videos.

Specification:
- Model: Cinelog25 V2 O3 Air Unit Quadcopter
- Frame: GEP-CL25 V2
- Wheelbase: 114mm
- Gimbal plate: 2.0mm
- Top plate: 2.5mm
- Bottom plate: 2.0mm
- FC system: TAKER G4 35A AIO
- MCU: SMT32G473CEU6
- Gyro: ICM 42688-P
- OSD: Betaflight OSD w/AT7456E
- ESC: 8Bit 35A
- VTX: O3 Air Unit
- Camera: O3 camera
- Antenna: O3 Original antenna
- Motor: SPEEDX 1404 4500KV
- Propeller: HQProp DT63mm x 4
- Receiver: PNP(built-in Link receiver) / GEPRC ELRS24 / TBS Nano RX
- Recommended battery: LiPo 4S 660mah-850mah (not included)
- Flight time: 4 - 6 minutes

Package Included:
- 1 x Set of Cinelog25 V2
