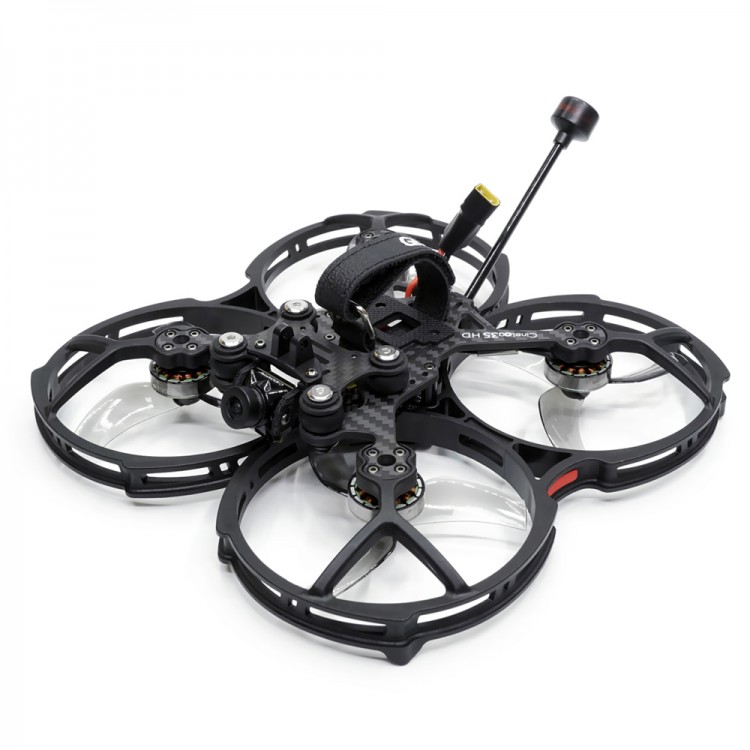

GEPRC CineLog35 HD FPV Quadcopter for Nebula Pro Camera Built-in Receiver for DJI 4S Version

GEPRC CineLog35 HD FPV Quadcopter for Nebula Pro Camera Built-in Receiver for DJI 4S Version

Features:
- 3.5" integrated protection guards ensure flight safety.The new design has significant roles at many aspects such as low noise, vibration and noise reduction, and durable high-strength structural design
- With VISTA HD VTX and camera for Nebula Pro. Transmitted video is stable and clear, with a low latency of 28ms, and the working distance of VTX can reach 4km
- Comes with a 3D printed mount to install camera for GoPro10. And its specific base can be used to install cameras for Naked GoPro Hero 8, Insta 360 GO2, and Caddx Peanut
- Gimbal design with better shock absorption performance and its shooting effect is more stable and clear
- GR2004 motors with D90-3 propellers provide strong power output.
- Independent receiver cabin for convenient and fast binding
- It has been debugged, and the overall flight feel is delicate and flexible
- Flip-chip design: Compared with the traditional full-mounted motor, it has better flight efficiency and improved flight time
- High-performance flight control: extremely high computing speed and 5 sets of UART ports
- Excellent compatibility: For GoPro10, 9 and 8 as well as for Naked GoPro Hero 8, Caddx Peanut camera, and Insta360 Go2

Main Parameters:
- Frame: GEP-CL35
- Wheelbase: 142mm
- Top plate: 2.5mm
- Bottom plate: 2.0mm
- Arm plate: 3.5mm
- FC system: GEP-F722-45A AIO
- MCU: STM32F722
- Gyro: 6-Axis
- OSD: For BetaFlight OSD w/ AT7456E chip
- ESC: BLheli_S 45A
- VTX: Vista
- Camera: For Caddx Nebula Pro
- Propeller: D90-3
- Antenna: GEPRC Momoda 5.8G UFL LHCP 175mm
- Motor: GR2004-1750KV (6S version); GR2004-2550KV (4S version)
- Weight: 236.6g (for Cinelog35 HD VISTA Nebula Pro 4S PNP)
- Optional receiver: PNP (VISTA with built-in receiver for DJI), for Frsky R-XSR, and for TBS Nano RX

Technical Parameters (for CineLog35 HD VISTA Nebula Pro):
- Model: For CineLog35HD VISTA Nebula Pro
- Blade: GemFan D90-3
- Wheelbase: 142mm
- Antenna: Momoda UFL LHCP
- Photo: VISTA and for Nebula Pro
- Motor: GR2004-1750KV (6S version); GR2004-2550KV (4S version)
- Flight control: F722-35A-AIO
- Weight: 236.6g (PNP)
- Size: 203 x 203 x 42mm

Package Included:
- 1 x CineLog35 quadcopter
- 2 x Pairs of D90-3 propellers
- 1 x Battery strap M15x200mm
- 2 x Battery silicone pads
- 2 x Landing pads
- 4 x 15 degree damping rings
- 1 x 3D print mountings combination
- 1 x Screw combination
- 1 x Screwdriver combination
- 1 x Antenna fixed tube

Note:
- Battery is not included. 4S 1100mAh battery with XT60 is recommended for 4S version, and 6S 1100mAh battery is recommended for 6S version.
