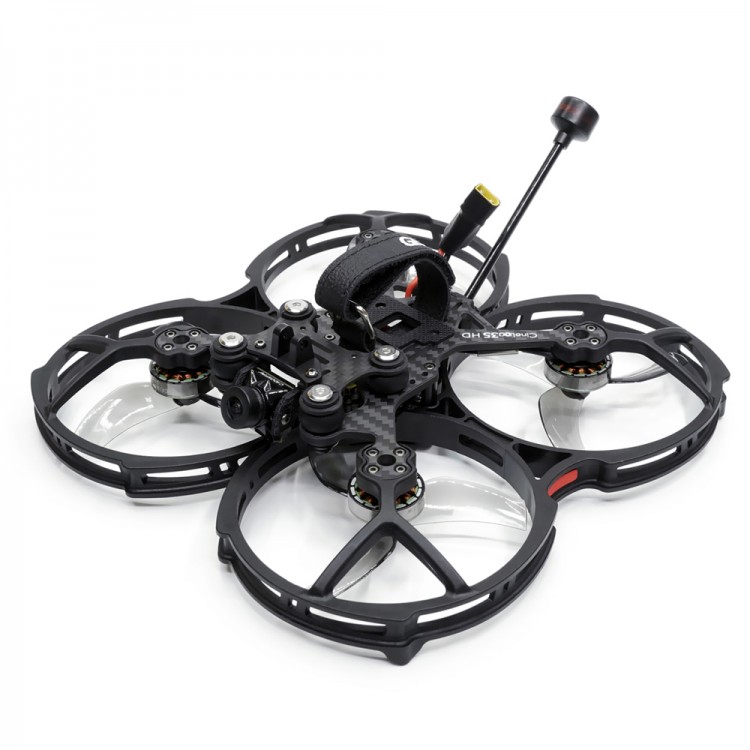

GEPRC CineLog35 HD FPV Racing Drone FPV Quadcopter for Nebula Pro Camera TBS Nano RX 4S Version

GEPRC CineLog35 HD FPV Racing Drone FPV Quadcopter for Nebula Pro Camera TBS Nano RX 4S Version

Features:
- 3.5" integrated protection guards ensure flight safety.The new design has significant roles at many aspects such as low noise, vibration and noise reduction, and durable high-strength structural design
- With VISTA HD VTX and camera for Nebula Pro. Transmitted video is stable and clear, with a low latency of 28ms, and the working distance of VTX can reach 4km
- Comes with a 3D printed mount to install camera for GoPro10. And its specific base can be used to install cameras for Naked GoPro Hero 8, Insta 360 GO2, and Caddx Peanut
- Gimbal design with better shock absorption performance and its shooting effect is more stable and clear
- GR2004 motors with D90-3 propellers provide strong power output.
- Independent receiver cabin for convenient and fast binding
- It has been debugged, and the overall flight feel is delicate and flexible
- Flip-chip design: Compared with the traditional full-mounted motor, it has better flight efficiency and improved flight time
- High-performance flight control: extremely high computing speed and 5 sets of UART ports
- Excellent compatibility: For GoPro10, 9 and 8 as well as for Naked GoPro Hero 8, Caddx Peanut camera, and Insta360 Go2

Main Parameters:
- Frame: GEP-CL35
- Wheelbase: 142mm
- Top plate: 2.5mm
- Bottom plate: 2.0mm
- Arm plate: 3.5mm
- FC system: GEP-F722-45A AIO
- MCU: STM32F722
- Gyro: 6-Axis
- OSD: For BetaFlight OSD w/ AT7456E chip
- ESC: BLheli_S 45A
- VTX: Vista
- Camera: For Caddx Nebula Pro
- Propeller: D90-3
- Antenna: GEPRC Momoda 5.8G UFL LHCP 175mm
- Motor: GR2004-1750KV (6S version); GR2004-2550KV (4S version)
- Optional receiver: PNP (VISTA with built-in receiver for DJI), for Frsky R-XSR, and for TBS Nano RX

Technical Parameters (for CineLog35 HD VISTA Nebula Pro):
- Model: For CineLog35HD VISTA Nebula Pro
- Blade: GemFan D90-3
- Wheelbase: 142mm
- Antenna: Momoda UFL LHCP
- Photo: VISTA and for Nebula Pro
- Motor: GR2004-1750KV (6S version); GR2004-2550KV (4S version)
- Flight control: F722-35A-AIO
- Size: 203 x 203 x 42mm

Package Included:
- 1 x CineLog35 quadcopter
- 2 x Pairs of D90-3 propellers
- 1 x Battery strap M15x200mm
- 2 x Battery silicone pads
- 2 x Landing pads
- 4 x 15 degree damping rings
- 1 x 3D print mountings combination
- 1 x Screw combination
- 1 x Screwdriver combination
- 1 x Antenna fixed tube

Note:
- Battery is not included. 4S 1100mAh battery with XT60 is recommended for 4S version, and 6S 1100mAh battery is recommended for 6S version.
