Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $454.31 | $445.04 | $431.13 | $412.59 | Contact US |

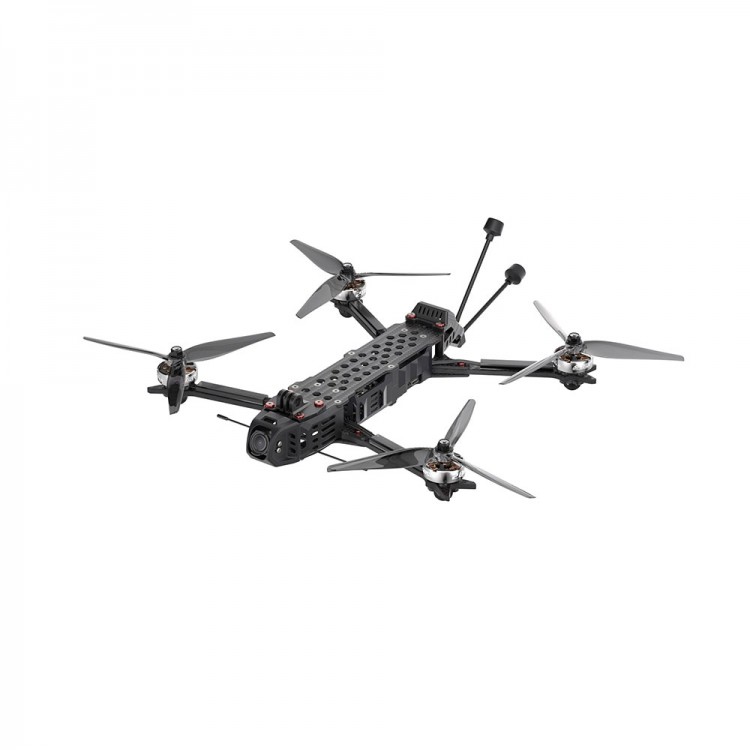

GEPRC Crocodile75 V3 FPV Racing Drone Long Range Analog RAD 5.8G 1.6W PNP RX FPV Quadcopter SPEEDX2 2806.5 1350KV
Description:
- The appearance of the Crocodile75 V3 adopts a novel design, the overall structure is strengthened to effectively reduce the vibration of the fuselage and make the flight experience smoother and more stable.
- The Crocodile75 V3 is equipped with an O3 Air Unit with additional special cooling components for an effective cooling environment.
- The battery plug is integrated with the fuselage for convenient application. The power is upgraded with TAKER 32-bit_128K 60A ESC and 2806.5 1350KV motor, sufficient power. In terms of flight energy consumption, save power and efficiency.
- The overall performance of Crocodile75 V3 has been carefully and strictly tuned to bring the most passionate flying experience for pilots.
Features:
- Adopt a novel appearance design, strengthen the fuselage structure, and reduce the impact of fuselage vibration on the gyroscope sampling data.
- Equipped with SPEEDX2 2806.5 1350KV motor and HQ7.5x3.7x3 with sufficient power and high efficiency.
- Upgrade the ESC to TAKER 32-bit_128K 60A.
- Add protective side panels to effectively protect the electronic control system from instability caused by sand and dust pollution
- The integrated design of the battery plug and the body simplifies the power-on operation, simplicity and beauty.
- The Crocodile75 V3 has a lengthier fuselage, can be mounted with Lipo 6S 3300mah-4500mah or Lion 6S 6000mah battery (not included) for flight.
- Perfect match for 7-inch or 7.5-inch propellers.
Specification:
- Model: Crocodile75 V3 Analog
- Frame: GEP-LC75V3
- Wheelbase: 342mm
- Top plate: 2.5mm
- Bottom plate: 3.0mm
- Arm plate: 6.0mm
- Splint plate: 2.5mm
- FC: SPAN F722-BT-HD V2
- ESC: TAKER 32Bit_128K 60A
- MCU:STM32F722RET6
- Gyro: ICM 42688-P
- OSD: Betaflight OSD w/AT7456E chip
- VTX: GEPRC RAD 5.8G 1.6W
- Camera: Caddx Ratel2
- Antenna: Momoda 5.8G RHCP SMA
- Motor: SPEEDX2 2806.5 1350KV
- Propeller: HQProp7.5x3.7x3
- Weight: 597.5g
- Receiver: PNP / TBS Nano RX / GEPRC ELRS24 / GEPRC ELRS 915
- Recommended battery: Lipo 6S 2600mah-4200mah / Lion 6S 6000mah (not included)
- Flight time: 12-30 min
Package Included:
- 1 x Crocodile75 V3 Analog
- 4 x HQProp7.5x3.7x3
- 2 x M20x250mm battery strap
- 2 x Battery Silicone Pads
- 1 x Set of screws
- 1 x L-shaped screwdriver (1.5mm)
- 1 x L-shaped screwdriver (2mm)
- 1 x L-shaped screwdriver (3mm)
- 1 x M5 wrench
- 1 x Keychain
- 1 x GP Camera Base
Note:
- Battery is not included.
