• GEPRC GEP-BLS50A-4IN1 ESC Plug and Play STM32F405 Chip ICM42688-P Gyroscope for DJI Air Unit

GEPRC GEP-BLS50A-4IN1 ESC Plug and Play STM32F405 Chip ICM42688-P Gyroscope for DJI Air Unit

Availability: In stock, usually dispatched in 1 business day

  • Price:$37.91
  • Price in reward points: 379 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $37.15 $36.39 $35.26 $33.74 Contact US
Quantity:

GEPRC GEP-BLS50A-4IN1 ESC Plug and Play STM32F405 Chip ICM42688-P Gyroscope for DJI Air Unit

Description:

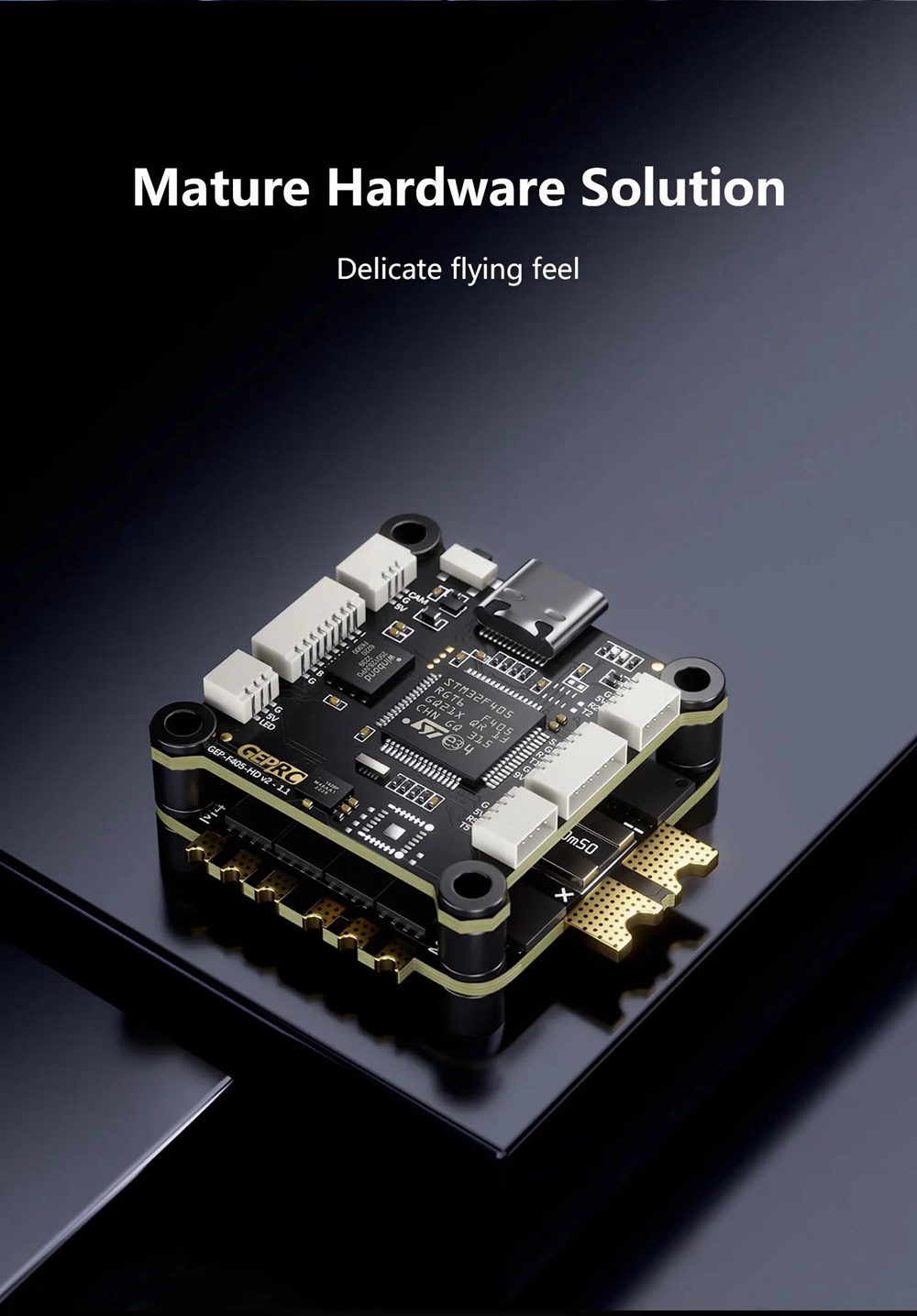

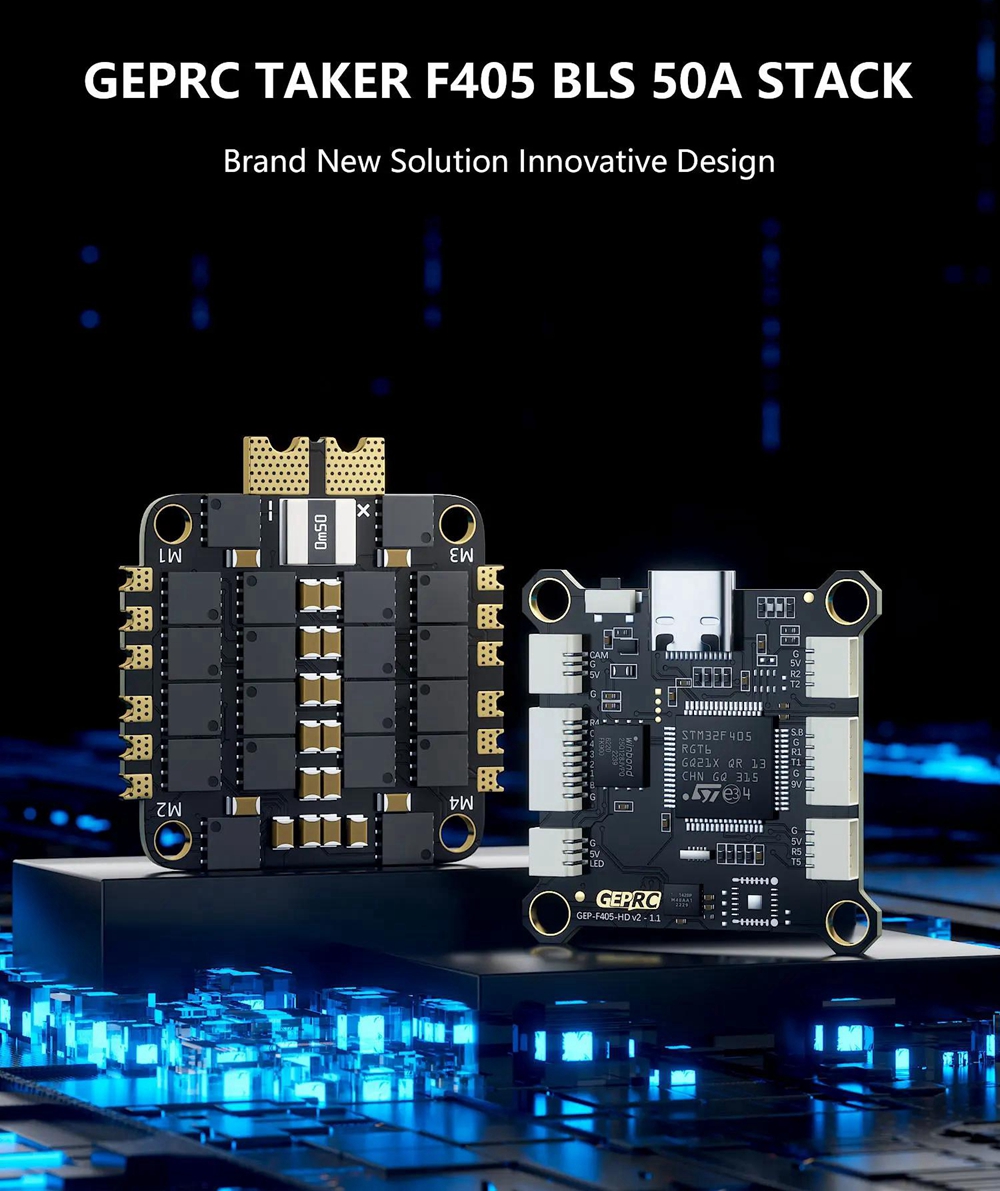

- GEPRC TAKER F405 BLS 50A is a plug and play stack system specifically designed for DJI Air Unit. Using STM32F405 chip, 1CM42688-P gyroscope, integrated 16M black box, combined with GEP-BL S50A-4 IN1 electric adjustment, provides a more delicate tactile experience. The GEPRC TAKER F405 BLS 50A Flying Tower supports direct insertion into the DJI Air Unit, eliminating the hassle of welding. Upgrading the USB interface of Type-C greatly improves the lifespan of the socket and reduces the risk of poor contact. 9V 2.5A+5V 3A dual independent BEC, with more stable power supply for external equipment.

Features:
- Use mainstream STM32F405 main control

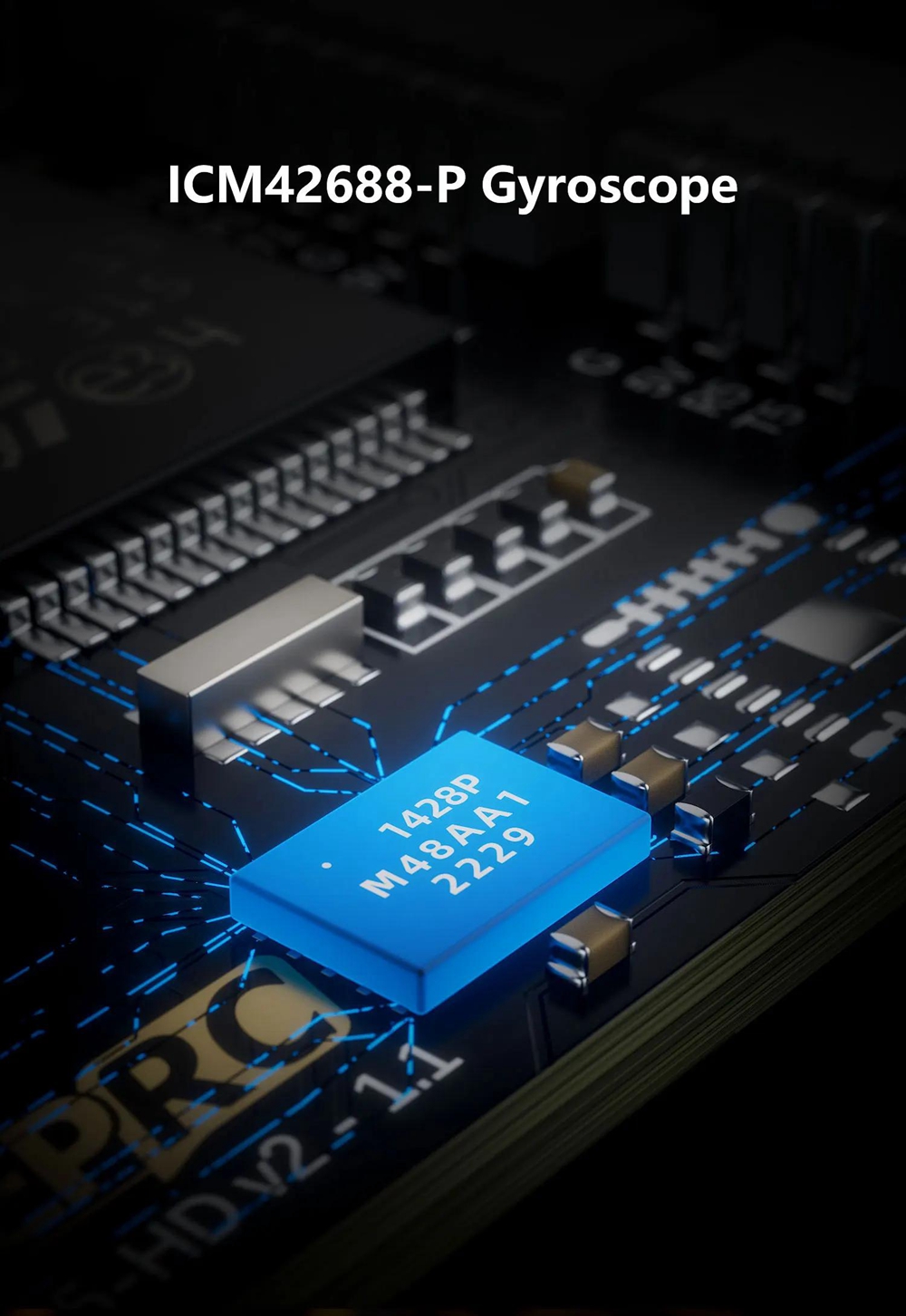

- Equipped with the latest 42688-P gyroscope

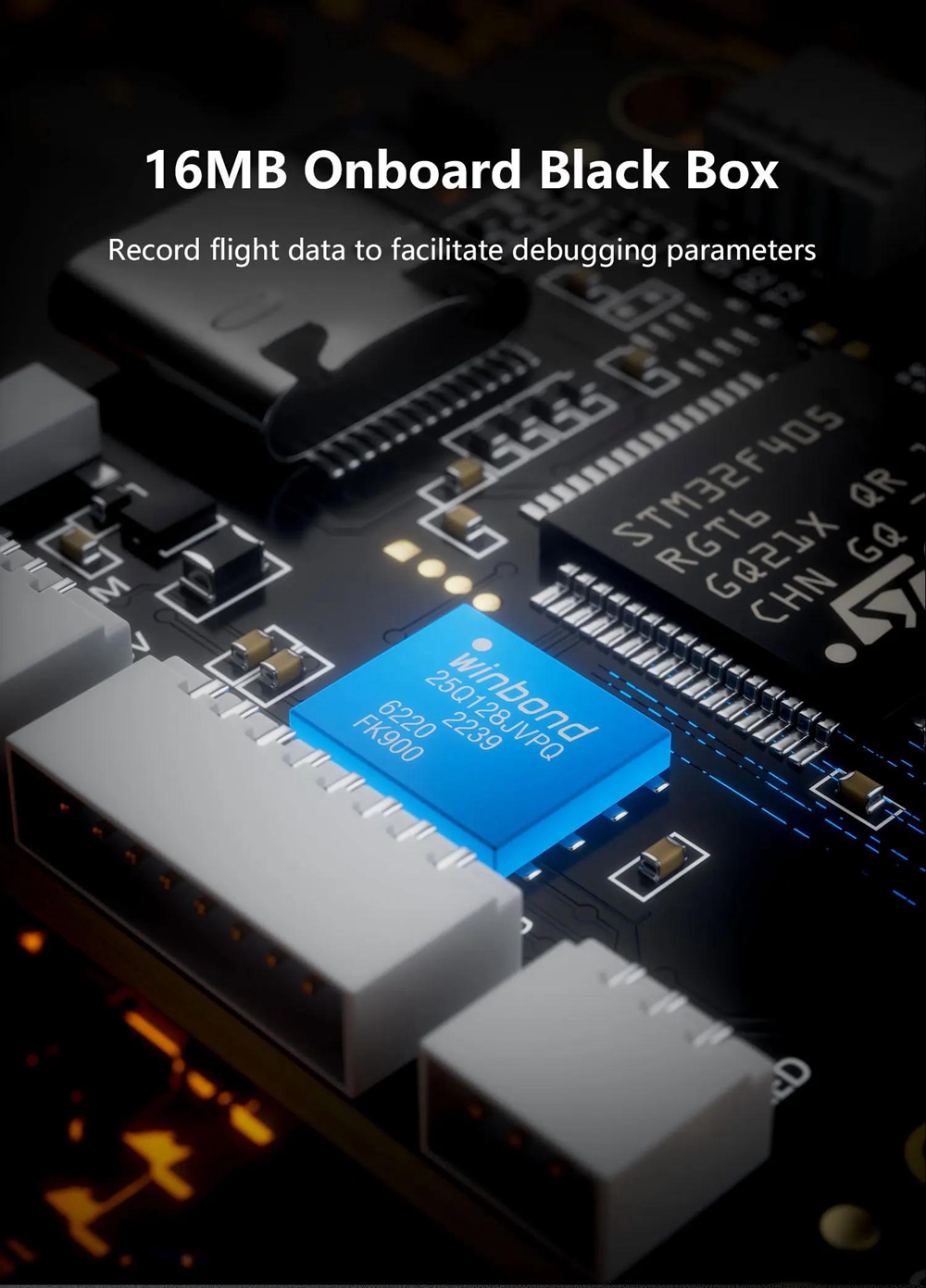

- 16M black box storage
- Integrated LC filtering
- Upgrade Type-C USB interface

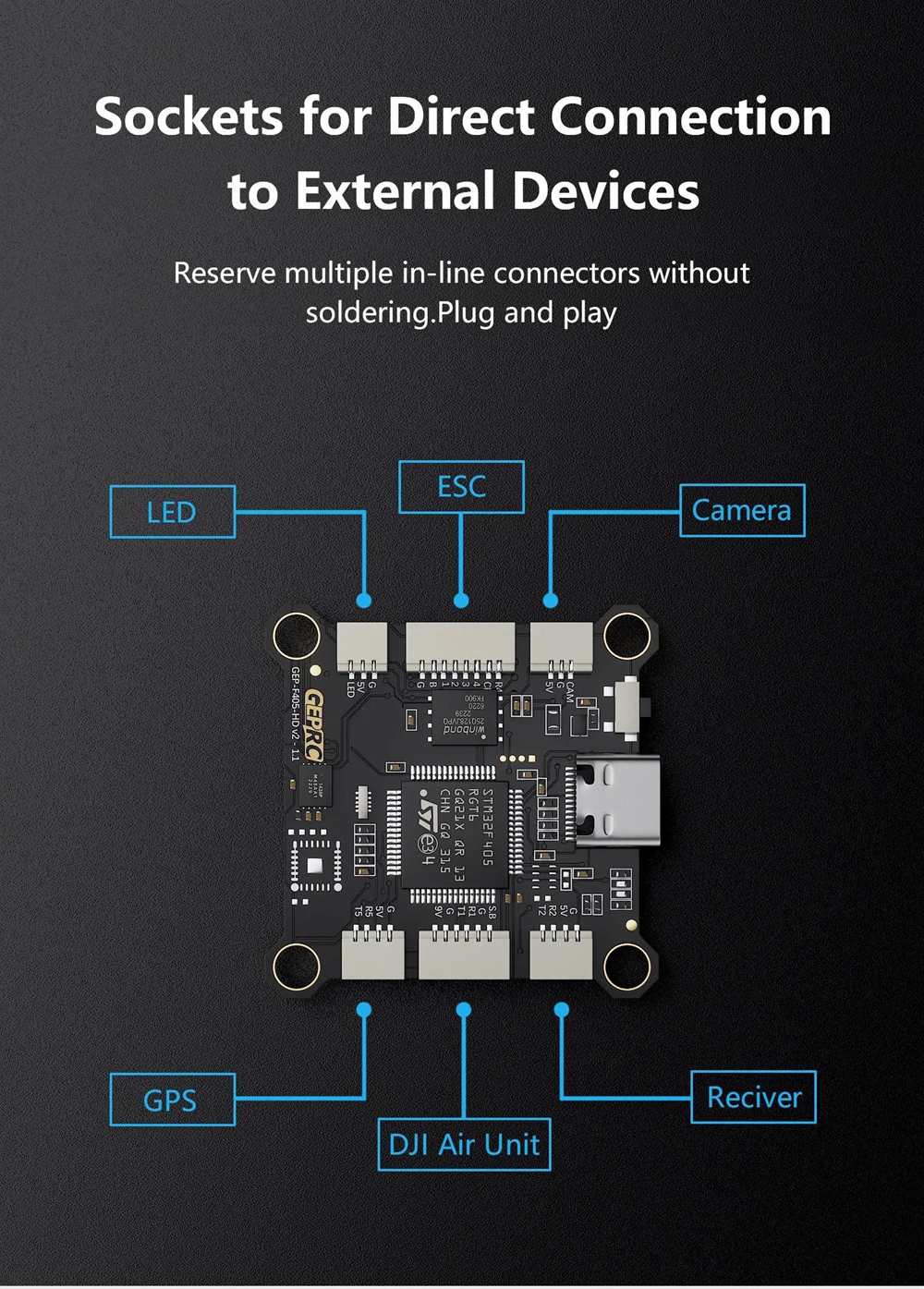

- Direct insertion into the sky end of DJI
- Paired with GEP-BLS50A-4IN1 electric adjustment, achieving a silky and smooth flying feel
- A simple and reasonable installation method, the shock-absorbing ring can ensure the stable operation of the gyroscope
- 9V 2.5A+5V 3A dual independent BEC

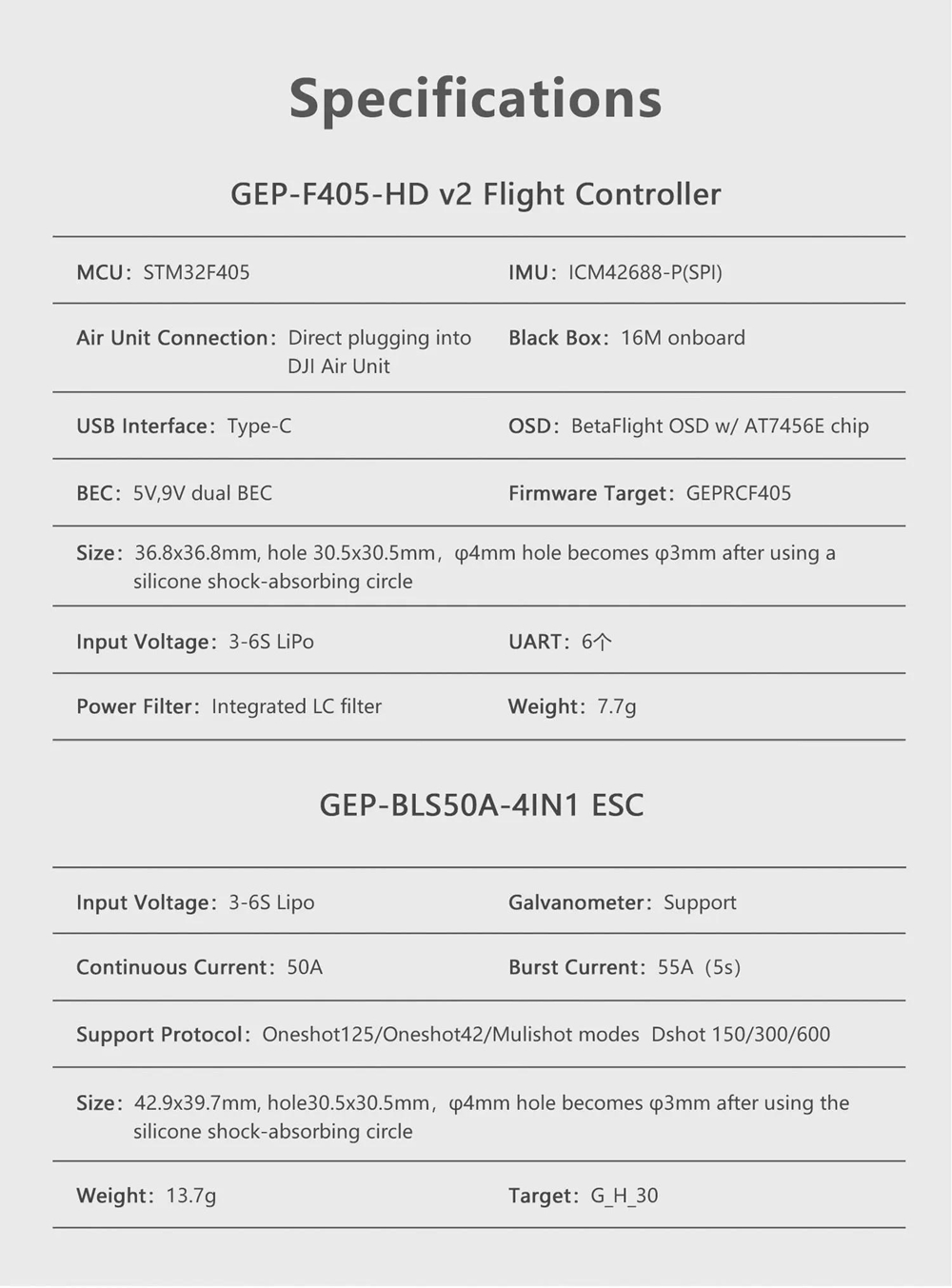

Specification:
GEP-F405-HD v2 Flight Controller:
- MCU: STM32F405
- IMU: ICM42688-P(SPI)
- Air Unit Connection: Direct plugging into D JI Air Unit
- Black Box: 16M onboard
- USB Connector: Type-C
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC: 5V,9V dual BEC
- Firmware Target: GEPRCF405
- Size: 36.8x36.8mm, hole 30.5x30.5mm,φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
- Input Voltage: 3-6S LiPo
- UART: 6
- Power Filter: Integrated LC filter
- Weight: 7.7g

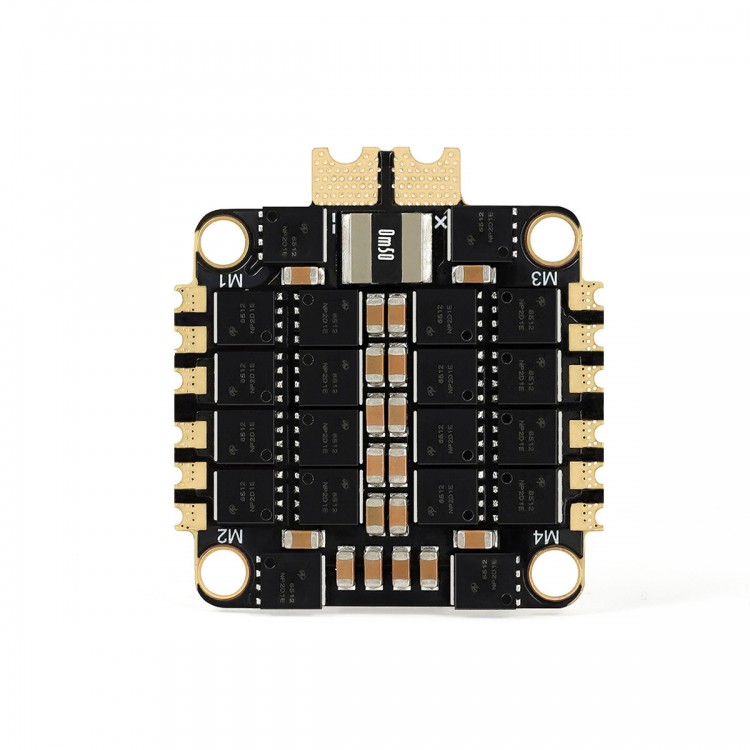

GEP-BLS50A-4IN1 ESC:
- Input Voltage: 3-6S Lipo
- Galvanometer: Support
- Continuous Current: 50A
- Burst Current: 55A(5s)
- Support Protocol: Oneshot125/Oneshot42/Mulishot modes/Dshot 150/300/600
- Size: 42.9 x 39.7mm, hole space 30.5 x 30.5mm,φ4mm hole becomes φ3mm after using the silicone shock-absorbing circle.
- Weight: 13.7g
- Target: G_H_30

Package Included:
- 1 x ESC
- 1 x Pack of Accessories

Note:
- Battery is not included.
