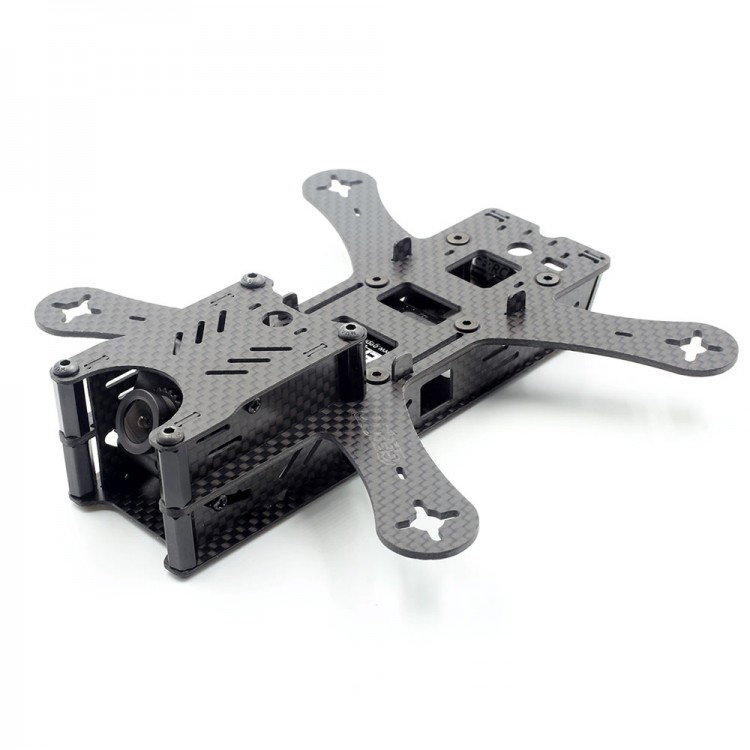

GEPRC GEP150 150mm 4-Axis 3K Carbon Fiber Racing Quadcopter Frame for FPV

GEPRC GEP150 150mm 4-Axis 3K Carbon Fiber Racing Quadcopter Frame for FPV

Description:
- Brand name: GEPRC
- Item name: GEP150
- Diagonal Wheelbase: 150mm
- Main board thickness: 2mm
- Other bord thickness: 1mm
- Size: 145x145mm
- Carbon weight: 58g
- LED board: WS28128

Features:
- 3K high strength carbon board to ensure that the framework is strong.
- Wheelbase 150mm, more suitable for a small range of space through.
- Battery positions and motor pull plane at the same level, fo,cus on the fo,cus, so that the flight is more stable, more smooth rolling.
- Flat plane, small wind resistance.
- The structure is strong, beautiful, light weight (58g)
- Lens adjustable, adjustable 45 degree.
- The camera comes with fixed lens, CCD lens fixed for the market 95%.
The distribution of WS28128 LED 6 high brightness lamp plate, ensure flight stimulation (need to support flight control)
- With a plate (PDB), BEC (5/12v 3A)
- 5.8G Wireless AV Transmitter installation modes, can be installed in the nose or tail.

Recommanded parts (Package not included):
- Flight Controller: F3 / Naze32 / CC3D
- Acro Afro Mini Naze32 10DOF
- OpenPilot Mini NAZE32 6DOF
- 33X16.5mm FLIP32 MINI NAZE32
- Mini NAZE32 Racing F3 6 DOF/10 DOF
- Diatone Naze32 Mini Flight Controller
- EMAX mini Skyline32 Naze32
- OpenPilot Mini CC3D Revolution
- OpenPilot CC3D Atom Mini CC3D
- Openpilot MINI CC3D NA,NO Atom
- Motor: 1104 / 1306 / 1806
- Eachine 1104 and DYS 1104
- Eachine 1306 and DYS 1306 and RW.RC mini 1306
- Eachine 1806 motor
- ESC: 10~20A
- EMAX ESC
- DYS ESC
- Propeller: 3 inch
- Eachine 3020 propeller
- Gemfan 3545 propeller
- DYS 3030 propeller
- Diatone 3045 propeller
- Battery: 3S 800mAh ~ 4S 750mAh

Package Included:
- 1 x GEP150 Frame Kit
