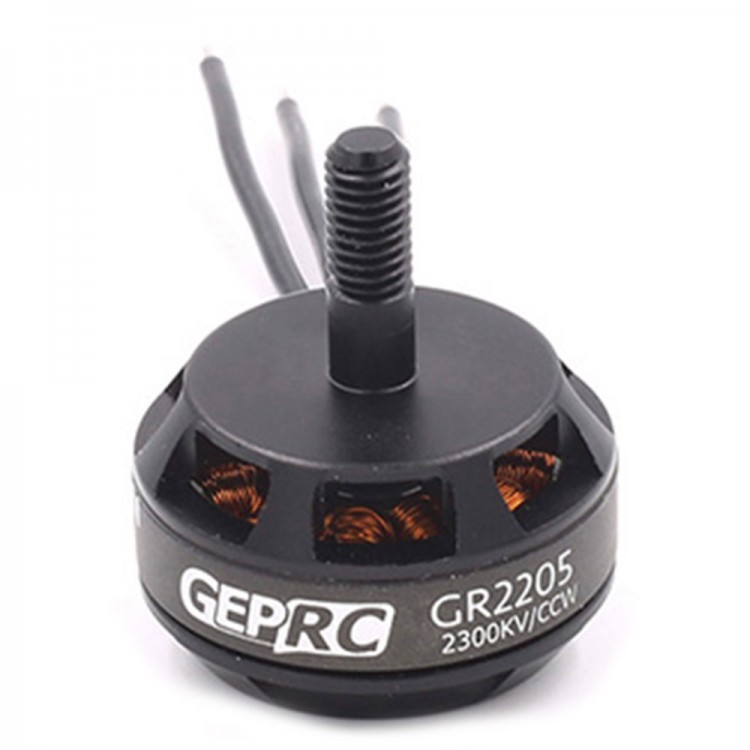

GEPRC GR2205 2300KV Racer Edition Brushless Motor CCW for FPV RC Quadcopter Multicopter
Description:
GEP-GR2205 2300kv Racer Edition Motor, We studied a lot of flying habits. Motor most of the accelerator will be in the range of 60-90%, So the power of the motor is very important, So we use magnetic N45SH label, SH model with high magnetic loss characteristics, can let the motor to ensure high-speed running off magnetic, protection of electric, magnetic. The appearance design of durable structure, very suitable for racing requirements. Freestyle flight effect also can output power be not of the common sort, make the plane landed at high speed, flexible.
Specifications:
- Model: GR2205
- KV: 2300kv
- Weight: Approx. 29g with wires
- Wire AWG: 20AWG
- Cable length: 70mm
- Stator Diameter: 22mm
- Stator Height: 5mm
- Shaft Diameter: 3mm
- Configuration: 12N14P
- Motor Diameter: 28mm
- Motor Height: 33mm
- Prop Adapter Shaft Thread: M5
- Input voltage: 3S-4S (12.6 - 16.8v)
- KV2300 With DAL5045X3BN Max.thrust:1135g(4S 16.8V)
Features:
- The best effect and the best thrust of the accelerator is about 70%.
- Using N45SH magnet, both to ensure that the torque, not to lose magnetism
- 3.5 mm aluminum flange lock nut, very light
- Japan NMB bearings to ensure excellent operation of the motor
- M3 *6 mm YFS screw
- High temperature line 180℃
Package List:
- 1 x Motor CCW
